Specifications
raymond mill for cement powder
1.High efficiency raymond mill
2.Lower energy raymond mill
3.particle output

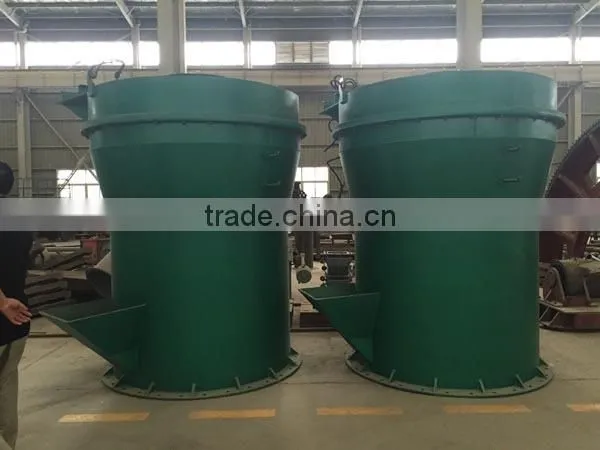

High processing capacity Raymond mill, stone/barite raymond mill, raymond mill manufacturer with advance dust removal system
General introduction
Raymond mill widely used in grinding equipment of mine, cement, chemical industry, is one of the important equipment of non metallic mineral deep procession. Since its strong stability,adaptability and high cost performance it has popularized in non metallic mineral processing field. Applied in grinding various non plastic ore, mineral soil,metallic oxide, chemical composition etc. which Mohs hardness not more than grade 7,humidity less than 6% non flammable and combustible material such as speckstone, dinas rock, graphite, fluorite, magnesia stone, bentonite, kaoline, pottery clay etc.
Working principle of raymond mill
The Raymond mill can crush the large-size materials to the required feeding size and then will deliver the materials to the storehouse by the dustpan lift, then to the crushing cavity of the main machine body by the electromagnetism vibrating feeder. And the materials which have entered the grinding cavity will receive the grinding between the grinding roller and ring, thus producing the powder, which will be brought to the analyzer to grade by the wind machine. And the required fine powder will enter the large cyclone collector by the air stream to receive the separation and collection. And at last, the final products will be discharged out by the tripper. And during the working process, the shovel system has played a key important role, which is positioned on the lower end of the grinding roller. And the shovel and roller will shovel up the materials to the space between the grinding rollers and form the pad layer which will receive the extruding force produced by the rotating of the rollers. And then the materials will be crushed, thus achieving the aim of the powder making.
Advantage of Raymond Mill
1. The whole machine for three-dimensional structure, cover an area of an area small, systemic strong, from the rough machining of raw materials to delivery to the flour and final packaging, form an independent production system.
2. The finished product FenZi uniform fineness, sieve rate 99%, this is difficult for other grinding mill .
3. The machine transmission device enclosed gear box and pulley, transmission smooth, reliable operation.
4. Raymond mill important parts adopt high quality steel, wear-resistant parts adopt high-quality wear-resistant material, high wear-resistant high performance, reliable operation. Host shovel head when operating in constant contact with the material, so the shovel head is composed of upper and lower two parts, the remove connection bolts can exchange after wear and tear.
5. Electrical system adopts centralized control, milling workshop basic can achieve unattended operation, and convenient maintenance.
6. Small dust pollution, low noise.
7. The electromagnetic vibration feeder feeding uniform, easy to adjust, small volume, light weight, fuel efficient energy saving, maintenance is convenient.
Raymond mill for cement powder parameters
| Size | Roller | Ring | Max.granulation of feeding materials(mm) | Fineness of product(mm) | Horsepower(kw) | ||||
| No. | Dia.(mm) | Height Dia.(mm) | Inside Dia.(mm) | Height Dia.(mm) | Crusher | Pulverizer | |||
| 3R 2714 | 3 | 270 | 140 | 830 | 140 | 130 | 15 | 0.044~0.125 (325mesh-125mesh) | ≤22 |
| 4R 3216 | 4 | 320 | 160 | 970 | 160 | 210 | 20 | ≤37 | |
| 5R 4119 | 5 | 410 | 190 | 1270 | 190 | 210 | 20 | ≤75 | |
| 6R 5113 | 6 | 510 | 230 | 1670 | 230 | 350 | 60 | ≤185 | |
List of power used on attachments of raymond mill for limestone
| Model | Mill | Blower | Jaw Crusher | Separator | Bucket | Electro-magnetic Vibrating Feeder |
| 3R 2714 | 22 | 15 | 5.5 | 4 | 3 | 0.06 |
| 4R 3216 | 37 | 30 | 15 | 5.5 | 3 | 0.2 |
| 5R 4119 | 75 | 55 | 15 | 7.5 | 11 | 0.2 |
| 6R 5113 | 185 | 160 | 30 | 15 | 11 | 0.45 |
Standard capacity of raymond mill for limestone
| Model | Mhos Scale Number | ||||
| >2~3 | >3~4 | >4~5 | >5~6 | >6~7 | |
| Capacity(t/h) | |||||
| 3R 2714 | 1.3~1.6 | 1~1.3 | 0.7~1 | 0.5~0.7 | 0.3~0.5 |
| 4R 3216 | 2.6~3.2 | 2~2.6 | 1.6~2 | 1.2~1.6 | 1~1.2 |
| 5R 4119 | 5~6.3 | 4~5 | 3.2~4 | 2.5~3.2 | 2~2.5 |
| 6R 5113 | 12.5~16 | 10~12.5 | 8~10 | 6.25~8 |
5~6.25
|
Certification
1. We are Factory ( NOT Dealer )
All machineries come from Huahong Machinery Co., Ltd are made by ourselves manufacturing ,
with lower price, good quality high technology and assured full after service. So please buy machine
from factory.
2. We can use the ship transport all kinds of mechanical equipment .
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle
East,Africa,Oceania and Europe Etc,either by container or RoRo/bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia,Kazakhstan,Uzbekistan etc,we can ship
construction machinery by road or railway.
3. Urgent needs of accessories ,we can ship it by international courier service,such as DHL,TNT,UPS,
OR FEDEX.
