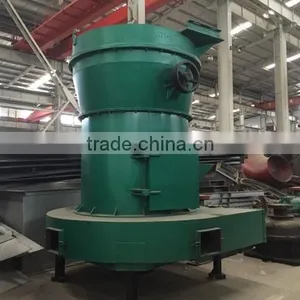

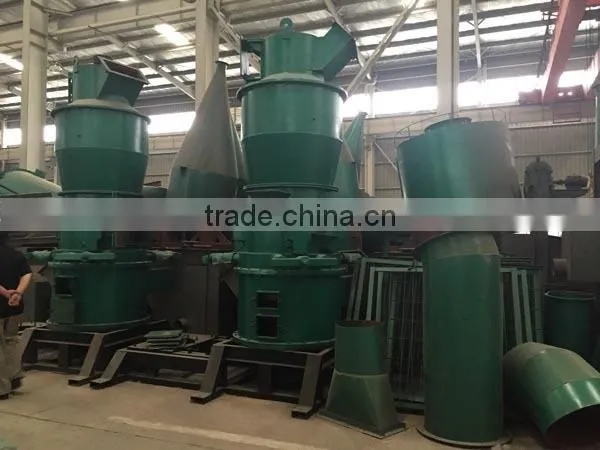

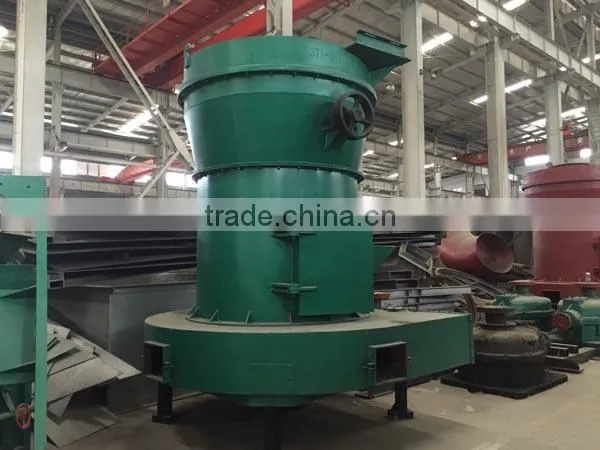

Raymond mill,Raymond grinding mill,Raymond roller mill plant

Specifications

raymond mill for cement powder

1.High efficiency raymond mill

2.Lower energy raymond mill

3.particle output

  Raymond mill,Raymond grinding mill,Raymond roller mill plant

General introduction

Raymond mill widely used in grinding equipment of mine, cement, chemical industry, is one of the important equipment of non metallic mineral deep procession. Since its strong stability,adaptability and high cost performance it has popularized in non metallic mineral processing field. Applied in grinding various non plastic ore, mineral soil,metallic oxide, chemical composition etc. which Mohs hardness not more than grade 7,humidity less than 6% non flammable and combustible material such as speckstone, dinas rock, graphite, fluorite, magnesia stone, bentonite, kaoline, pottery clay etc.

Working principle of raymond mill for cement powder

In the mainframe of raymond mill, there are strong springs with pressure as high as1000-1500 kg equipped on the roller suspender. When Raymond Mill works, the roller rotates around the principal axis, and clings to ring under the effect of the strong spring and eccentricity. Its press is 1.2 times of Raymond mill under the same press condition, so the production is largely increased. When the materials are sent into the grinding chamber, they are brought to the space between the roller and ring and get grinded. Then the powder grinded will be blown into separator. The fine powder after departed with the air is discharged through the outlet as final product. The large-sized powder falls back for regrinding. The air will be back to the blower for repetition of the above process. The left air wil come to the bag filter to get cleaned. When the wear and tear between roller and the ring reaches certain degree, adjust the length of the strong spring,, so to keep the invariable pressure between the roller and the ring, to make sure the stable production and the fineness.

Raymond mill for cement powder parameters

List of power used on attachments of raymond mill for limestone

Standard capacity of raymond mill for limestone

Certification
