Help CenterHigh Efficiency Liner Vibrating Screen for Recycling Industry
Related Products
-
Hot Selling After World Cup 2014 Small Mining Vibrating Feeder China ManufactureUS$ 1,000 - 10,000MOQ: 1 Set -
Sand Mining Linear Vibrating Sieve MachineUS$ 999 - 10,000MOQ: 1 Set
-
Vibrating Sieve, Sand Sieve Machine---huahongUS$ 999 - 10,000MOQ: 1 Set
-
CE, ISO, Zhengzhou Huahong Linear CE Hot Vibrating FeederUS$ 999 - 60,000MOQ: 1 Set
-
Hot-selling High Efficiency CE, ISO,Huahong Linear Vibratory FeederUS$ 999 - 60,000MOQ: 1 Set
Specifications
1.long screen linerrect to screen all kinds of specification products
3.reliable structure
nvenient maintenance
Introduce of linear vibrating screen
It is used to select and classify powder and granular materials, and is widely used in plastics, abrasives, chemicals, medicine, building materials, food, carbon, fertilizer and other industries.

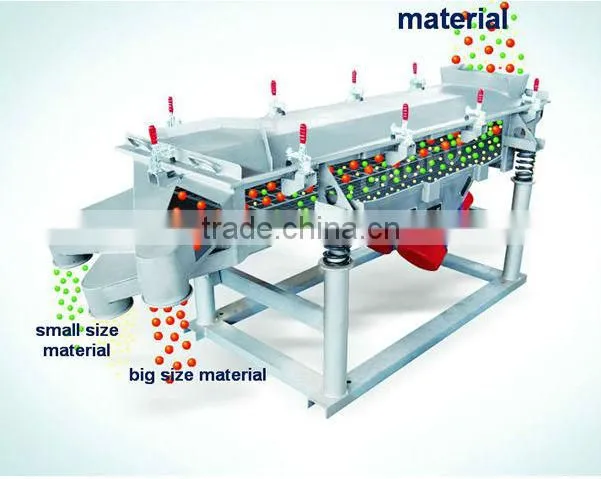

The principle of liner vibrating screen

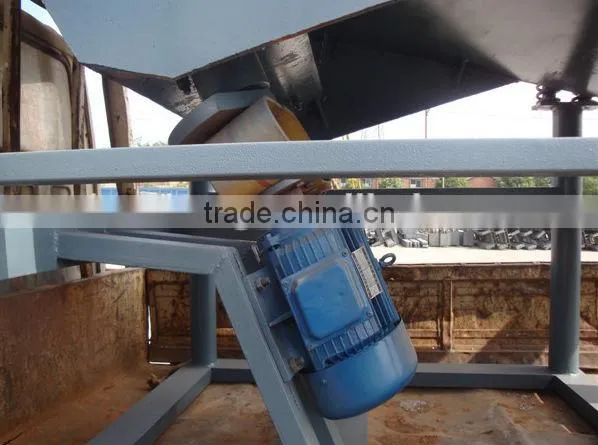

Two vibration motors installed on the equipment which work in simultaneously and reverse rotation. The screen box supported by the four springs produce reciprocating linear motion under the vibration force generated by the motors. When the the vertical component of the vibration acceleration N is greater than acceleration due to gravity g, material in the tank was thrown up, press forward to jump along parabolic path. Each vibration of the tank, the material would be thrown up once. In the process of encounter with the screen, the material which is smaller than screen mesh can go through it, so as to achieve classification purpose.
The features of liner vibrating screen
1. Good tightness, little dust spills.
2. Less energy consumption, low noise and long life screen.
3. Screening of high precision, large capacity, simple structure.
4. Completely closed structure, auto-nesting, more suitable for pipelining.
5. Sieve body parts are made of rolling welded steel plate and profiles (part of ligand for the bolt connection), so the overall stiffness is good, solid and reliable.
The techinical parameters of liner vibrating screen
| Model | ZS612 | ZS618 | ZS1030 | ZS1230 | ZS1535 | ZS1845 |
| Screen size(mm) | 600x1200 | 600x1800 | 1000x3000 | 1200x3000 | 1500x3500 | 1800x4500 |
| Material size(mm) | 0.074-60 | 0.074-60 | 0.074-60 | 0.074-60 | 0.074-60 | 0.074-60 |
| Screen inclination (º) | 1-7 | 1-7 | 1-7 | 1-7 | 1-7 | 1-7 |
| Layers | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 | 1-4 |
| Motor power(kw) | 2x0.37 | 2x0.37 | 2x0.75 | 2x1.1 | 2x1.5 | 2x2.2 |
Our company is a large industrial machinery manufacturers in China.which is focus on mining machinery, complete sets of processing equipment, building materials equipment of rotary kiln. Our company has the quite rich experience and solid strength in the independent design and manufacture complete sets of crusher, beneficiation equipment, rotary kiln, ceramsite ceramsite sand production line, stone production line, sand production line and complete set of equipment of cement production line, etc. And it has through the strict international quality system certification. The high-tech content, high reliability, low maintenance cost make our products has been at the industry-leading level. At present, our factory has been exported to more than 40 countries, used in mining and construction widely.
CONTACT US
You're warmly welcome to visit our factory.
