Vibrating Sieve, Sand Sieve Machine---huahong

Vibrating Sieve, Sand Sieve Machine---huahong photo-1
US$ 999 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemicals,ore,etc
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai QingDao TianJin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemicals,ore,etc
Motor Type AC Motor
Power(W) 2*0.37kw
Capacity(t/h) 16--90
Place of Origin Henan, China
Brand Name Huahong
Model Number ZS1030
Dimension(L*W*H) Refer to specification
Weight Due to model
Certification ISO9001:2000,CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.long screen line
rrect to screen all kinds of specification products
3.reliable structure
nvenient maintenance

Details about sand vibrating sieve machine :

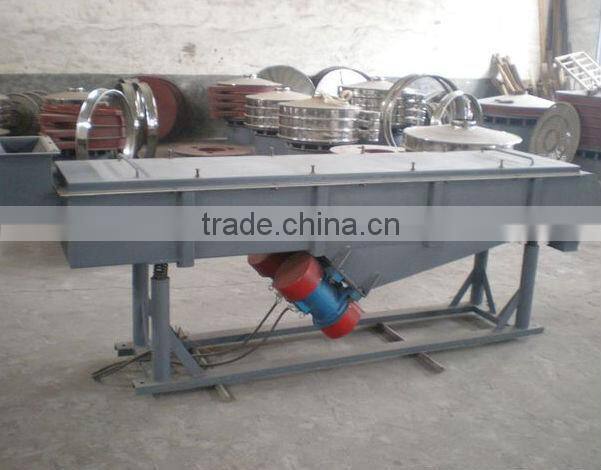

   The linear vibrating screen is used to separate materials. It is composed of main frame, screen, motor, eccentric bock, rubber spring, coupler and etc. Company supplies suitable type according to customers’ demands.

     Linear vibrating screen is widely used for screening any dry materials whose diameter is 0.074-15mm and the biggest feeding granularity is less than 20mm.

      ZDS series of linear vibrating screens are widely applied to screen dry materials in ore dressing, building materials, water and power, light industry and building materials.

Vibrating sieve, sand sieve machine---huahong



Advantages of sand vibrating sieve machine :

1. High screening efficiency, low energy consumption;



2. Easy to replace the screen; high wear resistance, low noise pollution



3. Advanced structure, strong exciting force

Vibrating sieve, sand sieve machine---huahong



Working theory of sand vibrating sieve machine :

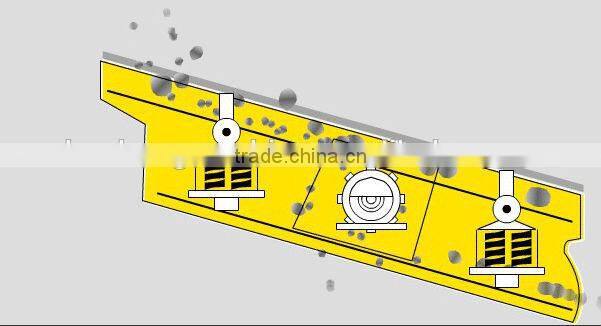

     Linear vibrating screen is the latest highly efficient screening equipment which uses vibration motor as the vibration source to make the materials on the screen be thrown up and move forward. The materials are evenly fed in from the feeder machine and to the feeding mouth of the screen sieve and finally discharged from the discharging mouth from different layers according to the size of the materials. The linear vibrating screen manufactured by Huahong Machinery is well known both at home and abroad.

Vibrating sieve, sand sieve machine---huahong

Vibrating sieve, sand sieve machine---huahong

Vibrating sieve, sand sieve machine---huahong

Vibrating sieve, sand sieve machine---huahong

Technical data:



 Model  ZS612  ZS618  ZS1030  ZS1230  ZS1535  ZS1845
 Screen size(mm)  600x1200  600x1800  1000x3000  1200x3000  1500x3500  1800x4500
 Material size(mm)  0.074-60   0.074-60   0.074-60   0.074-60   0.074-60   0.074-60
 Screen inclination (º)  1-7    1-7    1-7    1-7    1-7    1-7
 Layers  1-4   1-4   1-4   1-4   1-4   1-4
 Motor power(kw)  2x0.37  2x0.37  2x0.75  2x1.1  2x1.5  2x2.2

CONTACT US



                Vibrating sieve, sand sieve machine---huahong



             You're warmly welcome to visit our factory.
