Help CenterSolid Flotation PVC Boom
Related Products
Specifications
1.High strength and long service life.2.Good oil stagnant ability
3.Good wave-response.
4.Easy deployment.
DESCRIPTION:

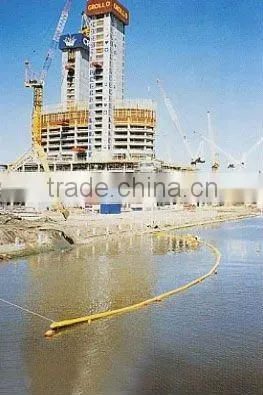

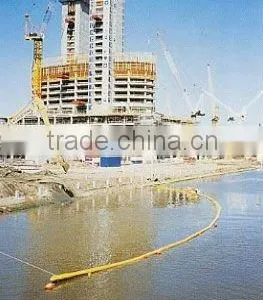

Solid-floatation PVC boom is economic and general propose boom for encircling spilt oil and other floaters on water. It is especially suitable for permanent deployment and widely used at pond, lake, river, harbor and offshore petroleum platform.
STRUCTURE:

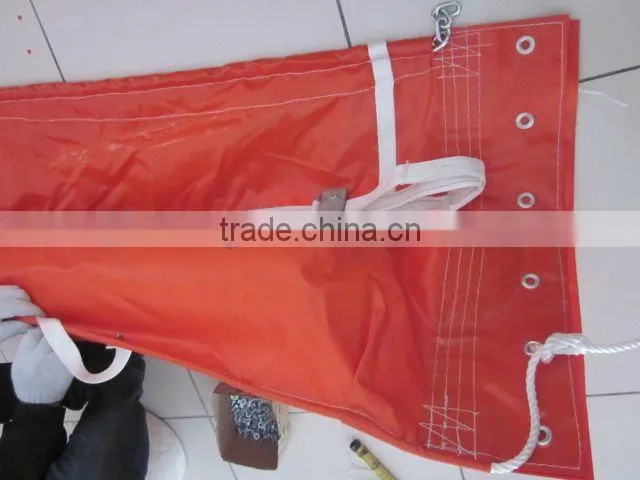

1. Boom's membrane is PVC double-face coated reinforced fabric.
2. A top ridge rope, middle reinforced belts and a bottom balance chain on boom sections bear the longitudinal load, and form concaves both at the skirt in water and at the flexible sections above water when boom is in a current.
3. There are flexible sections between cross beam like floaters.
4. Easily connect boom sections, which are 20m long.
5. Every section has anchor seats.
PERFORMANCE:
1. High strength and long service life. because of reasonable force distribution on the boom.
2. Good oil stagnant ability with due to nice posture and high stability in water.
3. Good wave-response. Easy deployment.
4. Easy to clean and maintain.
DIMENSION:
ITEM |
WGV600 |
WGV750 |
WGV800 |
WGV900 |
WGV1000 |
WGV1100 |
Height(mm) |
600 |
750 |
800 |
900 |
1000 |
1100 |
Freeboard (mm) |
180 |
260 |
250 |
330 |
325 |
320 |
Draught (mm) |
320 |
400 |
410 |
540 |
650 |
770 |
Section Length(m) |
20,15,10 |
|||||
Tension Strength(KN) |
20 |
40 |
55 |
65 |
75 |
85 |
Weight(kg/m) |
3.7 |
6.2 |
7.1 |
8.4 |
9.3 |
9.5 |
Wave Height (m) |
0.5 |
1 |
1.5 |
1.8 |
2 |
2 |
Wind Speed (m/s) |
10 |
15 |
15 |
18 |
18 |
20 |
Current speed (KN) |
1 |
1.5 |
2 |
2 |
2.5 |
2.5 |
20m packing Dimension (m) |
1×1×0.6 |
1.2×1×1 |
1.3×1.1×1.1 |
1.4×1.5×1.2 |
1.4×1.6×1.3 |
1.4×1.7×1.4 |
