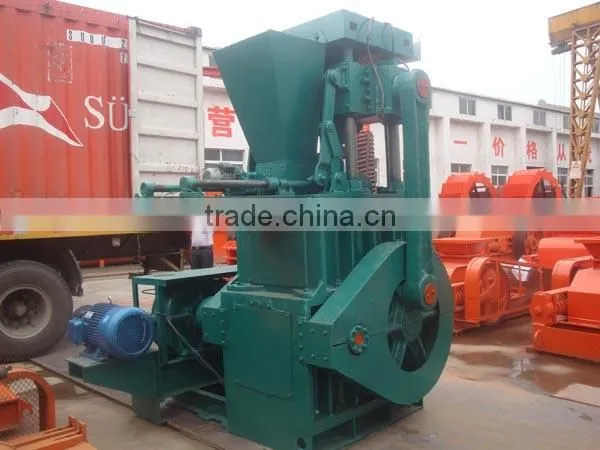

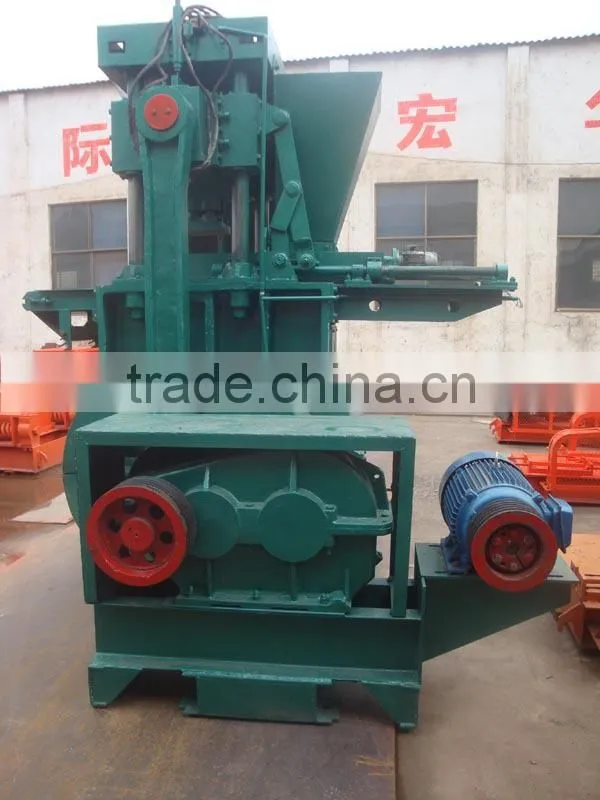

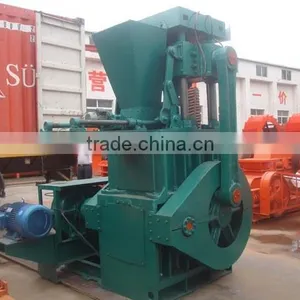

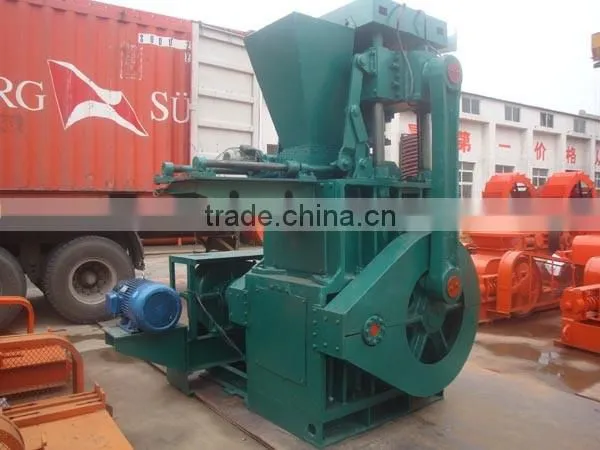

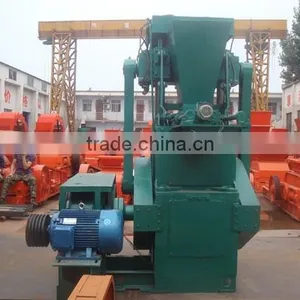

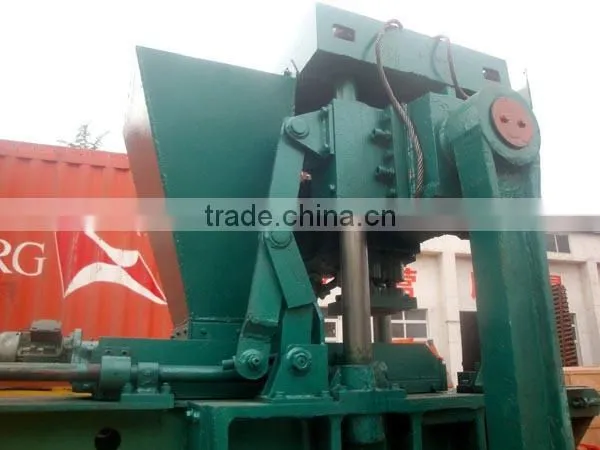

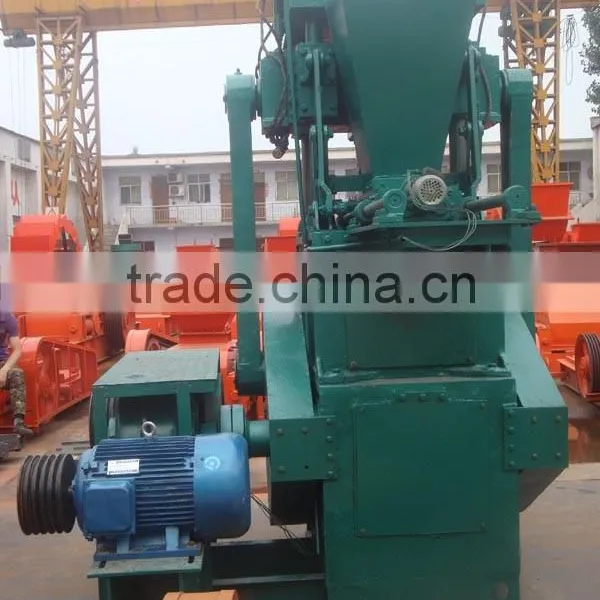

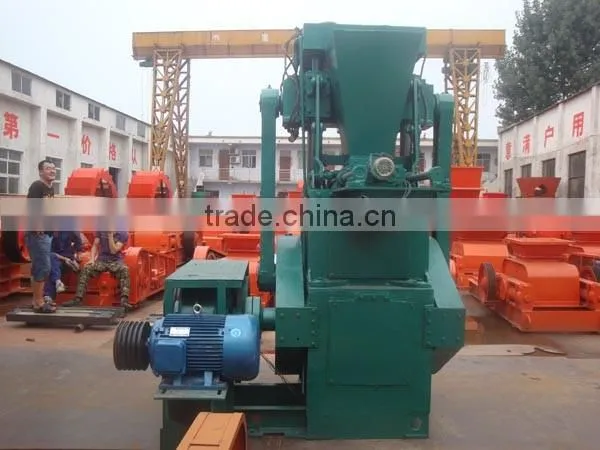

Help CenterQT3-15 Manual Brick Molding Machine
Related Products
-
Brick Making Machine Made in ChinaUS$ 1 - 99,999MOQ: 1 Set -
Heat Prosessing for the Whole Body for Long Service Life Brick Making MachineUS$ 1 - 99,999MOQ: 1 Set
-
Standard and Hollow Clay Brick Making Machine Supplier in ChinaUS$ 1 - 99,999MOQ: 1 Set
-
Energy Saving Brick Making Machine Supplier With Low PriceUS$ 1 - 99,999MOQ: 1 Set
-
SIEMENS or ABBmotor Brick Making MachineUS$ 1 - 99,999MOQ: 1 Set
Product description: |
1.The brick extruding machine is suitable for producing various solid and hollow brick such as gangue ,fly ash,clay. |
2.The drift adopt the wear-resisting metal powder spray coating technology; |
3.The superior mixer shaft,the drift macro axis,the up and down body etc. |
4.All products have passed the aging,quenching and tempering process; |

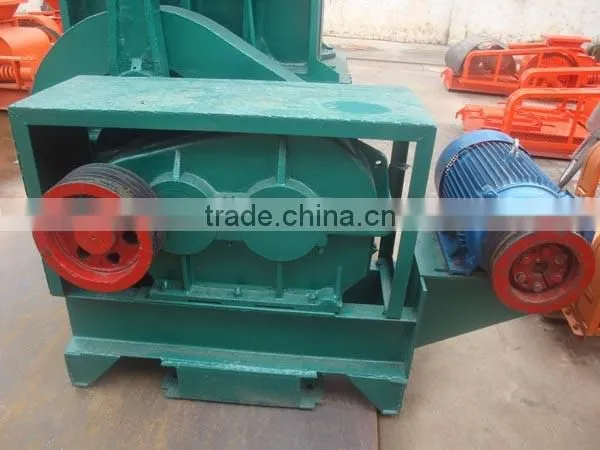

5.The speed reducer gears are all the hard tooth surface; |
6.The cluch uses the screw compressor patent technology,greatly improve the working life of equipment. |
7.At the same time,this machine has rational design,compact structure,smooth operation,can greatly reduce the consumption power by vibration in equipment operation process |
Whole process: |
1)Material is put into box feeder to make sure continuous feeding.There is a reamer near the discharging hole of box feeder.It can crash big block. |
2)Then material is conveyed to roller crusher and crashed into powdery. |
3)After that material is conveyed to double shaft mixer.Add water when mixing the material to make it more even. |
4)Material is conveyed to brick vacuum extruder.The machine process the material and squzees out mud strip. |
5)Strip cutter cut the mud strip into equal length strip and convey them to cut adobe plate |
6)Adobe cutter cut the brick strip into green brick adobes. |
7)Green bricks pass stoving and sintering processes become red brick. |
Brick making machine' parameters:
|
Model Parameters |
QT10-15 |
QT8-15 |
QT6-15 |
QT4-15 |
QT3-15 |
|
Pallet Size (mm) |
1080 x 850 x 40 |
920x 850 x40 |
850 x 680 x 40 |
900 X 540 X 40 |
700 x 540 x 35 |
|
Vibration Method |
HYDRAULIC TABLE VIRATION + PRESS |
|||||
Vibration Frequency (Times/min.) |
3600~6000 |
2800~4000 |
4000 |
4000 |
4000 |
|
Molding Cycle (Seconds) |
12-18 |
12-18 |
12-18 |
12-18 |
12-18 |
|
Pressure (Mpa) |
25 |
25 |
20 |
16 |
16 |
|
Total Weight (Tons) |
13.8 |
11.8 |
8.6 |
6.8 |
5.8 |
|
|
Dimension (L x W x H) MM |
7200*2290*2825 |
7200*2100*2825 |
6670*2245*2780 |
6120*2240*2750 |
5800*2130*2600 |
|
