Popular China Manufacturer Hollow Brick Making Machine, Solid Brick Machine for Sale

Popular China Manufacturer Hollow Brick Making Machine, Solid Brick Machine for Sale photo-1
Popular China Manufacturer Hollow Brick Making Machine, Solid Brick Machine for Sale photo-2
Popular China Manufacturer Hollow Brick Making Machine, Solid Brick Machine for Sale photo-3
Popular China Manufacturer Hollow Brick Making Machine, Solid Brick Machine for Sale photo-4
Popular China Manufacturer Hollow Brick Making Machine, Solid Brick Machine for Sale photo-5
Popular China Manufacturer Hollow Brick Making Machine, Solid Brick Machine for Sale photo-6
US$ 28,000 - 85,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paving Block Making Machine
Brick Raw Material:
Other, sand,cement,construction
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Paving Block Making Machine
Brick Raw Material Other, sand,cement,construction
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 41600 pcs/8 h
Place of Origin Henan, China
Brand Name Huahong
Model Number QTY4-20A
Voltage 380v
Power 25kw
Dimension(L*W*H) 3000*2200*2900mm
Certification ISO,CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Popular China manufacturer hollow brick making machine, solid brick machine for sale



Brief introduction and advantages

1) It's manpower saving for automatic material feeding, automatic pallet conveyance, automatic leading-out and hydraulic molding.

2) Hydraulic press and vibration work together to ensure high strength and high density of the bricks.
3) The machine frame is welded by special thick steel rectangle welding techniques, thus it is strong, durable and can resist vibration.
4) It uses arms to connect the lower mould to make it work steadily and synchronously.  The forced demolding synchronous structure gives the bricks perfect shape and increase the rate of finished products.
5) There is electric motor in brick conveyor machine, it convey the pallets when the bricks come out, it prevent collisions between pallets and avoid the break of bricks.
6)The material feeding system use broken arch structure, when feeding materials, kick fork swings back and forth quickly to feed materials evenly, and fill the mold with materials in every corner.  It ensure the high rate of finished products, and the strength of bricks is higher.
7) Vibration motor use heat-resistant motor which can continue working safely under 130°Cthe extreme temperature is up to 180°Cit's especially suitable for high temperature region.
8) Circulating water cooling system. The cooler is customized specially, the water pipe inside are all copper pipe, it have very good cooling effect. So the machine can produce normally in hot weather in Africa.
9) Multi function and high productivity. It can produce standard brick, block, hollow block and pavement by changing different molds.

Production capacity

Standard brick

 240x115x53mm

 26pcs/mould

 41600pcs/8 hours

Hollow block

 400x200x200mm

 4pcs/mould

 6400pcs/8 hours

Paving brick

 200x100x60mm

 16pcs/mould

 23040pcs/8 hours





Technical Specifictions:

Production capacity

Standard brick     240x115x53mm         26pcs/mould

Hollow block       400x200x200mm       4pcs/mould

Paver brick          200x100x60mm         16pcs/mould

Cycle time

18-25s

One hour output

Standard brick       240x115x53mm         5200pcs/hour

Hollow block         400x200x200mm       800pcs/hour

Paver brick            200x100x60mm         2880pcs/hour

Shift output

Standard brick       240x115x53mm       41600pcs/8 hours

Hollow block         400x200x200mm     6400pcs/8 hours

Paver brick            200x100x60mm       23040pcs/8 hours

Power

24.95kw

Vibrating force

68KN

Weight

4.5T

Dimension

3000x2200x2900mm

Bamboo pallet size

1020x550x20mm



Items of investment:

Component of production line

Quantity

QTY4-20A Block Making Machine

1

Brick converyor machine

1

Pallet feeder

1

Conveyer Belt

1

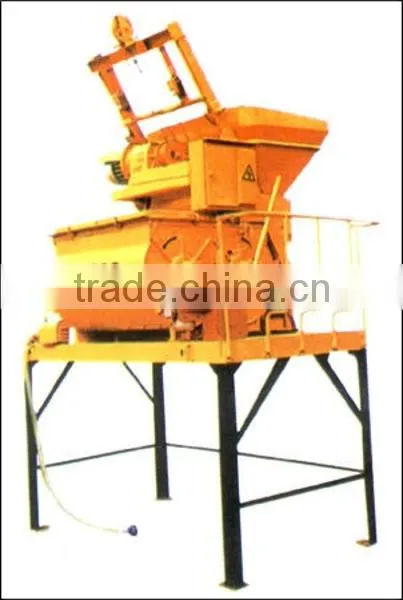

JDC350 Mixer

1

Control system

1

Manual cart

2

Free mould

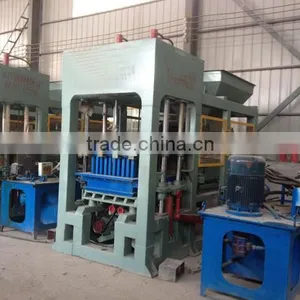

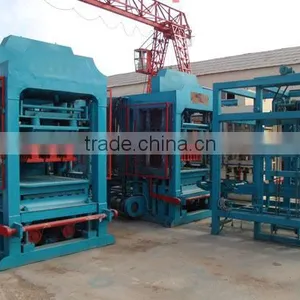

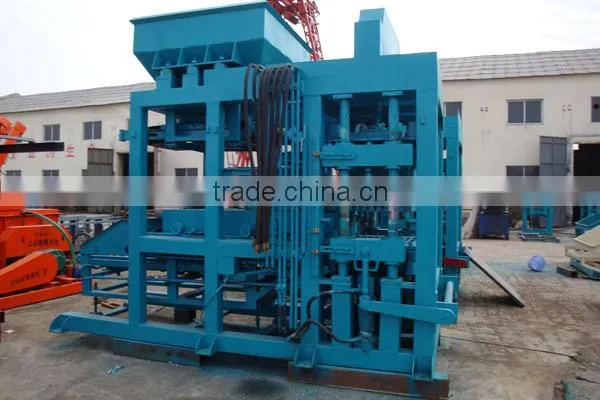

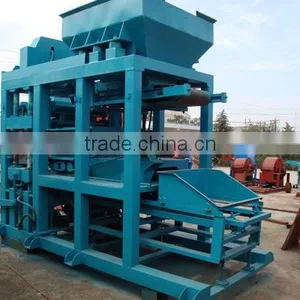

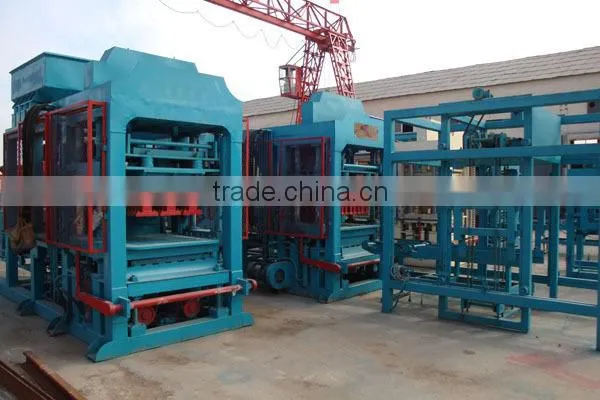

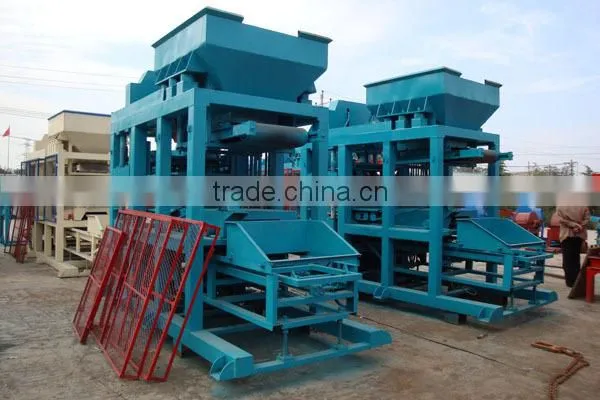

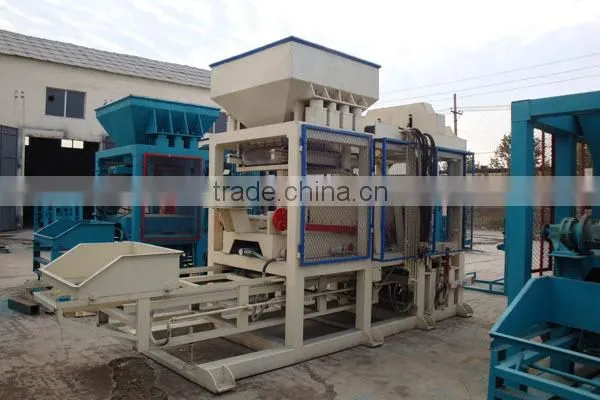

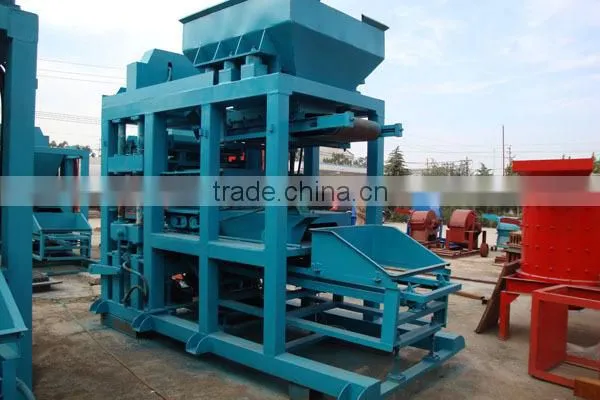

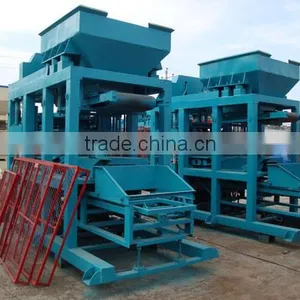

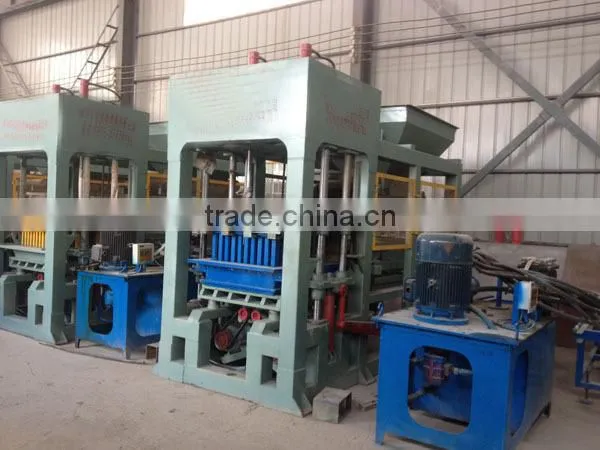

Brock /brick making machine pictures show

Popular China manufacturer hollow brick making machine, solid brick machine for salePopular China manufacturer hollow brick making machine, solid brick machine for salePopular China manufacturer hollow brick making machine, solid brick machine for salePopular China manufacturer hollow brick making machine, solid brick machine for salePopular China manufacturer hollow brick making machine, solid brick machine for sale

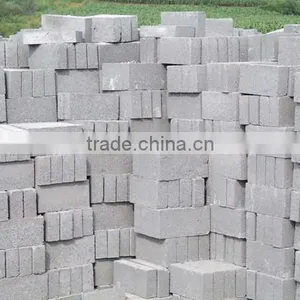

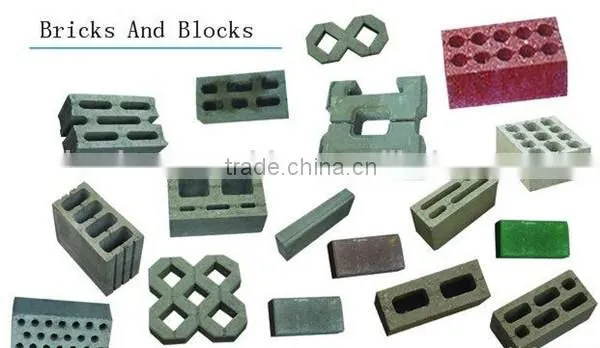

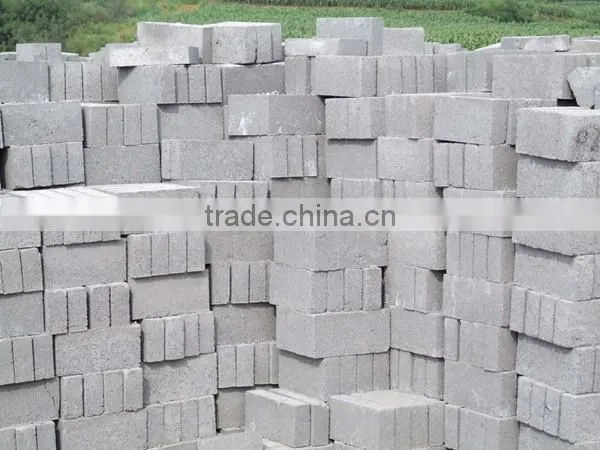

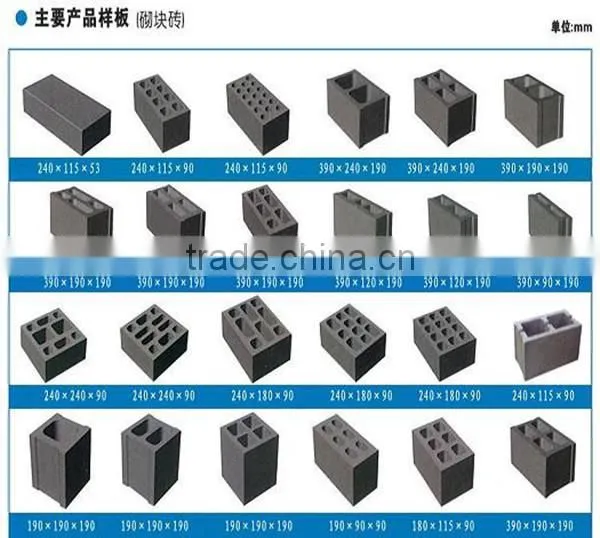

The shape of brick show

 Popular China manufacturer hollow brick making machine, solid brick machine for salePopular China manufacturer hollow brick making machine, solid brick machine for sale









We are manufacturer factory and we will give you our best factory and best quality, please feel free to contact me ,mobile + 86 15560062062
