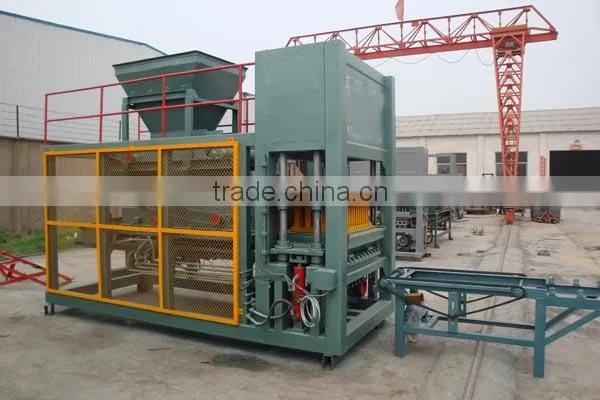

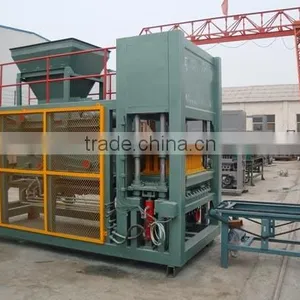

Full automatic Brick Making Machine Price
- 100 Set / Sets per Month
- Qingdao Tianjin Shanghai (or others as you required)
- T/T D/P D/A Credit Card PayPal
You May Like
-
hot selling new type design block machine with latest technology
-
low invest high profits ! block machine with latest technology
-
best selling product and lightweight block machine
-
fully automatic Brick making machine
-
Top brand huahong ! Brick making machine
-
economical huahong cement Brick making machine
Product Details
| Place of Origin | Henan, China | |||
| Brand Name | HUAHONG | Dimension(L*W*H) | Refer to the specific model | |
| Certification | CE ISO | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas | Type | Other, block machine |
Product Description
Instruction
Full automatic Brick Making Machine is an extruding & molding equipment with strong points of reasonable distribution of grains, homogeneity of moisture content, fit for raw material with low plastic nature. It is suitable for material such as coal gangue, fly ash mixture, shale, clay, etc. It adopts hard gear reducer. Use powerful or oil lubricant, with long life span, and it can guarantee the extruding pressure. Clutch is operated by electro or pneumatic, easy to realize automatic control.
Features
1, the operating system USES the Japanese mitsubishi PLC programmable controller and HMI touch screen control, equipped with data input device, security logic control and fault diagnosis system, which can realize the ideal man-machine dialogue.
2, perform manual, semiautomatic and fully automatic mode operation. Each perform a parameter can be set at random. Can ensure the quality and efficiency of our products. 6-15 baking-free brick machine adopts heavy structure design.
3, the use of high strength steel by making the special welding technology. To ensure that the body of good rigidity, since big, does not resonate with the excitation system. Can prolong the service life of machine machine.
4, three cylinder pressure, in the process of concrete forming force uniform, has solved the traditional hydraulic block machine vibration non-pressure shortcomings, realize the pressure, forming quantity, province cement block high compressive flexural strength, plate, etc.
Main technical parameters
Name | Value | |
Dimension | 7200×2100×2825(L×W×H)(mm) | |
Rated hydraulic pressure | 21Mpa | |
Vibration Method | HYDRAULIC TABLE VIRATION + PRESS | |
Vibrational frequency (Times/min.) | 50~70Hz | |
Vibration acceleration | 10-15g | |
High | 50-200mm | |
Pallet Size (mm) | wooden | 920×850×40(mm) |
Molding Cycle (Seconds) | 15s | |
Power | 36.8kw | |
Total Weight (Tons) | 11.8t | |
theoretical output
Type | Block specifications (mm) | Number of molding (block) | Molding cycle (seconds) | Production (8 hours) (block) | Host power (kw) |

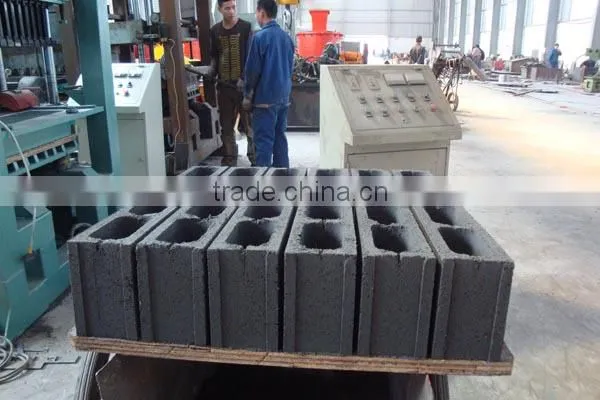

8-15 | 390*190*190( block) | 8 | 15 | 15360 | 36.8 |
| 240*115*90 (porous brick) | 21 | 15 | 40320 | 36.8 |
| 240*115*53 (standard brick) | 42 | 15 | 80640 | 36.8 |

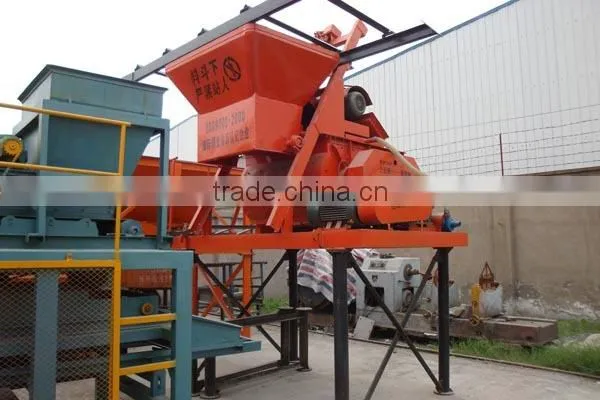

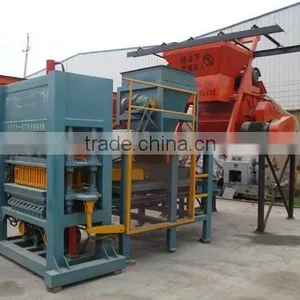

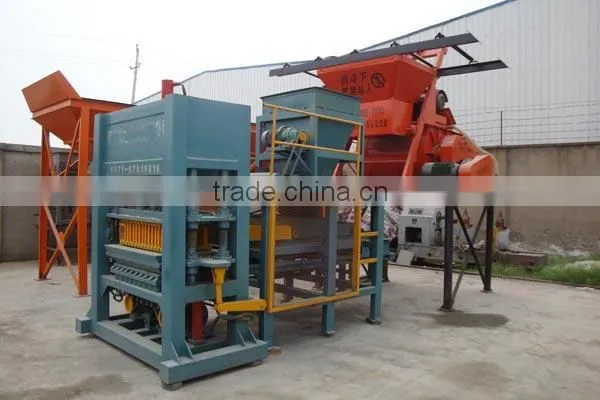

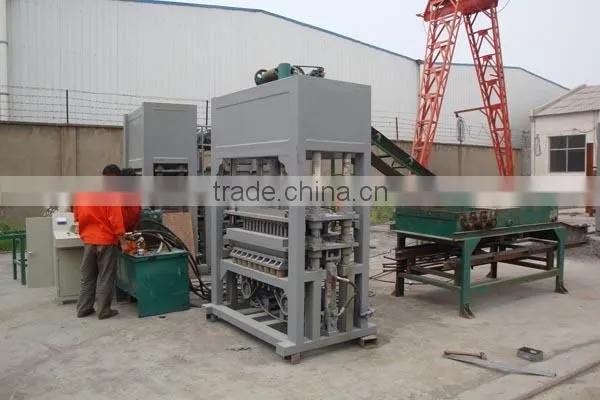

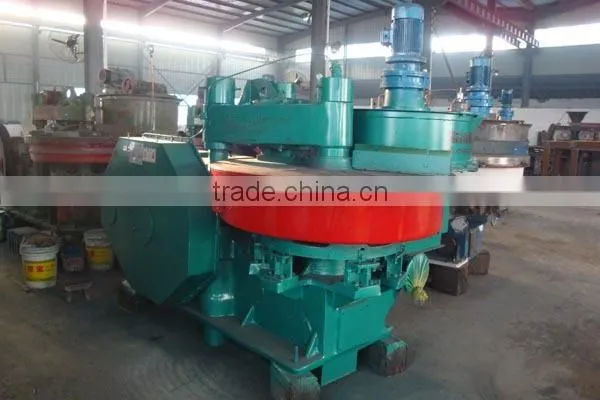

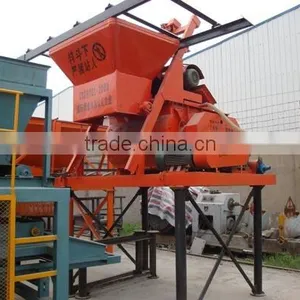

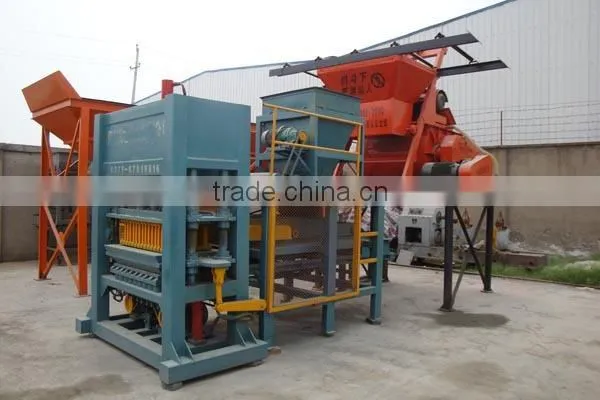

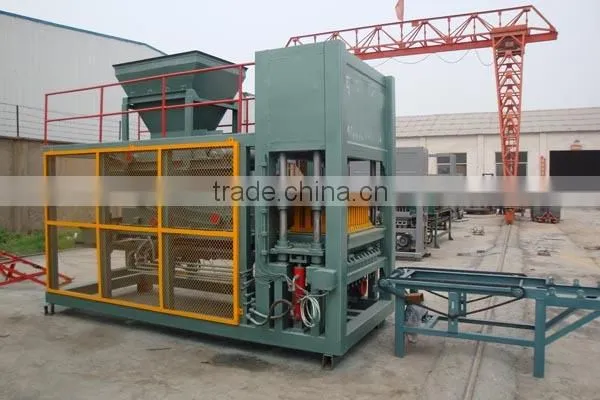

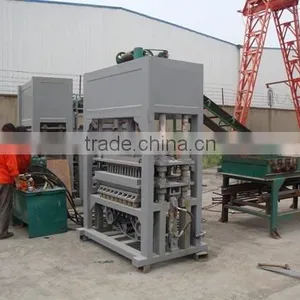

Our products:
Indonesian client visit our block machine

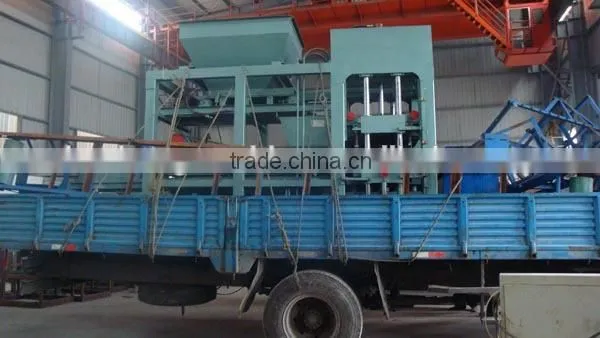

We have developed long and good relationship with many shipping agents. Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.
1.Zhengzhou Huahong Machinery Equipment Co., Ltd. mainly produces iron selecting equipment,kinds of drederes, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on, there are more than hundred kinds of products.
2.We design produce various of products according to the customers requirement and geographical condition. It is a modern largescale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.
3.We attach the development of scientific research, and form strategic partnership with the major research institutions. And we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting.
4.Honesty and credit is our bussiness value , customer first.First-class quality and first-class service is the business life.
Welcome to visit our factory anytime !!!
