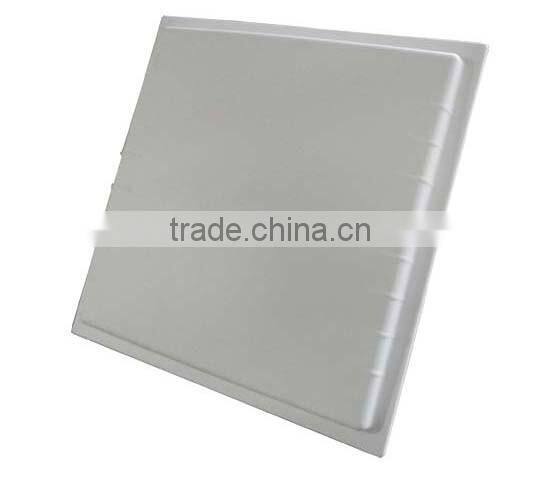

Uhf Rfid Integrated Reader for Toll Gate on Highway

Name: Uhf Rfid Integrated Reader for Toll Gate on Highway
Brand: VANCH
SKU: 101691611
Availability: InStock

Shenzhen Vanch Intelligent Technology Co., Ltd.

US$ 260 - 300 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VANCH

Model Number:

VI-88F

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VANCH

Model Number VI-88F

uhf rfid integrated reader for toll gate on highway

Product Description

Q: What is the UHF RFID Integrated Reader (VI-88F) made of?

A: It is made of antenna with housing, reader board, communication cable and clamp for installation.

Q: What project will the UHF RFID Integrated Reader (VI-88F) be able to implement?

A: Parking lot, vehicle access control, ETC (electronic tolling collection), manufacturing automation, laundry and personnel attendance etc.

Q: What is its main feature?

A: 1. Support multi communication interfaces (LAN, RS232, RS485, Wiegand26/34);

2. RF output power 30dbm adjustable, support multi work modes (auto, command, triggering);

3. Reliable industry structure design, workable in varied severe environment. It is IP65 level.

Quick View of Parameter:

Model#	VI-88F
Performance Index
Frequency range	902-928MHZ/865-868MHZ(or customized)
FM mode	FHSS or fixed frequency, set by the software
RF output	30dBm adjustable
Communication interface	LAN,RS232,RS485,Wiegand26/34
Communication rate	Serial port 9600~115200bps,RJ45 10Mbps
I/O interface	TTL
Power dissipation	average<15W
Application software	Provide with API SDK and VC, VB, Java application routines
Tag Operation Performance
Reading distance	5~18m equipped with 12dbi antenna(tag dependent)
Air interface	EPC global UHF ISO-18000-6C(EPC G2),ISO-18000-6B
Mechanical and Electrical Performance
Dimension	445(L)445 (W)70(H)mm
Power supply	Equipped with power convertor 220V AC input, +9V/3A DC output
Weight	5.2 KG
Humidity	5% to 95%, non-condensing
Protection grade	IEC IP 65
Operation temperature	-20 ºC to +60 ºC
Storage temperature	-40°C to 80°C
