Free SDK UHF RFID Integrate Reader for Car Access Control with 2 years warranty
Q: What is the UHF RFID Integrated Reader (VI-88F) made of?
A: It is made of antenna with housing, reader board, communication cable and clamp for installation.
Q: What project will the UHF RFID Integrated Reader (VI-88F) be able to implement?

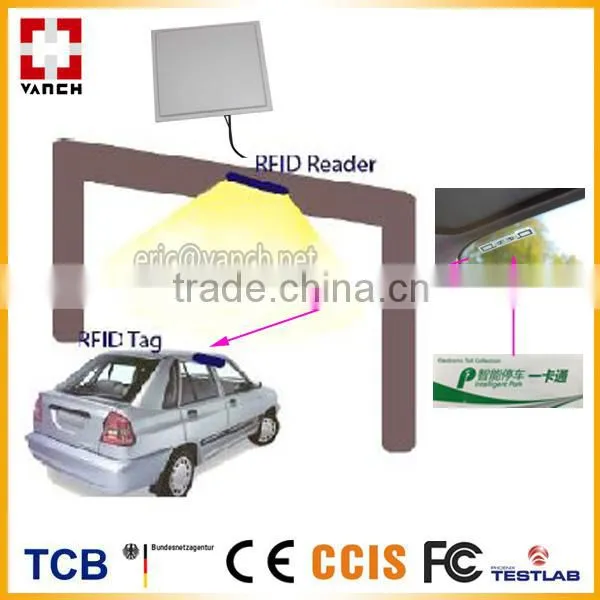

A: Parking lot, vehicle access control, ETC (electronic tolling collection), manufacturing automation, laundry and personnel attendance etc.
Q: What is its main feature?
A: 1. Support multi communication interfaces (LAN, RS232, RS485, Wiegand26/34);
2. RF output power 30dbm adjustable, support multi work modes (auto, command, triggering);
3. Reliable industry structure design, workable in varied severe environment. It is IP65 level.
Quick View of Parameter:
Model# |
VI-88F |
Performance Index | |
Frequency range |
902-928MHZ/865-868MHZ(or customized) |
FM mode |
FHSS or fixed frequency, set by the software |
RF output |
30dBm adjustable |
Communication interface |
LAN,RS232,RS485,Wiegand26/34 |
Communication rate |
Serial port 9600~115200bps,RJ45 10Mbps |
I/O interface |
TTL |
Power dissipation |
average<15W |
Application software |
Provide with API SDK and VC, VB, Java application routines |
Tag Operation Performance | |
Reading distance |
5~18m equipped with 12dbi antenna(tag dependent) |
Air interface |
EPC global UHF ISO-18000-6C(EPC G2),ISO-18000-6B |
Mechanical and Electrical Performance | |
Dimension |
445(L)*445 (W)*70(H)mm |
Power supply |
Equipped with power convertor 220V AC input, +9V/3A DC output |
Weight |
5.2 KG |
Humidity |
5% to 95%, non-condensing |
Protection grade |
IEC IP 65 |
Operation temperature |
-20 ºC to +60 ºC |
Storage temperature |
-40°C to 80°C |
