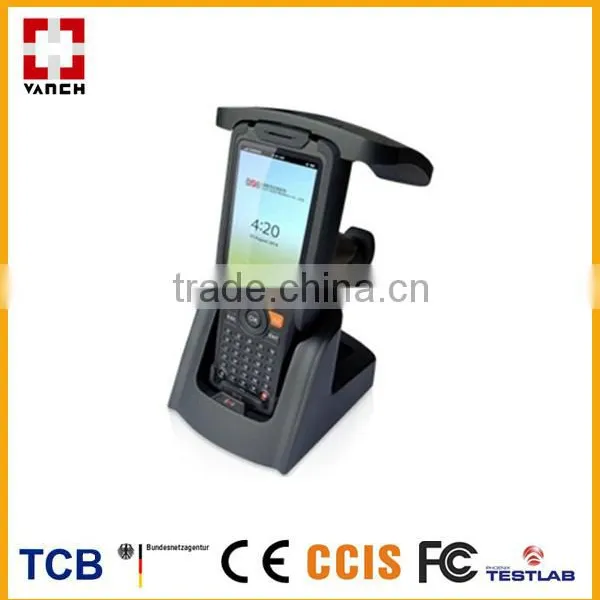

8m long range industrial rugged PDA with GPRS/GPS/WIFI uhf rfid reader
Product Features:
1.Android 4.0/Win CE 6.0 Operating System for option;
2.External UHF antenna, reading distance up to 7 m;
3.4’’ capacitive TFT LCD screen, visible in sunshine;
4.Support 1D/2D barcode scan, camera and 3G/GPRS module;
5.Independent mould, high protection rate;
6.Standard extension Interface;
7.Drop test: 1.2 meters drop to concrete ground
Specification Description |
||
Item Number |
VH-80 |
|
Smartphone Specification Parameter | ||
|
VH-80-A |
VH-80-W |
Processor |
SAMSUNG, Quad Core 1.4GHz |
624MHz Main Frequency |
Operating System |
Android 4.0.3 |
Win CE 6.0 |
Memory Capacity |
1GB LPDDR2,8GB iNand FLASH |
256MB Mobile DDR2,512MB Nand FLASH |
Storage |
Support 32G MICRO SD Card |
|
Screen |
4"TFT Color Touch Screen, Resolution:480×800;16Bit True Color, Visible in outdoor sunshine, adjustable backlight. |
|
Wi-Fi (Standard) |
Confirm To IEEE 802.11b/g/n |
|
GPRS (Optional) |
GPRS, EDGE , 4-band 900/1800,850/1900 |
|
Bluetooth (Standard) |
Bluetooth 2.0 |
|
WCDMA (3G, Optional) |
band 850/2100,Cat.8 HSDPA Cat.6 HSUPA |
|
GPS Navigation (Optional) |
Internal GPS Module and Antenna |
|
Infrared (Optional) |
Support |
|
Camera (Optional) |
VH-80-A Internal 8 MPx Camera, With Flash Light, Auto Focus |
VH-80-W Internal 2 MPx Camera, With Flash Light, Auto Focus |
RFID Module Specification Parameter | ||
Data Transportation |
USB 2.0 Interface;RS-232/RS485 Interface(Optional),1 DC_IN plug hole(DC5V),1 TF Card Slot,1 SIM Card Slot. |
|
RFID Module |
UHF (Standard) |
|
Bar Code Module |
1D (Optional), 2D (Optional) |
|
Battery |
3.7V 4000mAh Lithium Battery, Internal 3.7V 3600mAh Lithium Battery |
|
Accessory |
One Battery Charger, One USB Data Cable |
|
RFID Parameter | ||
UHF Module |
UHF Reading & Writing, Confirm to: European Standard ETSI EN 302208 American Standard FCC Part 15 Japanese Standard TELEC Chinese Standard CMII |
|
Protocol |
EPC C1 G2(ISO18000-6C) |
|
Reading Distance |
6m (Depends On Transmit Power, Tag Type and Environmental) |
|
Antenna |
Linear polarization antenna(4dbi, Standard);Transmit Power 16dBm~30dbm |
|
Physical Parameter | ||
Weight |
768g |
|
Size (mm) |
190×80×40mm(Main Body Size),2250mm×110mm×1750mm(Full Size, Including Antenna and Pistol Grip) |
|
Environmental Parameter | ||
Operating Temperature |
-20℃~55℃ |
|
Storage Temperature |
-20℃~70℃ |
|
Storage Humidity |
5%~95%RH (non-condensing) |
|
Sealing |
IP65 |
|
Standard carton box with protecting material for each reader.
Goods will be shipped to you by express, such as DHL, FEDEX, UPS, TNT and EMS etc.
Animal tracking, asset tracking, inventory checking etc.
- We make sure all of items are 100% in good status before shipment
- The product have one year warranty from the buying date. It's ok to send back the product for repairing during the warranty.
Not only for this, we did some other related projects as well, pls check the project pictures.
Welcome to contact me at mail beata at if you have any interest!
** Vanch Intelligent Technology Co.,Ltd. was established in 2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.
** As High-tech enterprise and software development &Design company, Vanch has a number of patents and copyright of software and hardware. RFID products passed CE certification and FCC, sold very well in Europe and America market.
** VANCH is membership of RFID Enterprise Alliance, RFID Standards Association and Internet of Things Association.
