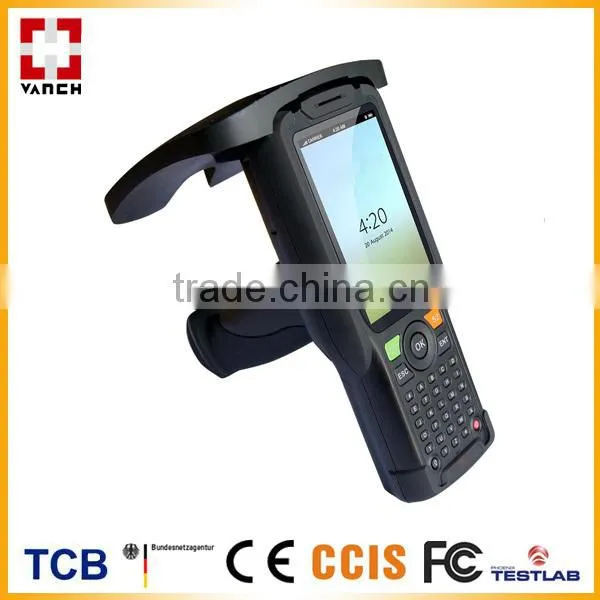

VANCH 8 meters Long range android UHF RFID handheld scanner
Main Features
-Ergonomic pistol grip designing for reducing fatigue during operation
-Outstanding tag identification ability, stable performance
-Integrated multiple data collection: 1D barcode/2D image/RFID UHF (optional)
-Multiple data communication: wifi/bluetooth/ GPRS (optional)
-High seal grade housing IP65
-Super rugged structure, can sustain 1.2 meters drop to concrete
-High speed CPU, WinCE 6.0 or Android 4.0.3 OS
-High capacity user memory
-Extensible battery designed in handle for long time working
Technical Parameters
Product size |
Main body height 190 mm,width 80 mm,thickness 40 mm |
Weight |
TBC |
CPU |
WinCE: PXA310, main frequency 624MHz; Android: Samsung 1.4G 4-core CPU, |
Operation system |
WinCE 6.0; Android 4.0.3 |
Memory |
WinCE OS: 256MB Mobile DDR2, 512MB Nand FLASH; Android: 1G LPDDR, 8G iNand FLASH |
Data communication |
Support Bluetooth 2.0 optional |
Wifi |
Support 802.11b/g/n |
WWAN (Optional) |
Dual band (900/1800MHz) , Quand Band (850/900/1800/1900MHz) |
Data Collection |
UHF tags reading |
1D barcode scanning ( Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba, China post 25,interteaved 2 of 5,ISBN/ISSN.Code93 etc) | |
2D image scanning (PDF417.QR Code(Model 1/2);DataMatrix(ECC200.ECC000,050; 080.100.140),Aztec,Maxiccde.) | |
Support IR communication (standard) | |
GPS function optional,to realize global positioning through built-in GPS module & antenna. | |
LCD display |
4" color transflective TFT, clear display in outdoor sun conditions. Backlight adjustable. Resolution:480×640;16bits real color(256K); touch panel. |
Keyboard |
Numeric keyboard/ Qwerty keyboard optional |
Speaker |
Built in with sound volume adjustable, & voice selectable |
Interface |
USB 2.0 port ( support USB OTG) |
RS-232/RS485 port (optional) | |
1 * microphone port | |
1 *DC_IN port(DC5V) | |
1 *TF card port | |
1 *SIM card port | |
Support protocal |
ISO/IEC 18000-6C,EPC C1G2 |
Working frequency |
840-960MHz according to requirement |
JPN: 840-845MHz; CN: 920-925MHz; USA: 902-928MHz | |
Antenna |
Linear polarized antenna(4dBi,standard) |
Reading distance |
6meters(depending on transmission power, tags type & using environment); |
Transmitting power |
16dBm to 30dBm; |
Battery |
Battery in device body: 4000mAH, battery in handle: 3000mAH. |
Industrial protection grade |
IP65; 1.2 meters drop to concrete |
Environment Parameters |
Working temperature: -20℃~+60; Storage temperature: -25℃~+85℃ |
Software |
free of charge SDK |
Accessories |
Cradle (charging base); USB cable; user manual |
