VANCH RFID animal ear tag/WIFI rfid reader for cattle tracking management
Devices:

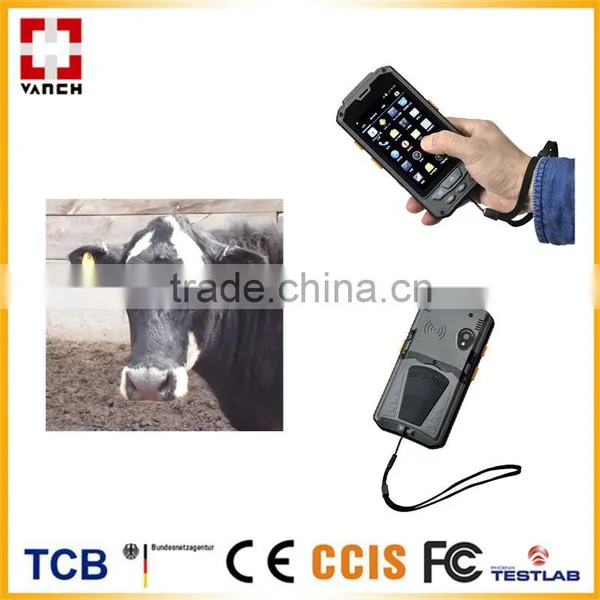

VH-70A UHF RFID Handheld reader
VT-100B UHF RFID Cattle Ear tag
Features
1. Support bluetooth, WIFI GPRS/WCDMA and other communication method
2.Support 1d barcode reading
3. Reading distance to EPC C1 GEN2/IS018000—6C 900MHZ Tag larger then 2 meters
4. Support 5 million pixel camera
5.Support infrared communication module
| Features | ||
| The processor | Cortex A9 1GHZ The processor; Cortex A9 1GHZ | |
| Memory capacity | ROM:EMMC 32Gb RAM: LPDDR2 4Gb | |
| The operating system | Android 4.03 | |
| Wireless communications | GPRS(option) | GPRS, EDGE , 4-band 900/1800,850/1900 |
| WCDMA(3G, option) | band 850/2100,Cat.8 HSDPA Cat.6 HSUPA | |
| WIFI(standard) | Conform to the IEEE 802.11b/g | |
| Bluetooth(option) | Conform to the Bluetooth 4.0 | |
| Display | 4.3”IPS display, The resolution of the 480*800, Gabo Lingual perspective, the sun is visible | |
| Touch screen | Support more capacitive touch; | |
| Indicator light | Network indicator light, charge indicator; | |
| audio | Support the speech; | |
| Micro SD card( Micro SD card) | Support 32 gb MICRO SD card; | |
| Data security | Product is the data security protection, in a completely off electricity (remove the battery and the power converter), data is not lost | |
| GPS indicators | Channel: channel 12 | |
| Receive types: L1, C/A code and carrier phase smoothing | ||
| Re-capture: < 1 s | ||
| The latest ASIC chip; A squadron of patent algorithms; EVEREST multipath suppression technology | ||
| Error range: < = 10 meters | ||
| Navigation map | Support navione, baidu, Google, gold and other navigation map; | |
| The input method | Full-screen handwriting, half screen handwriting, strokes and pinyin, Numbers, letters, symbols | |
| Physical interface | High-speed USB2.0 interface equipment end, 3.5 stick related plug-in interface | |
| camera(option) | The rear 5 million pixel camera with flash; | |
| The flashlight | Low power consumption LED lights lighting, emergency use; | |
| 1D barcode(SE4500/N431X) | ||
| Read code system | Can read all kinds of main one-dimensional bar code: Code 39,Code 93,Code 128,Codebar,EAN-13,EAN-8,UPC-A,UPC-E,ITF 14,UCC/EAN-128,ITF 25,Matrix 25,EAN-128,ISBN | |
| Read distance | 0 cm ~ 50 cm | |
| Read rate | First read rate of 99% or more, the error rate of 0.01% or less, false reject rate is 0.01% or less | |
| 2D barcode | ||
| Moto-SE4500 | Hardware decoding, the decoding speed and error rate of 0.01% or less; | |
| Honeywell-5180 | Hardware decoding, the decoding speed and error rate of 0.01% or less; | |
| RFID | ||
| UHF(915MHz) | More than 2m distance for EPC C1 GEN2 / ISO18000-6 - c protocol of 900 MHZ tag read operation (associated with tags and antenna) | |
| HF (13.56MHz) | 0 ~ 7 cm range for ISO15693, ISO14443 double deal 13.56 MHz tags for reading and writing (associated with tags and antenna) | |
| LF | 125 K / 134.2 K animal ear tag; | |
| PSAM | Support two PSAM card; | |
| HF (CPU card read) | Support the CPU card read and write, used with PSAM; | |
| Active in close communication | option) | |
| Active 2.45 G | Distance is 200 m, 200 m label can be read all at once; | |
| 433M | Read more than 200 m distance, distance is adjustable; | |
| Battery performance | ||
| The battery() | 4000 mah lithium polymer battery, standby time: more than 150 hours, working time: more than 8 hours, ac adapter charging (1 a) | |
| The battery standby time( | After a full charge, the wireless communication function on standby, after 360 hours, can run normally | |
| Battery charging time) | Charging time < 4.5 hour | |
| Charging time | More than 8 hours (once charging) | |
| The work environment | ||
| Operating temperature | -20°C ~50°C | |
| Storage temperature | -20°C ~70°C | |
| Relative humidity | 10%~90%RH,non indensity | |
| Protection grade | IP65 | |
| Physical parameters | ||
| The total weight | Less than 300g (including battery, charger are not included); | |
| The fuselage size | 148 (L) x 77.5 (W) x 27 (T) ± 2 mm | |
| The attachment | ||
| Standard | 1 1 lithium battery, charger, USB data line | |
Standard carton box with protecting material for each devices
Goods will be shipped to you by international express, such as DHL, FEDEX, UPS, TNT and EMS etc.
1, Supply different kinds of UHF RFID reades,antennas, tags(protocol of EPC C1G2 and ISO-18000/6C 902-928MHZ 865-868MHZ and 2.45GHZ active RFID Products
2, Have our own R&D Department to customize RFID Products for you.
3.Assist you to design different kinds of industry RFID solution
4.Products are CE and FCC certified
Shenzhen Vanch Intelligent was established in2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.VANCH products were widely used in City Smart transportation, Electric power system, asset and logistics management, the world's top 500 enterprises, government and military and other fields
Certificate and Honors:
Our Showroom:
Trade Shows:
Our Applications
Products available: rfid reader, rfid tag, uhf rfid antenna, rfid transponder,rfid printer,rfid module, active rfid, rfid handheld reader, rfid system, rfid solution, rfid smart card, USB RFID READER, RFID reader/writer. RFID reader writer,FREE SDK, RFID Technical Support, rfid mobile reader, 902-928MHz rfid reader, 915Mhz RFID,865-868MHz rfid reader, customized rfid reader,wifi rfid reader,rfid forklift reader, OEM rfid antenna, rfid transponder, Long Range 2.4G Active RFID Reader, 2.4G RFID Reader, active integrated reader, long distance RFID reader, directional rfid reader, active directional rfid reader, 2.45ghz rfid reader, vehicle access control rfid reader, RFID reader price rfid access control, rfid tracking, rfid laundry tag, passive rfid reader, rfid reader rs232 and so on, and our products are used in warehouse management, assets tracking, Automatic vehicle identification ,vehicle management/tracking, Parking management, bus tracking,tire tracking,highway toll collection,ETC RFID Hardware, Warehousing and logistics ,library & files management, jewelry management, farm management,School & personnel management and positioning , personnel tracking,animal tracking,rfid positioning, sports timing, file/document/library book tracking, high value asset tracking, tire tracking, people safety management and retail,etc.
