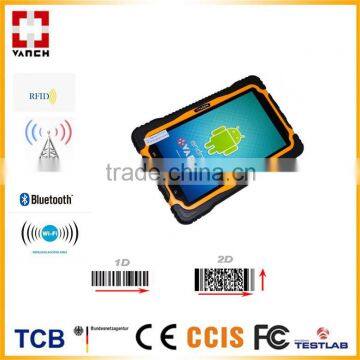

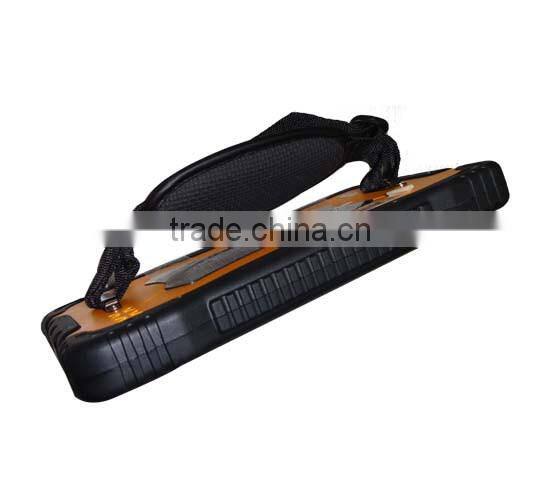

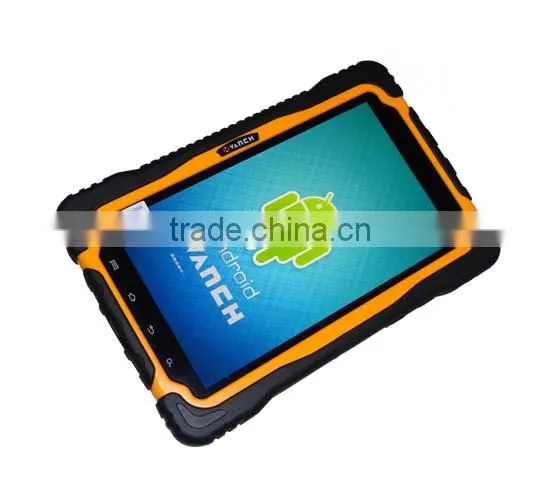

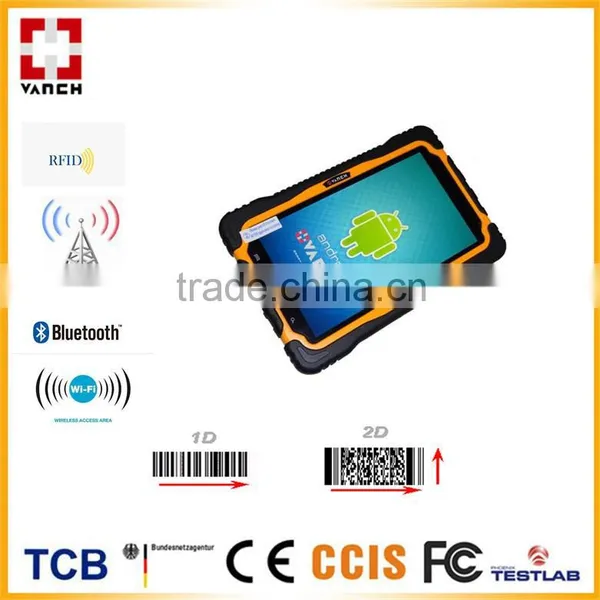

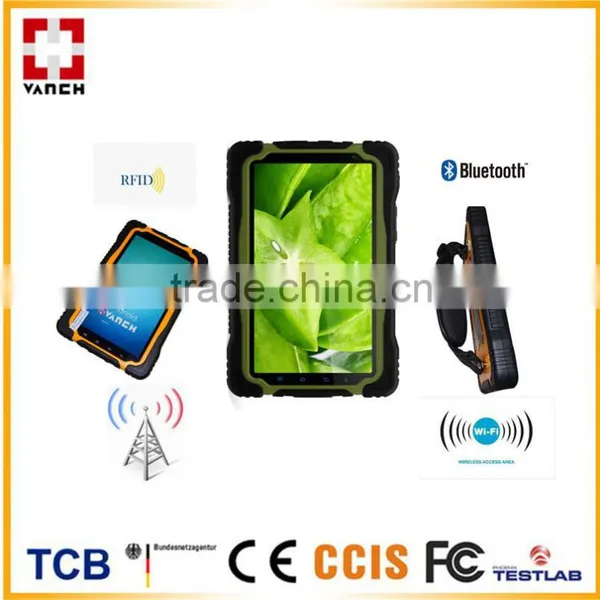

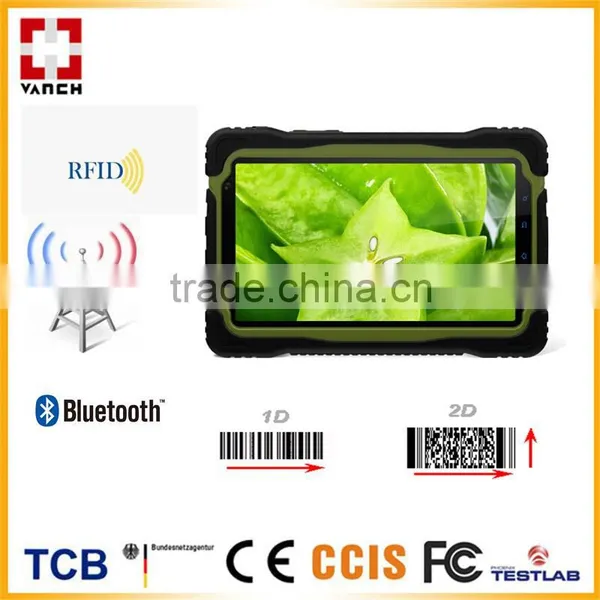

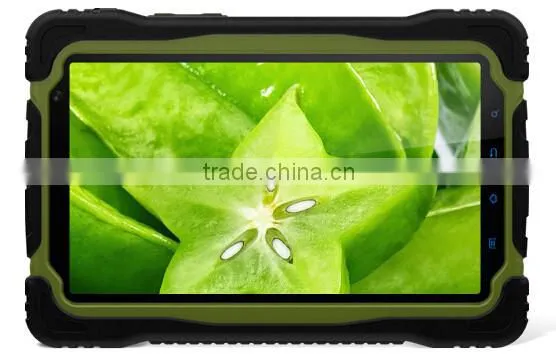

3m Read Range Android WIFI UHF RFID Handheld Reader

Name: 3m Read Range Android WIFI UHF RFID Handheld Reader
Brand: VANCH
SKU: 101690735
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VANCH

Model Number:

VS-S1007A-P

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VANCH

Model Number VS-S1007A-P

3m read range android WIFI UHF RFID handheld reader

Feature

1. Support Bluetooth,Wi-Fi,GPRS/WCDMA communication;

2. NFC,RFID and so on, multifunctional tablet

3. Support over 2m reading distance and support the tags with EPC C1 GEN2/ISO18000-6C and

900MHZ;

4. Support 8MP camera and auto focus function;

Specification

Model	VS-S1007A-P
Smartphone parameters
Processor	Quad core MT6589WK/MT6582 processor,1.2GHZ
Operating System	Android 4.2.1
RAM	1GB RAM
ROM	8GB ROM and support SDHC / SDXC(max 64GB)
Display Screen	7 inch,resolution 1024*600,5 points capacitive screen,visible in the sun
Wi-Fi(Standard)	IEEE 802.11 a/b/g/n + BT 4.0
Bluetooth(Standard)	Bluetooth 4.0
WCDMA(3G,Standard)	WCDMA 850/2100(850/1900 Optional)&GSM850/900/1800/1900
GPS(Standard)	GPS, support A-GPS,EPO
Camera(Optional)	Front camera 2MP, Back camera 5MP, with flash light
Headphone interface	3.5mm standard headphone interface
RFID module parameter
Data transmitting	USB Micro 5Pin
RFID module	UHF(Optional),NFC(Optional)
Barcode module	no
Chargeable battery	3.7V,9650mAh lithium polymer battery
Attachment	5V/2A charger, USB data line
RFID parameter
NFC module	Working frequency: 13.56MHz
Protocol	ISO14443A,ISO15693
Reading distance	0~7cm(Associated with tags and antennas)
UHF module	Working frequency:902MHz~928MHz(Standard) ,Customized frequency range:860MHz~960MHz
Protocol	EPC C1 G2(ISO18000-6C)
Reading distance	Over 3m (Associated with tags and antennas)
Physical parameter
Weight	650g
Dimension(mm)	200×132×21mm
Environment parameter
Working temperature	-20℃~65℃
Storage temperature	-40℃~80℃
Storage humility	5%~95%RH,no condensing
Protection Grade	IP66
