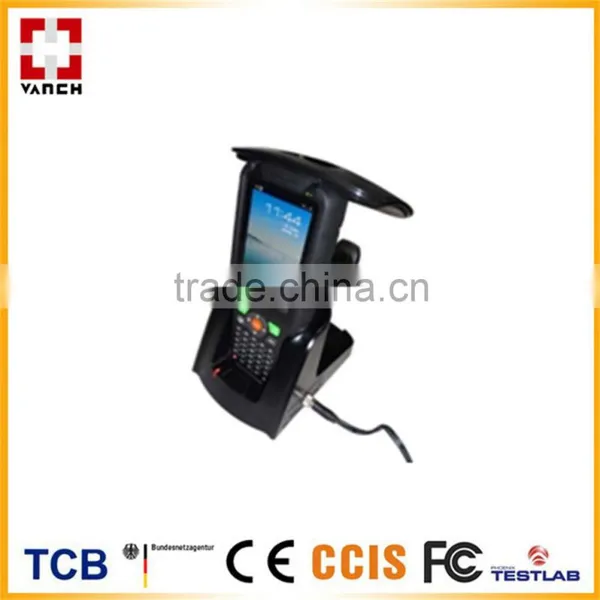

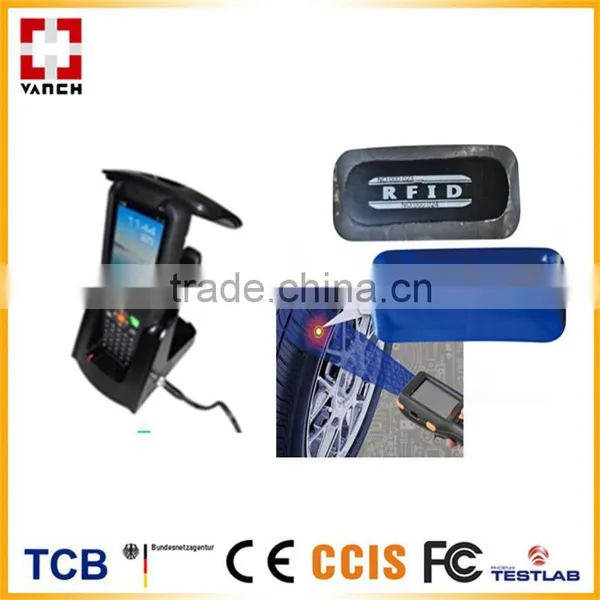

7m read range UHF RFID WIFI Bluetooth Handheld Reader
Features
- Android 4.0/Win CE 6.0 Operating System for option;
- External UHF antenna, reading distance up to 7 m;
- 4’’ capacitive TFT LCD screen, visible in sunshine;
- Support 1D/2D barcode scan, camera and 3G/GPRS module;
- Independent mould, high protection rate;
- Standard extension Interface;
- Drop test: 1.2 meters drop to concrete ground.
Specification
Item Number |
VH-80 |
|
Smartphone Specification Parameter | ||
|
VH-80-A |
VH-80-W |
Processor |
SAMSUNG, Quad Core 1.4GHz |
624MHz Main Frequency |
Operating System |
Android 4.0.3 |
Win CE 6.0 |
Memory Capacity |
1GB LPDDR2,8GB iNand FLASH |
256MB Mobile DDR2,512MB Nand FLASH |
Storage |
Support 32G MICRO SD Card |
|
Screen |
4"TFT Color Touch Screen, Resolution:480×800;16Bit True Color, Visible in outdoor sunshine, adjustable backlight. |
|
Wi-Fi (Standard) |
Confirm To IEEE 802.11b/g/n |
|
GPRS (Optional) |
GPRS, EDGE , 4-band 900/1800,850/1900 |
|
Bluetooth (Standard) |
Bluetooth 2.0 |
|
WCDMA (3G, Optional) |
band 850/2100,Cat.8 HSDPA Cat.6 HSUPA |
|
GPS Navigation (Optional) |
Internal GPS Module and Antenna |
|
Infrared (Optional) |
Support |
|
Camera (Optional) |
VH-80-A Internal 8 MPx Camera, With Flash Light, Auto Focus |
VH-80-W Internal 2 MPx Camera, With Flash Light, Auto Focus |
RFID Module Specification Parameter | ||
Data Transportation |
USB 2.0 Interface;RS-232/RS485 Interface(Optional),1 DC_IN plug hole(DC5V),1 TF Card Slot,1 SIM Card Slot. |
|
RFID Module |
UHF (Standard) |
|
Bar Code Module |
1D (Optional), 2D (Optional) |
|
Battery |
3.7V 4000mAh Lithium Battery, Internal 3.7V 3600mAh Lithium Battery |
|
Accessory |
One Battery Charger, One USB Data Cable |
|
