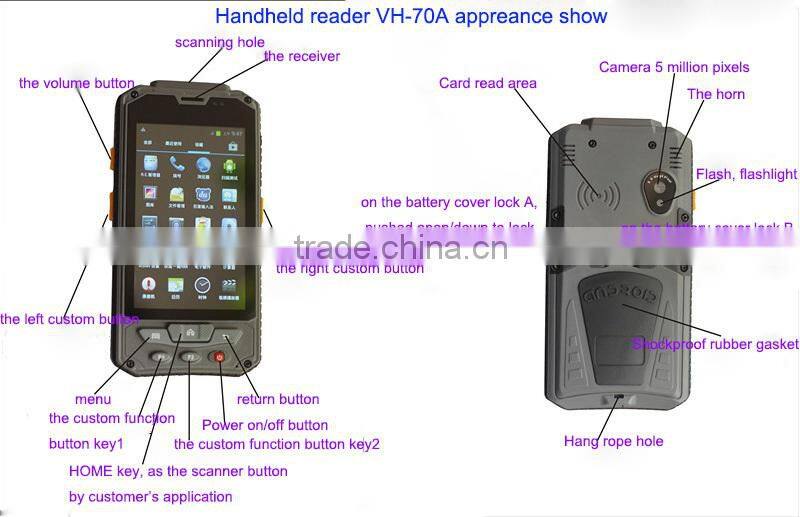

ISO-18000 6C /GEN2 RFID handheld reader with android 4.4 OS
If you need more details.plase feel free to add my skype and whatsapp.
Skype: ansonggg
whatsapp: +86 18675936520
Specifications
Specification Parameter:
Spec. Descriptions |
|
Item Number |
VH-70A |
Smartphone Specification Parameter: | |
Processor |
Cortex A9 1.2GHZ Dual Core |
Operating System |
Android 4.22 |
Memory Capacity |
ROM:EMMC 32Gb RAM:LPDDR2 8Gb |
Memory |
Support 32G MICRO SD Card |
Display |
4.3’’ IPS Screen, Resolution 480*800, HD, Visible in Sunshine, Support Capacitive Multi-Touch |
Wi-Fi (Standard) |
Confirm To IEEE 802.11b/g |
GPRS (Optional) |
GPRS, EDGE , 4-band 900/1800,850/1900 |
Bluetooth (Optional) |
Confirm To Bluetooth 4.0 |
WCDMA (3G, Optional) |
band 850/2100,Cat.8 HSDPA Cat.6 HSUPA |
GPS Navigation |
Mistake range <=10m, Support Careland, Baidu, Google, Imap etc. Navigation Map |
Camera (Optional) |
Rear 5 MPx Camera With Flashlight |
Fingerprint Module (Optional) |
Sensor Type: Inductive, Image Size:256*288, Image Resolution: 500DPI |
Registration Time < 3s, Comparing Time< 0.1s, Matching Time< 0.5s (100 pieces) | |
FRR < 0.1%, FAR < 0.001%, Fingerprint Capacity: 512 pieces | |
RFID Module Spec. Parameter | |
Data Transportation |
High Speed USB2.0 Device End Interface, 3.5 Stick Plug Charging Interface |
RFID Module |
HF (Optional), UHF(Optional), 2.4G Module (Optional) |
Bar Code Module |
1D (Optional), 2D (Optional) |
Battery |
4000mAh Li-Polymer Battery, Standby Time more than 150 Hours, Working Time more than 8 hours, AC charging adaptor (1A), able to working after 360 hours when the wireless communication is closed after full charged, charging time less than 4.5 hours |
Accessory |
Lithium Battery * 1, Charger * 1, USB Data Cable * 1, Case * 1 |
RFID Parameter | |
HF Module |
Working Frequency: 13.56MHz |
Protocol |
ISO14443A,ISO15693 |
Reading Distance |
0~7cm (According to Tag) |
UHF Module |
Working Frequency: 902MHz~928MHz (Default), Frequency Range can be Customized, Customizing range:860MHz~960MHz |
Protocol |
EPC C1 G2(ISO18000-6C) |
Reading Distance |
More than 3m(According to Tag) |
2.4G Module |
Working Frequency: 2.4GHz~2.5GHz |
R/W Range |
Up to 200m, distance is adjustable, able to read 200 tags at one time |
Physical Parameter | |
Device Weight |
Less than 300g (including battery) |
Device Dimension |
148×77.5×27 ± 2 mm |
Environmental Parameter | |
Working Temperature |
-20℃~50℃ |
Storage Temperature |
-20℃~70℃ |
Storage Humidity |
10%~90%RH, non-condensing |
Q: You are factory or trading company?
A: We are original equipment manufacturer in RFID UHF reader for over 10 years.
Q: How is your QC?
A: We have strict QC process and all the products will be 100% testing before shipping.
Q: What is your payment term?
A: 100% payment should be paid before shipping.
Q: What is your payment way?
A: T/T, Western Union, MoneyGram
Q: What is your warranty?
A: within 1 year.
Q: Can I get technical support from you?
A: Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
