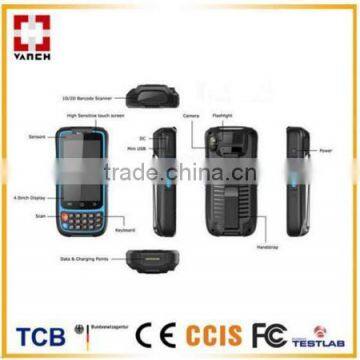

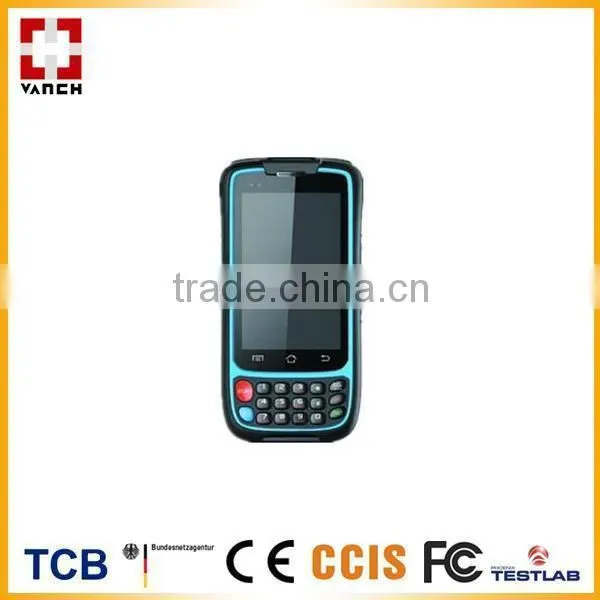

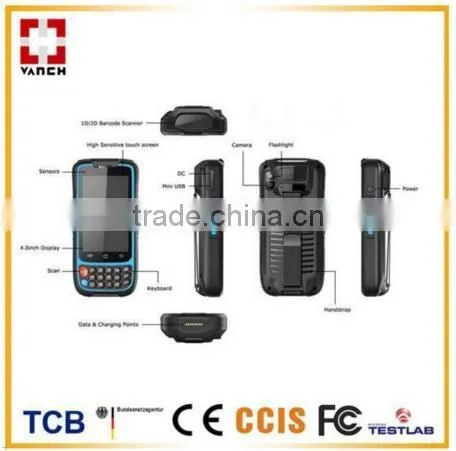

125K/13.56mhz android handheld rfid reader
Features
1. Support bluetooth, WIFI GPRS/WCDMA and other communication method
2.Support 1d barcode reading
3. Reading distance to EPC C1 GEN2/IS018000—6C 900MHZ Tag larger then 2 meters
4. Support 5 million pixel camera
5.Support infrared communication module
Features | ||
The processor |
Cortex A9 1.2GHZ double - core; |
|
Memory capacity |
ROM:EMMC 32Gb RAM: LPDDR2 8Gb |
|
The operating system |
Android 4.22 |
|
Wireless communications |
GPRS(option) |
GPRS, EDGE , 4-band 900/1800,850/1900 |
|
WCDMA(3G, option) |
band 850/2100,Cat.8 HSDPA Cat.6 HSUPA |
|
WIFI(standard) |
Conform to the IEEE 802.11b/g |
|
Bluetooth(option) |
Conform to the Bluetooth 4.0 |
Display |
4.3”IPS display, The resolution of the 480*800, Gabo Lingual perspective, the sun is visible |
|
Touch screen |
Support more capacitive touch; |
|
Indicator light |
Network indicator light, charge indicator; |
|
audio |
Support the speech; |
|
Micro SD card( Micro SD card) |
Support 32 gb MICRO SD card; |
|
Data security |
Product is the data security protection, in a completely off electricity (remove the battery and the power converter), data is not lost |
|
GPS indicators |
Channel: channel 12 |
|
|
Receive types: L1, C/A code and carrier phase smoothing |
|
|
Re-capture: < 1 s |
|
|
The latest ASIC chip; A squadron of patent algorithms; EVEREST multipath suppression technology |
|
|
Error range: < = 10 meters |
|
Navigation map |
Support navione, baidu, Google, gold and other navigation map; |
|
The input method |
Full-screen handwriting, half screen handwriting, strokes and pinyin, Numbers, letters, symbols |
|
Physical interface |
High-speed USB2.0 interface equipment end, 3.5 stick related plug-in interface |
|
camera(option) |
The rear 5 million pixel camera with flash; |
|
The flashlight |
Low power consumption LED lights lighting, emergency use; |
|
1D barcode(SE4500/N431X) |
|
|
Read code system |
Can read all kinds of main one-dimensional bar code: Code 39,Code 93,Code 128,Codebar,EAN-13,EAN-8,UPC-A,UPC-E,ITF 14,UCC/EAN-128,ITF 25,Matrix 25,EAN-128,ISBN |
|
Read distance |
0 cm ~ 50 cm |
|
Read rate |
First read rate of 99% or more, the error rate of 0.01% or less, false reject rate is 0.01% or less |
|
2D barcode |
|
|
Moto-SE4500 |
Hardware decoding, the decoding speed and error rate of 0.01% or less; |
|
Honeywell-5180 |
Hardware decoding, the decoding speed and error rate of 0.01% or less; |
|
RFID |
|
|
UHF(860-960MHz) |
More than 3m distance for EPC C1 GEN2 / ISO18000-6 - c protocol (depend on tags and antenna) |
|
HF (13.56MHz) |
0 ~ 7 cm range for ISO15693, ISO14443 double deal 13.56 MHz tags for reading and writing (associated with tags and antenna) |
|
LF |
125 K / 134.2 K animal ear tag; |
|
PSAM |
Support two PSAM card; |
|
HF (CPU card read) |
Support the CPU card read and write, used with PSAM; |
|
Active in close communication |
option) |
|
Active 2.45 G |
Distance is 200 m, 200 m label can be read all at once; |
|
433M |
Read more than 200 m distance, distance is adjustable; |
|
Battery performance |
|
|
The battery() |
4000 mah lithium polymer battery, standby time: more than 150 hours, working time: more than 8 hours, ac adapter charging (1 a) |
|
The battery standby time( |
After a full charge, the wireless communication function on standby, after 360 hours, can run normally |
|
Battery charging time) |
Charging time < 4.5 hour |
|
Charging time |
More than 8 hours (once charging) |
|
The work environment |
|
|
Operating temperature |
-20℃ ~50℃ |
|
Storage temperature |
-20℃ ~70℃ |
|
Relative humidity |
10%~90%RH,non indensity |
|
Protection grade |
IP65 |
|
Physical parameters |
|
|
The total weight |
Less than 300g (including battery, charger are not included); |
|
The fuselage size |
148 (L) x 77.5 (W) x 27 (T) ± 2 mm |
|
The attachment |
|
|
Standard |
1 1 lithium battery, charger, USB data line |
|
