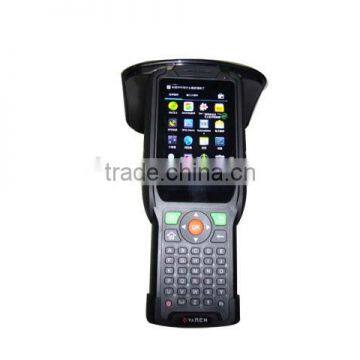

Multifunction UHF RFID handheld Reader Android 4.0 system with cradle
Features
1.Android 4.0/Win CE 6.0 Operating System for option;
2.External UHF antenna, reading distance up to 7 m;
3.4''capacitive TFT LCD screen, visible in sunshine;
4.Support 1D/2D barcode scan, camera and 3G/GPRS module;
5.Independent mould, high protection rate;
6.Standard extension Interface;
7.Drop test: 1.2 meters drop to concrete ground.
Specifications
Item Number | VH-80 | |
Smartphone Specification Parameter | ||
Screen | 4"TFT Color Touch Screen, Resolution:480×800;16Bit True Color, Visible in outdoor sunshine, adjustable backlight. | |
Wi-Fi (Standard) | Confirm To IEEE 802.11b/g/n | |
GPRS (Optional) | GPRS, EDGE , 4-band 900/1800,850/1900 | |
Bluetooth (Standard) | Bluetooth 2.0 | |
WCDMA (3G, Optional) | band 850/2100,Cat.8 HSDPA Cat.6 HSUPA | |
GPS Navigation (Optional) | Internal GPS Module and Antenna | |
Infrared (Optional) | Support | |
Camera (Optional) | VH-80-A Internal 8 MPx Camera, With Flash Light, Auto Focus | VH-80-W Internal 2 MPx Camera, With Flash Light, Auto Focus |
RFID Module Specification Parameter | ||
Data Transportation | USB 2.0 Interface;RS-232/RS485 Interface(Optional),1 DC_IN plug hole(DC5V),1 TF Card Slot,1 SIM Card Slot. | |
RFID Module | UHF (Standard) | |
Bar Code Module | 1D (Optional), 2D (Optional) | |
Battery | 3.7V 4000mAh Lithium Battery, Internal 3.7V 3600mAh Lithium Battery | |
Accessory | One Battery Charger, One USB Data Cable | |
RFID Parameter | ||
UHF Module | UHF Reading & Writing, Confirm to: European Standard ETSI EN 302208 American Standard FCC Part 15 Japanese Standard TELEC Chinese Standard CMII | |
Protocol | EPC C1 G2(ISO18000-6C) | |
Reading Distance | 6m (Depends On Transmit Power, Tag Type and Environmental) | |
Antenna | Linear polarization antenna(4dbi, Standard);Transmit Power 16dBm~30dbm | |
Physical Parameter | ||
Weight | 768g | |
Size (mm) | 190×80×40mm(Main Body Size),2250mm×110mm×1750mm(Full Size, Including Antenna and Pistol Grip) | |
Environmental Parameter | ||
Operating Temperature | -20℃~55℃ | |
Storage Temperature | -20℃~70℃ | |
Storage Humidity | 5%~95%RH (non-condensing) | |
Sealing | IP65 | |
1. You are manufacturer or trading company?
We are original equipment manufacturer in RFID UHF reader for over 10 years.
2. How is your QC?
We have strict QC process and all the products will be 100% testing before shipping.
3. What is your payment term?
100% payment should be paid before shipping.
4. What is your payment way?
T/T, Western Union,Paypal, MoneyGram
5. What is your warranty?
Wthin 1 year.
6. Can I get technical support from you?
Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
If you wanna know more specific about our RFID products,Please feel free Contact us:
