Home > Security & Protection > Access Control System > Access Control Card Reader > Vanch 915Mhz UHF RFID Library Gate Reader/security Gate/barrier Gate

Vanch 915Mhz UHF RFID Library Gate Reader/security Gate/barrier Gate

Name: Vanch 915Mhz UHF RFID Library Gate Reader/security Gate/barrier Gate
Brand: VANCH
SKU: 101690133
Availability: InStock

Vanch 915Mhz UHF RFID Library Gate Reader/security Gate/barrier Gate thumbnail-1

Vanch 915Mhz UHF RFID Library Gate Reader/security Gate/barrier Gate photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

VANCH

Model Number:

VC-420T

Contact Supplier Request Quote Chat Now

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name VANCH

Model Number VC-420T

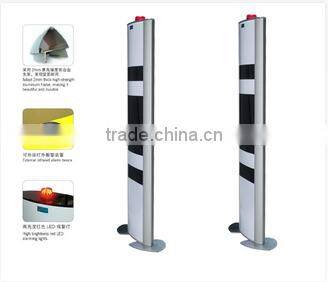

915Mhz UHF RFID library gate reader/security gate/barrier gate

Product Description

l Based on independent intellectual property development, adapt reader to work with global frequency range.

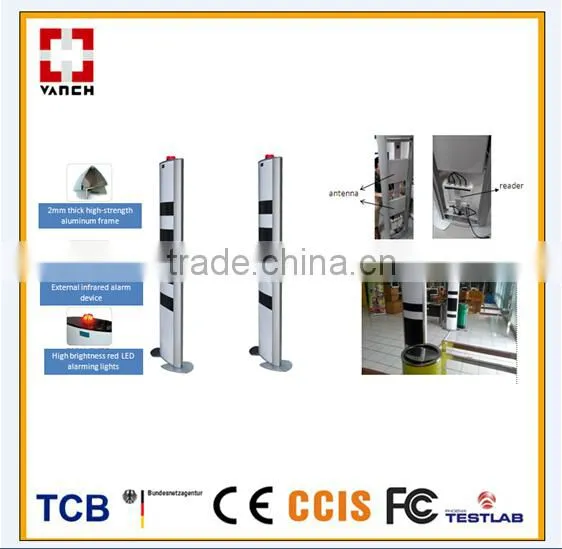

l RFID gate reader is combined by RFID antennas, reader, EAS sound and light alarm system, power supply and

l other assistant equipments. When goods or person attached with RFID tag go through the channel, RFID antenna

l will read the information and real time send to reader and related processor, to achieve the goods or person

l management.

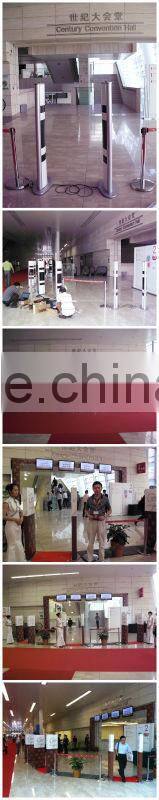

l Application: warehouse assets management, meeting attendance, clothes industry, books and files industry,

l manufacturing control and other open fields with big flows.

Features

Support tags conforming to standards EPC global UHF ISO-18000-6C (EPC G2), TK900;
Frequency range 902~928MHZ(or customized);
Support multi communication interfaces (LAN, RS232, RS485, Wiegand26/34);
4 SMA antenna ports, 7dbi circular polarization antenna, the height of antenna adjustable;
RF output power 20 ~ 30dBm adjustable, support auto, command, trigger work modes;
Reliable industry structure design, workable in varied severe environment.

Specification
Model#	VC-420T
Performance Index
Frequency range	902-928MHZ(or customized)
FM mode	FHSS or fixed frequency, set by the software
RF output	20-30dBm adjustable
Antenna connection qty’	4 SMA antenna ports, 7dbi circular polarization antenna, the height of antenna adjustable
Communication interface	LAN,RS232,RS485,Wiegand26/34
Communication rate	Serial port 9600~115200bps,RJ45 10Mbps
Power dissipation	average<20W
EAS alarm	3s sound and light prompt
GP I/O interface	12 pin + 4 pin
Reliable firmware upgrade	Extensible upgrade mechanism
Application software interface	Provide with API SDK and VC, VB, Java application routines
Tag Operation Performance
Reading distance	1.5-3m equipped with 7dbi antenna (tag dependent)
Air interface	EPC global UHF ISO-18000-6C(EPC G2),TK900
Mechanical and Electrical Performance
Dimension	157(L)x44.5 (W)x13(H)cm
Power supply	220V AC input
Weight	20KG
Humidity	5% to 95%, non-condensing
Protection grade	IEC IP51
Operation temperature	-20 ºC to +60 ºC
Storage temperature	-40°C to 80°C

Packaging & Shipping

Standard carton box with protecting material for each devices

Goods will be shipped to you by international express, such as DHL, FEDEX, UPS, TNT and EMS etc.

Our Services

1, Supply different kinds of UHF RFID reades,antennas, tags(protocol of EPC C1G2 and ISO-18000/6C 902-928MHZ 865-868MHZ and 2.45GHZ active RFID Products

2, Have our own R&D Department to customize RFID Products for you.

3.Assist you to design different kinds of industry RFID solution

4.Products are CE and FCC certified
