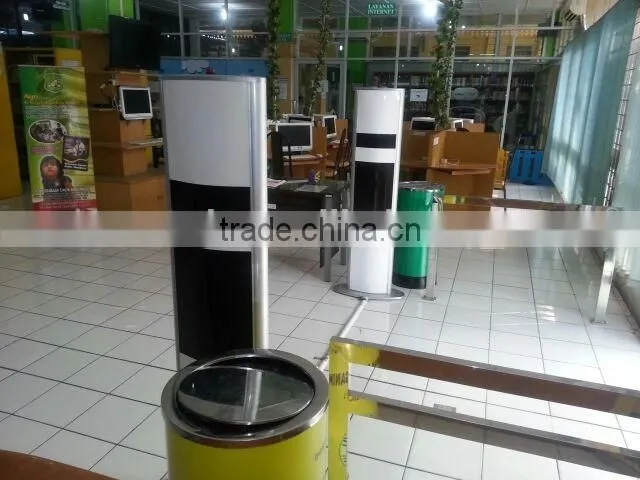

EPC global GEN2 RFID gate reader for library
l Based on independent intellectual property development, adapt reader to work with global frequency range.

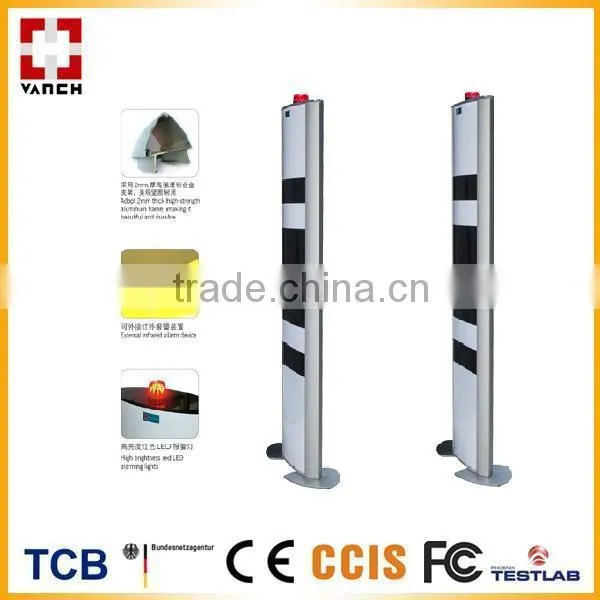

l RFID gate reader is combined by RFID antennas, reader, EAS sound and light alarm system, power supply and other assistant equipments. When goods or person attached with RFID tag go through the channel, RFID antenna will read the information and real time send to reader and related processor, to achieve the goods or person management.
l Application: warehouse assets management, meeting attendance, clothes industry, books and files industry, manufacturing control and other open fields with big flows.
Features
- 1. Support tags conforming to standards EPC global UHF ISO-18000-6C (EPC G2), TK900;
- 2. Frequency range 902~928MHZ(or customized);
- 3. Support multi communication interfaces (LAN, RS232, RS485, Wiegand26/34);
- 4. 4 SMA antenna ports, 7dbi circular polarization antenna, the height of antenna adjustable;
- 5. RF output power 20~30dBm adjustable, support auto, command, trigger work modes;
- 6. Reliable industry structure design, workable in varied severe environment.
Specification
Specification |
|
Model# |
VC-420 |
Performance Index | |
Frequency range |
902-928MHZ(or customized) |
FM mode |
FHSS or fixed frequency, set by the software |
RF output |
20-30dBm adjustable |
Antenna connection qty’ |
4 SMA antenna ports, 7dbi circular polarization antenna, the height of antenna adjustable |
Communication interface |
LAN,RS232,RS485,Wiegand26/34 |
Communication rate |
Serial port 9600~115200bps,RJ45 10Mbps |
Power dissipation |
average<20W |
EAS alarm |
3s sound and light prompt |
GP I/O interface |
12 pin + 4 pin |
Reliable firmware upgrade |
Extensible upgrade mechanism |
Application software interface |
Provide with API SDK and VC, VB, Java application routines |
Tag Operation Performance | |
Reading distance |
1.5-3m equipped with 7dbi antenna (tag dependent) |
Air interface |
EPC global UHF ISO-18000-6C(EPC G2),TK900 |
Mechanical and Electrical Performance | |
Dimension |
180(L)*35 (W)*20(H)cm |
Power supply |
220V AC input |
Weight |
20KG |
Humidity |
5% to 95%, non-condensing |
Protection grade |
IEC IP51 |
Operation temperature |
-20 ºC to +60 ºC |
Storage temperature |
-40°C to 80°C |
Q: You are factory or trading company?
A: We are original equipment manufacturer in RFID UHF reader for over 10 years.
Q: How is your QC?
A: We have strict QC process and all the products will be 100% testing before shipping.
Q: What is your payment term?
A: 100% payment should be paid before shipping.
Q: What is your payment way?
A: T/T, Western Union, MoneyGram
Q: What is your warranty?
A: within 1 year.
Q: Can I get technical support from you?
A: Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
Feel free to contact Anson lam
Skype: ansonggg
whatsapp:+86 18675936520
