ISO18000-6C(EPC GEN2) Bluetooth RFID Handheld Reader for Asset Tracking

Name: ISO18000-6C(EPC GEN2) Bluetooth RFID Handheld Reader for Asset Tracking
Brand: VANCH
SKU: 101690149
Availability: InStock

US$ 190 - 230 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VANCH

Model Number:

VH-75

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shezhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VANCH

Model Number VH-75

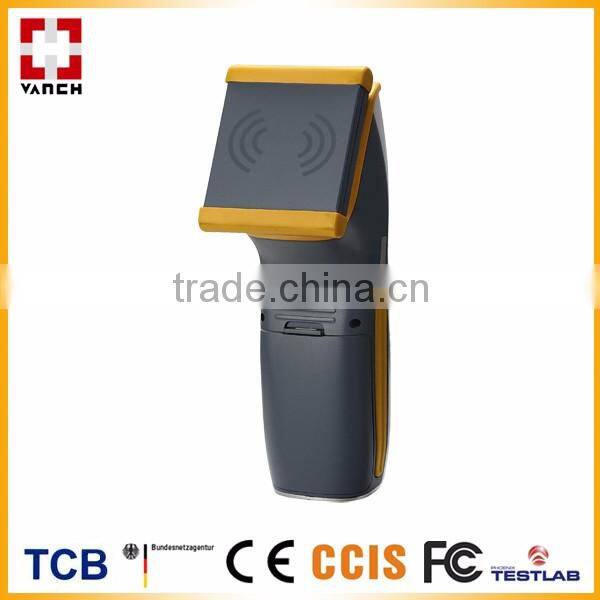

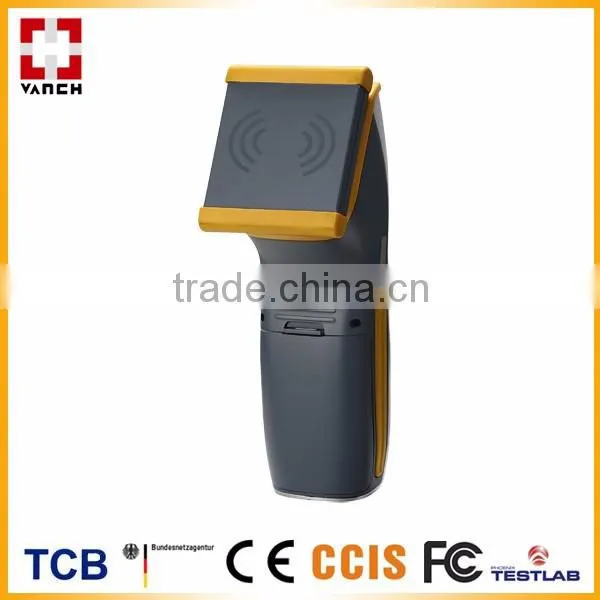

ISO18000-6C(EPC GEN2) bluetooth RFID handheld reader for asset tracking

Introduction

l Based on independent intellectual property development, adapt reader to work with global frequency range;

l High performance with Bluetooth easily communicate with smart terminal (smart phone, tablet PC).

Features

1. Save repeat purchase cost by operation online with available PDA, smart phone and tablet PC via Bluetooth communication;

2. Support reading/writing electronic tags up to ISO-18000-6B,ISO-18000-6C(EPC G2);

3. Easy to read tags and meanwhile easy to check/confirm on PDA screen;

4. Low cost, more economical than handheld reader integrating with PDA;

5. Reliable industrial structure design, workable in varied severe environment.

Specification


Model#	VH-75
Performance Index
Frequency Range	865-868MHZ,902-928MHZ(or customized)
FM mode	FHSS or fixed frequency, set by the software
RF output power	30 dBm adjustable
Communication interface	USB1.1, Bluetooth IEEE802.15 ( rate 1Mbps)
Tag Operation Performance
Reading distance	Read >200cm, Write >20cm
Air interface	ISO-18000-6B,ISO-18000-6C(EPC G2)
Mechanical and Electrical Performance
Dimension	180(L)55 (W)30(H)mm
Power supply	Rechargeable Li-ion polymer battery (3.7V,3200mAH)
Reading instructions	Vibration motor,Buzzer,LED
Memory Card	2G(MiniSD)
Standby time	150 hours, scan times for once charging: 5000
Weight	250g
Humidity	5% to 95%, non-condensed
Protection grade	IEC IP56
Operation temperature	-20 ºC to +50 ºC
Storage temperature	-25°C to70°C
