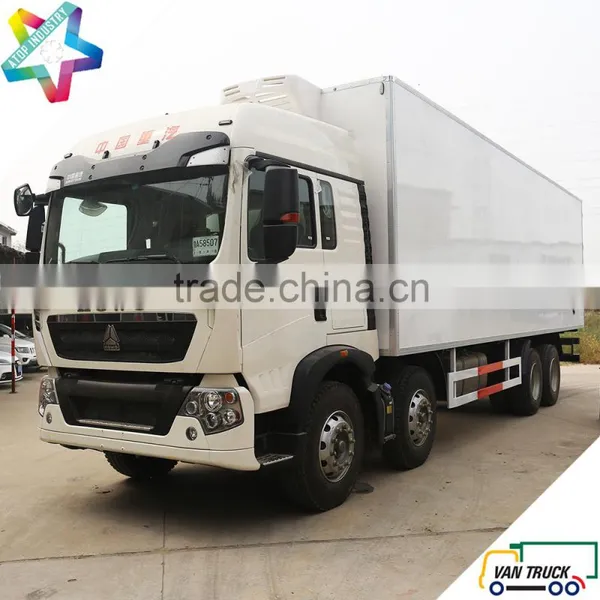

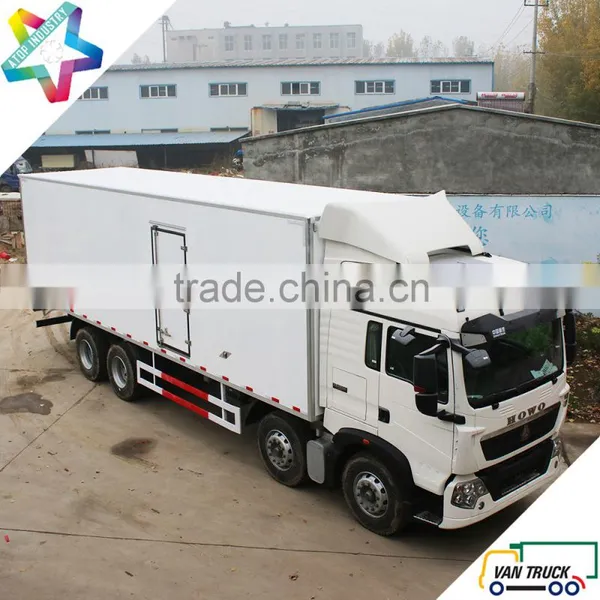

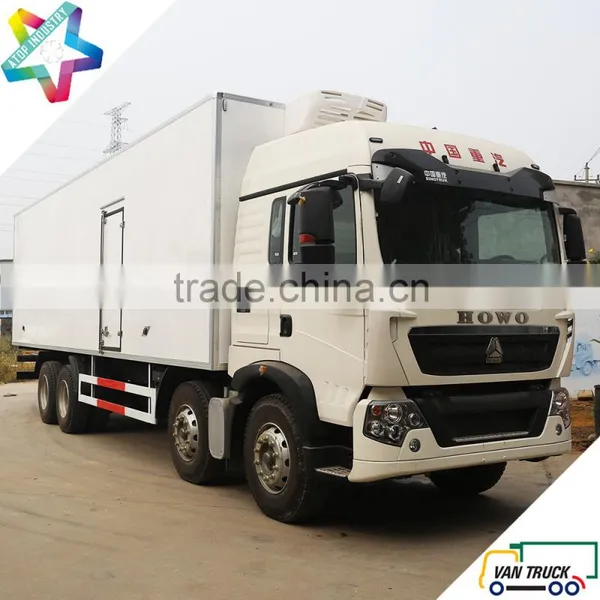

Heavy Duty 9.6m Refrigerator Truck Body 31T Sino-Truck T5G 340Hp Chassis Reefer Truck

Heavy Duty 9.6m Refrigerator Truck Body 31T Sino-Truck T5G 340Hp Chassis Reefer Truck thumbnail-1
Heavy Duty 9.6m Refrigerator Truck Body 31T Sino-Truck T5G 340Hp Chassis Reefer Truck thumbnail-2
Heavy Duty 9.6m Refrigerator Truck Body 31T Sino-Truck T5G 340Hp Chassis Reefer Truck thumbnail-3
Heavy Duty 9.6m Refrigerator Truck Body 31T Sino-Truck T5G 340Hp Chassis Reefer Truck thumbnail-4
Heavy Duty 9.6m Refrigerator Truck Body 31T Sino-Truck T5G 340Hp Chassis Reefer Truck thumbnail-5
Heavy Duty 9.6m Refrigerator Truck Body 31T Sino-Truck T5G 340Hp Chassis Reefer Truck thumbnail-6
Heavy Duty 9.6m Refrigerator Truck Body 31T Sino-Truck T5G 340Hp Chassis Reefer Truck photo-1
Heavy Duty 9.6m Refrigerator Truck Body 31T Sino-Truck T5G 340Hp Chassis Reefer Truck photo-2
Heavy Duty 9.6m Refrigerator Truck Body 31T Sino-Truck T5G 340Hp Chassis Reefer Truck photo-3
Heavy Duty 9.6m Refrigerator Truck Body 31T Sino-Truck T5G 340Hp Chassis Reefer Truck photo-4
Heavy Duty 9.6m Refrigerator Truck Body 31T Sino-Truck T5G 340Hp Chassis Reefer Truck photo-5
Heavy Duty 9.6m Refrigerator Truck Body 31T Sino-Truck T5G 340Hp Chassis Reefer Truck photo-6
US$ 83,000 - 110,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
COLDKING
Model:
AJC9600RE1
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Jinan Atop Industry & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name COLDKING
Model AJC9600RE1
Place of Origin China
Transmission Type Manual
Condition New
Horsepower 251 - 350hp
Emission Standard Euro 4
Fuel Type Diesel
Dimensions (L x W x H) (mm) 12.0m (L) x 2.55m (W) x 4.0m(H)
Box Dimensions (L x W x H) (mm) 9.6m (L) x 2.55m (W) x 2.7m (H)
Temperature Range +30C to -25C
Gross Vehicle Weight 31000
Truck Chassis
Chassis Brand
Sino-Truck
Chassis Model
T5G 340
Steering Wheel
Left Hand Drive
Drive Train
8 x 4

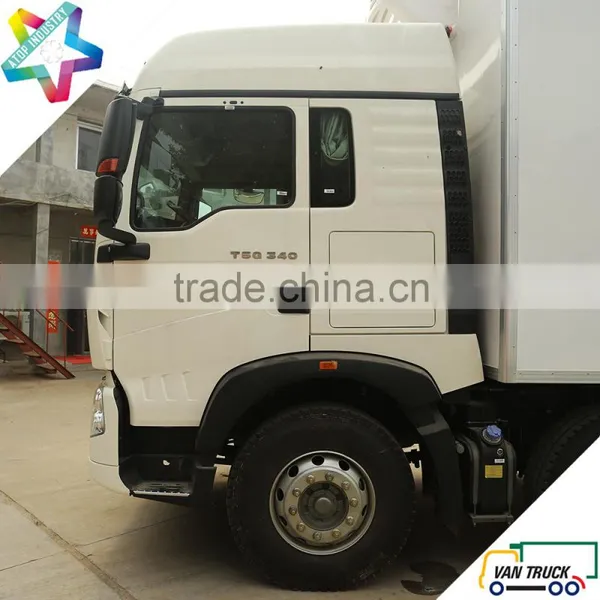

Cab Style
Single Cab With Sleeper
Seating Capacity
2/3
G.V.W
31,000 Kgs
Kerb Weight
12,950 Kgs
Rated Payload
18,050 Kgs
Overall Dimension
12.0m(L)x2.55m(W)x4.0m(H)
Wheelbase
1,800 + 4,600 + 1,350mm
Max. Speed
110Km/h
Rim/Tires
295/80R22.5
Front Track
2,035/2,035mm
Rear Track
1,850/1,850mm

Multi-Function Steering Wheel Rim; Manual Tiltable & Collapsible Steering Column; With Three Points Pre-Tensioner Seat Safety Belt; With Power Windows, With AM/FM + AUX + USB Audio Device; With Fabric Seat Covers; With Power Door Locks;  With 2 Audio Speaker

Engine Brand
Sino-Truck
Engine Model
MC07.34-50
Engine Emission
EURO 5
Displacement
6,870cc
Max. Power
248Kw (340Hp)
Max. Torque
1,250N.m
No. of Cylinder
6
Key Features
Intercooled; High Pressure Common Rail Direct Fuel Injection; Waste Gated Turbocharger

8 x 4 heavy duty chassis with rugged & weight-saving leaf suspension with parabolic springs and specially attuned shock absorber and stabilizer scores high through good roll stabilization and track-keeping

MAN  Style cab for personal items there is a large, illuminated stowage compartment, accessible from outside and inside

Modern cab with two comfor beds and versatile shelving for maximum comfort &  optimal freedom of movement in long-haul transport

Truck Body Details
Truck Body
Key Features
ColdKing refrigerated body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).

Truck Body Outer Size
9.6m(L)x2.55m(W)x2.7m (H)

Truck Body Inner Size
9.39m(L)x2.35m(W)x2.49m (H)
Roof/Floor Panel
105mm Thickness
Side Wall Panel
85mm Thickness
Front Wall Panel
105mm Thickness
Rear Door Panel
85mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP

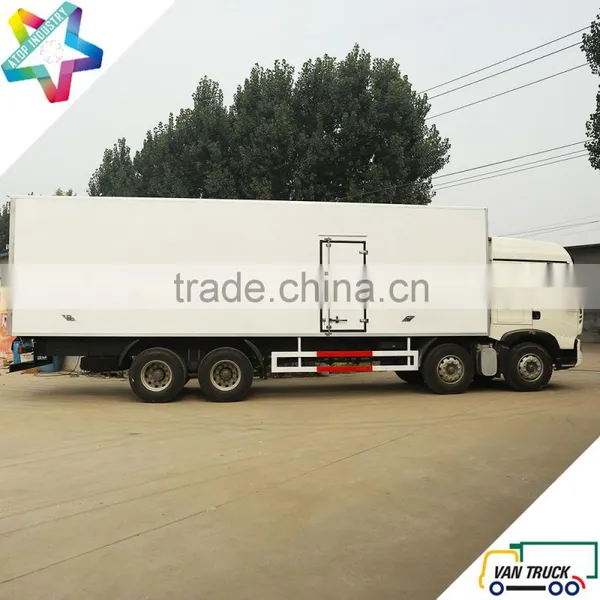

Side Door Quantity
1 Set
Side Door Location
1 Set On Right Side Wall
Side Door Type
Single Opening
Side Door Size
900mm(W) x 1,800mm(H)

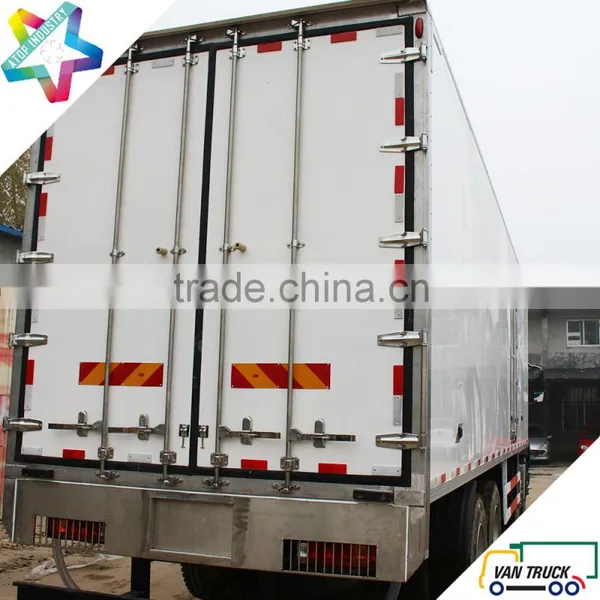

Rear Door Type
Full Size Double Opening Rear Door, Right Hnad Rear Door Open First
Multi-Temperature
System Type
None, Optional
Truck Body Flooring
Aluminum Alloy T Type Airflow Flooring
Cargo Control System
None, Optional
Ceiling Light
4 (Four) Sets of 12/24V Multi-Voltage LED
Marker Light
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
European Standard -40C PVC Strip Curtain System For Rear Door

Refrigeration Unit       Service Ladder
Stainless Steel
Refrigeration Unit      Service Platform
None, Unavailable

Aluminum alloy T type airflow circulation flooring

Speciallly designed rear door assembly with stainless steel lock sets & hinges

Zinc-coated access ladder for comfort working and loading & unloading

Refrigeration Unit
Refrigeration Unit Brand
Carrier
Refrigeration Unit Model
Supra 1050
Refrigeration Unit Type
Self-Powered Diesel Engine Driven, Condenser & Evaporator Combined
Refrigerant
HFC R404a
Condenser Mounted Method
Over-Cab
Compressor Model
05K4
Compressor No. of Cylinders
4
Compressor Displacement
400cm3
Max. Recommended Speed
Self-Powered Diesel Engine
*Only For Self-Powered Diesel Engine Driven Refrigeration Unit
Model
CT3-69TV
No. of Cylinders
3
Displacement
1,123m3
Maintenance Interval
750Hrs/1,000Hrs
Airflow
*On High Speed Engine Operation & 0Pa Static Pressure
Airflow Volume
3,350m3/Hr
Discharge Velocity (Air Throw)
Refrigeration Capacity: System Net Cooling Capacity
@ +30C Ambient Temperature Per A.T.P. Procedure

Return Air To Evaporator
0C
-20C
Refrigeration Capacity
(On Engine Power)
9,100W
5,600W
Electric Stand-By System
Available
Refrigeration Capacity
(On Electric Stand-By)
7,800W
5,000W
Defrost
Automatic Hot Gas Defrost/Manual Defrost

Powered by special clean and silent CT3-69TV diesel engine, which provides maximum cab clearance and reduced truck body height on conventional chassis

Automatic cooling by programmabletemperature control system; In-cab remote display and control

Optional Items

Hydraulic Taillift

Aluminium alloy or steel platform hydraulic taillift are available

Cargo Control System

Smart & customized cargo Loading control system

Meat Hanging System

Heavy duty meat hanging system with stainless steel meat hooks and aluminum alloy sliding rails

Multi-Temperature Partition

Multi-temperature purpose longitudinally moveable, insulated transverse partition wall

Cargo Versatile Shelving

Offers a wide variety of cargo shelving from stainless steel to aluminum alloy

Products Show

16T Refrigerated Truck

7.2m refrigerated/reefer truck body fitted on Isuzu FTR 190Hp truck chassis

31T Refrigerated Truck

9.6m refrigerated/reefer truck body fitted on Sino-Truck Howo 336Hp truck chassis

31T Meat Reefer Truck

9.6m meat refrigerated/reefer truck body fitted on SHACMAN M3000 310Hp truck chassis
