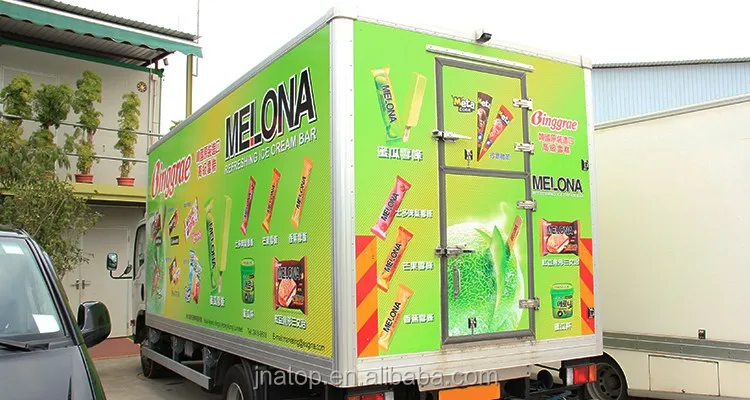

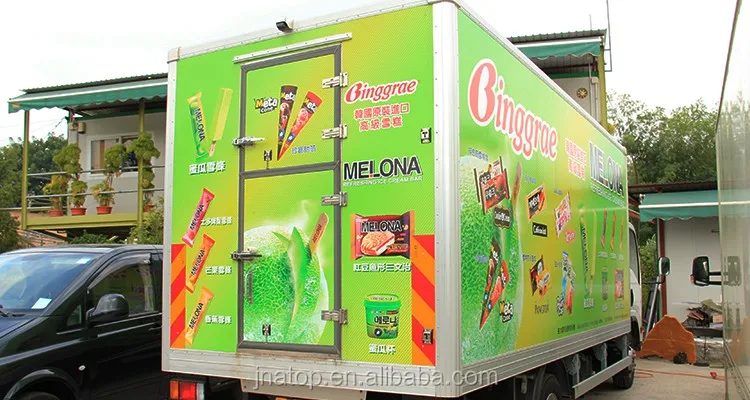

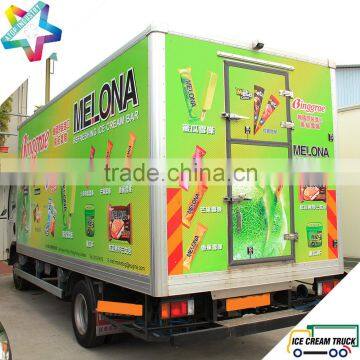

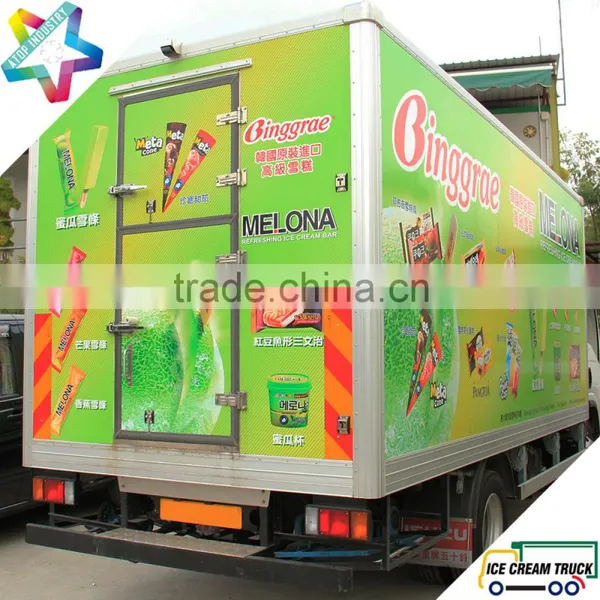

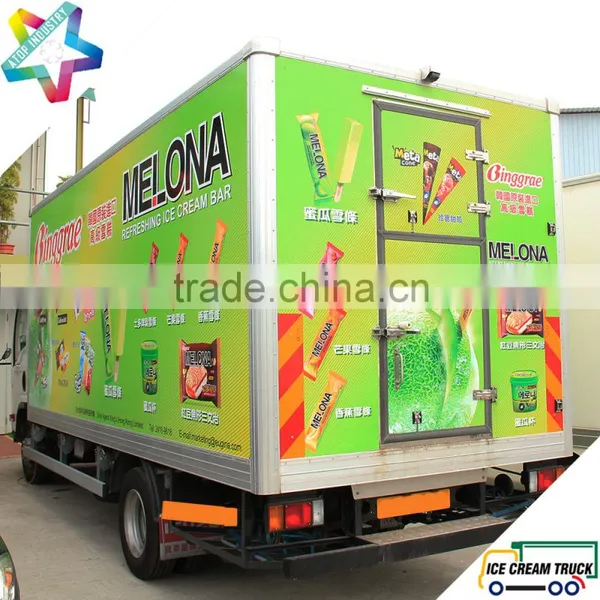

4.9m Eutectic Refrigerated Truck Body Ice Cream Truck

4.9m Eutectic Refrigerated Truck Body Ice Cream Truck thumbnail-1
4.9m Eutectic Refrigerated Truck Body Ice Cream Truck thumbnail-2
4.9m Eutectic Refrigerated Truck Body Ice Cream Truck thumbnail-3
4.9m Eutectic Refrigerated Truck Body Ice Cream Truck thumbnail-4
4.9m Eutectic Refrigerated Truck Body Ice Cream Truck thumbnail-5
4.9m Eutectic Refrigerated Truck Body Ice Cream Truck thumbnail-6
4.9m Eutectic Refrigerated Truck Body Ice Cream Truck photo-1
4.9m Eutectic Refrigerated Truck Body Ice Cream Truck photo-2
4.9m Eutectic Refrigerated Truck Body Ice Cream Truck photo-3
4.9m Eutectic Refrigerated Truck Body Ice Cream Truck photo-4
4.9m Eutectic Refrigerated Truck Body Ice Cream Truck photo-5
4.9m Eutectic Refrigerated Truck Body Ice Cream Truck photo-6
US$ 16,500 - 18,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
COLDKING
Model:
AJC4900IC2
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Jinan Atop Industry & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Qingdao/Tianjin Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name COLDKING
Model AJC4900IC2
Place of Origin China
Transmission Type Manual
Condition New
Horsepower 150 - 250hp
Emission Standard Euro 4
Fuel Type Diesel
Dimensions (L x W x H) (mm) 7000mm(L) x 2300mm(W) x 3200mm(H)
Box Dimensions (L x W x H) (mm) 4900mm(L) x 2200mm(W) x 2000mm(H)
Temperature Range -25C to -40C, -40C To -25C
Gross Vehicle Weight 10000
Truck Body Details


Key Features
ColdKing ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Ice Cream Truck Body Outer Size
4.9m(L) x 2.2m(W) x 2.0m(H)
eutectic ice cream truck body
Ice Cream Truck Body Inner Size
4.69m(L) x 1.99m(W) x 1.79m(H)
eutectic ice cream truck body
Roof/Floor Panel
105mm Thickness
Side Wall Panel
105mm Thickness
Front Wall Panel
105mm Thickness
Rear Door Panel
105mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
None
Side Door Location
None
Side Door Type
None
Side Door Size
None

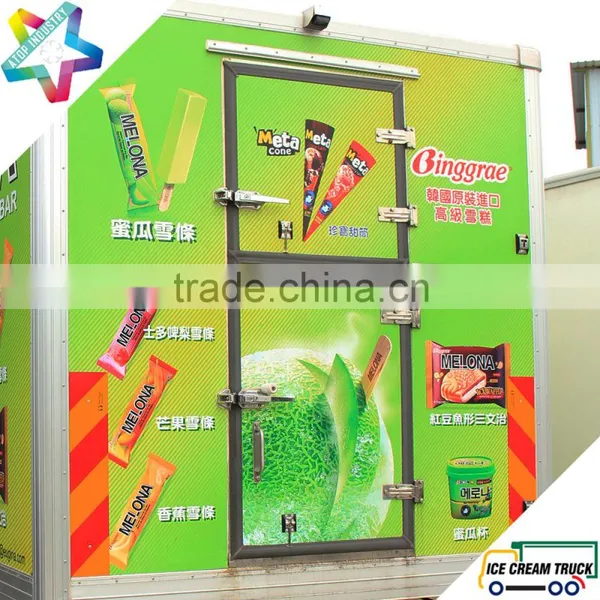

Rear Door Type
800mm(W) x 1,600mm(H) Vertical Double Opening Rear Door eutectic ice cream truck body
Truck Body Flooring
Reinforced Floor Covered With 3.0mm Thickness Aluminum Checkered Plate
Cargo Loading Control System

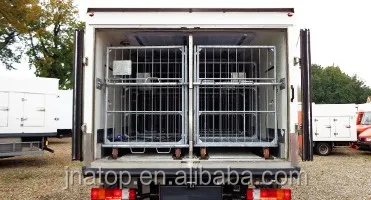

Stainless Steel Racks eutectic ice cream truck body
Ceiling Light
ice cream truck body
4 (Four) Sets of 12/24V Multi-Voltage LED
Marker Light
ice cream truck body
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch
ice cream truck body
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
ice cream truck body
European Standard -40C PVC Strip Curtain System For Rear Doors
Refrigeration Unit Service Ladder
Stainless Steel eutectic ice cream truck body

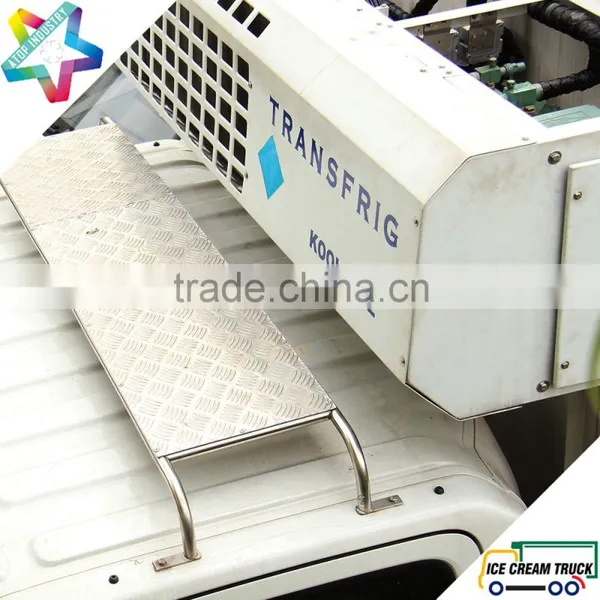

Refrigeration Unit Service Platform
Stainless Steel + Aluminum Chekered Plate

Lock Set With Internal Release Device

Optional lock set with internal release device for emergency inside opening for side door and rear door

Aluminum Flooring ice cream truck body

Reinforced Floor Covered With 3.0mm Thickness Aluminum Checkered Plate eutectic ice cream truck body

Customized Size Rear Door

Customized vertical double opening rear door with internal release device for emergency inside opening.

Internal Cargo Bracket

Internal stainless steel cargo loading bracket for standard & efficient cargo loading & unloading management.

Customized Size Side Door

Customized size single opening side door with internal release device for emergency inside opening.

Kooltube Unit

Key Features ice cream truck body

ColdKing Kooltube is a holdover or latent heat storage system.
It is one of the simplest refrigeration systems and has been around in its basic configuration for many years. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round.
Refrigeration Unit Model
KT430-14N
Refrigeration Unit Brand
ColdKing
Refrigeration Unit Type
AC Power Driven Eutectic Solution, Condenser Split  eutectic ice cream truck body
Refrigeration Capacity
3,145W(@ -40C)
4,230W(@ -35C)
7,140W (@ -25C)
Total Refigeration Heat Exchange Rate
13,846Kcal/h eutectic ice cream truck body
Refrigerant
HFC R404a
Defrost
Manual Warm Water

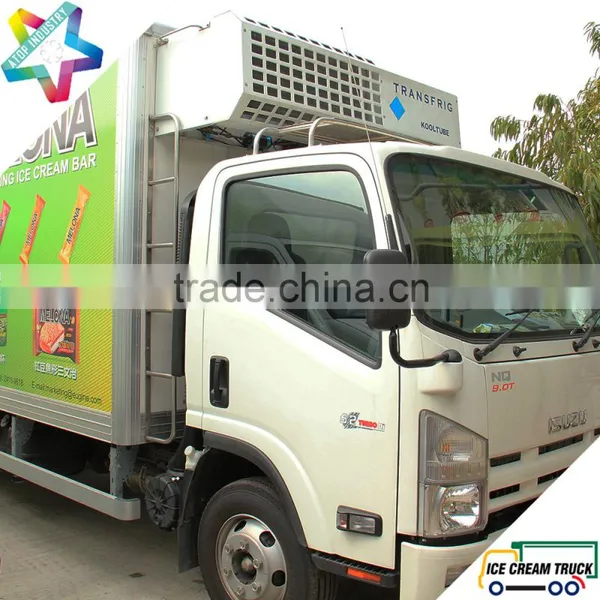

Condenser Mounted Method
Over-Cab Mounted
Kooltube Beams Assembly
4.3m(L) x 14 Pcs
Compressor Brand & Power
Bitzer 4.0Hp
Expansion Valve
Danfoss
Condenser Fan
EBM
Thermometer
REFCO
Power Supply Voltage/Phase/Frequency
220V/3Ph/60Hz eutectic ice cream truck body

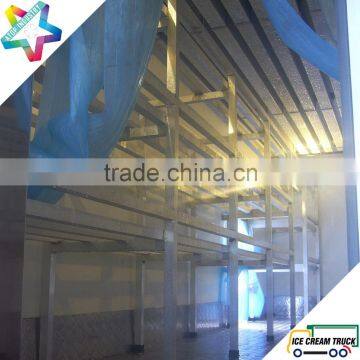

4300mm(L)  x 14 pieces Kooltube Beams eutectic ice cream truck body

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications. eutectic ice cream truck body

Bitzer Compressor ice cream truck body

Germany brand BITZER compact semi-Hermetic reciprocating compressors boast an efficient suction gas–cooled motor, high-quality valve plates, wear-resistant drive gears and adjustable capacity control. This gives the BITZER compressor, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison. eutectic ice cream truck body

Quality Components ice cream truck body

Quality components from EBM Fans, Danfoss Expansion Valve, Schneider Electric Control, etc.  eutectic ice cream truck body reefer truck body eutectic ice cream truck body reefer truck body eutectic ice cream truck body eutectic ice cream truck body reefer truck body

Why Kooltube
The advantages of KOOLTUBE EUTECTIC refrigeration systems as opposed to other EUTECTIC PLATE refrigeration system are as following:
Lighter:
For same refrigeration capacity, KOOLTUBE EUTECTIC refrigeration system is15% lighter than EUTECTIC PLATES refrigeration system. It is helpful to reduce curb weight and to raise loading capacity.
Better Stability:
Normally, there are need 3-8 pieces EUTECTIC PLATES for usual dimension truck body, but for KOOLTUBE EUTECTIC system is just need 8 -12 pieces tubes inside. In case of that one of them damaged or shut down,that is means KOOLTUBE system just lost 1/8 or 1/12, but for EUTECTIC PLATES is 1/3 or 1/8. It will harm goods’ quality badly.
Easy installation:
Due to rectangular tube structure and lighter weight (10.5kg/M), Kooltube is easier installation than EUTECTIC PLATES. It is enough to install whole kooltube system by two skilled workers. But, for eutectic plates system, the 80kg of each plate will occupy 3-4 workers to install it. And the design of each one or two eutectic plates with one expansion valve is challenge for engineer to make a symmetrical refrigeration effect. However, Kooltube eutectic just has one expansion valve for whole system. It is easy to adjust whole system at good condition.
Better Efficient:
Scientifically, cold Air exchange downwards. As eutectic plates is flat structure. That is means it has almost 50% performance is useless because one surface of eutectic Plate is face to roof panel.It just have 50% surface to working for body space, so they need install more eutectic plate inside body to remedy its shortage. But Kooltube eutectic system is efficient structure, it just have about 20% surface is face to roof panel; almost 80% surface is available to work.
Safety & Long Life:
KOOLTUBE’s eutectic solution is safe, non-toxic and non-corrosive for foods. eutectic plate’s cooling brine mixture solution is corrosive and skin irritation. And, for long time working, once rusting on iron shell, its corrosive mixture solution will erode and perforate eutectic plate easily. If so, when its mixture solution falls onto skin or foods, it is terribly.
Excellent Suitability:
Kooltube is tailor-made products, so we can meet any body dimension requirements. eutectic plates are standard dimension.
Faster:
Due to efficient structure and powerful condenser unit, at same body dimension and refrigeration capacity, Kooltube absolutely provide enough frozing power to goods, and it will take less time than eutectic plate.
Item
KOOLTUBE
EUTECTIC PLATE
Weight
Light
Heavy
Materials
Aluminum Alloy & Stainless Steel
Galvanized Iron
Antirust
Excellent, never rust
Bad, easier rust to perforating action on iron shell
Safety
Non-toxic, non-corrosive eutectic solution
Corrosive cooling brine mixture solution
Skin Irritation
Non
Yes
Icing
Difficult
Easy
De-icing
Easy
Difficult
Optional Items

Hydraulic Tail Lift  eutectic ice cream truck body

Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available For Efficient Loading & Unloading Cargos That Are Transported By Pallets, Roll Carts etc. eutectic ice cream truck body

Roll Carts eutectic ice cream truck body

Roll carts for rapid and efficient loading, delivery and unloading goods. It was customized made according to inner dimension & configuration of refrigeration truck body.  eutectic ice cream truck body

Products Show

5.0m Ice Cream Truck Body

5.0m ice cream truck body fitted on UD truck chassis eutectic ice cream truck body

2.4m Ice Cream Pick Up Body

2.4m ice cream pickup body fitted on Toyota Hilux pickup chassis ice cream truck body

4.8m Ice Cream Truck Body

4.8m ice cream truck body fitted on Isuzu NPR truck chassis
