2.4m Eutectic Truck Body Toyota Hilux Pick up Ice Cream Truck Quality Choice Most Popular

2.4m Eutectic Truck Body Toyota Hilux Pick up Ice Cream Truck Quality Choice Most Popular thumbnail-1
2.4m Eutectic Truck Body Toyota Hilux Pick up Ice Cream Truck Quality Choice Most Popular thumbnail-2
2.4m Eutectic Truck Body Toyota Hilux Pick up Ice Cream Truck Quality Choice Most Popular thumbnail-3
2.4m Eutectic Truck Body Toyota Hilux Pick up Ice Cream Truck Quality Choice Most Popular thumbnail-4
2.4m Eutectic Truck Body Toyota Hilux Pick up Ice Cream Truck Quality Choice Most Popular thumbnail-5
2.4m Eutectic Truck Body Toyota Hilux Pick up Ice Cream Truck Quality Choice Most Popular thumbnail-6
2.4m Eutectic Truck Body Toyota Hilux Pick up Ice Cream Truck Quality Choice Most Popular photo-1
2.4m Eutectic Truck Body Toyota Hilux Pick up Ice Cream Truck Quality Choice Most Popular photo-2
2.4m Eutectic Truck Body Toyota Hilux Pick up Ice Cream Truck Quality Choice Most Popular photo-3
2.4m Eutectic Truck Body Toyota Hilux Pick up Ice Cream Truck Quality Choice Most Popular photo-4
2.4m Eutectic Truck Body Toyota Hilux Pick up Ice Cream Truck Quality Choice Most Popular photo-5
2.4m Eutectic Truck Body Toyota Hilux Pick up Ice Cream Truck Quality Choice Most Popular photo-6
US$ 9,000 - 11,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
COLDKING
Model:
AJC2400IC2
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Jinan Atop Industry & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name COLDKING
Model AJC2400IC2
Place of Origin China
Transmission Type Manual
Condition New
Emission Standard Euro 4
Fuel Type Diesel
Dimensions (L x W x H) (mm) 5000mm(L) x 1850mm(W) x 2250mm(H)
Box Dimensions (L x W x H) (mm) 2400mm(L) x 1800mm(W) x 1500mm(H)
Temperature Range -25C to -40C, -40C To -25C
Gross Vehicle Weight 3000
Truck Body Details


Key Features
ColdKing ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Ice Cream Truck Body Outer Size
2.4m(L) x 1.8m(W) x 1.5m(H)
eutectic ice cream truck body
Ice Cream Truck Body Inner Size
2.19m(L) x 1.59m(W) x 1.29m(H)
eutectic ice cream truck body
Roof/Floor Panel
105mm Thickness
Side Wall Panel
105mm Thickness
Front Wall Panel
105mm Thickness
Rear Door Panel
105mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
1 (One) Set
Side Door Location
1 Set On Left
Side Door Type
Single Opening
Side Door Size
600mm(W) x 900mm(H)
Rear Door Type
Full Size Double Opening Rear Door/600mm(W) x 900mm(H) Single Opening Rear Door
Truck Body Flooring
Reinforced Floor Covered With Removable PVC Grating eutectic ice cream pick up truck body
Cargo Loading Control System
None ice cream truck body
Ceiling Light
ice cream truck body
2 (Two) Sets of 12/24V Multi-Voltage LED
Marker Light
ice cream truck body
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch
ice cream truck body
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
ice cream truck body
European Standard -40C PVC Strip Curtain System For Side & Rear Doors
Refrigeration Unit Service Ladder
None
ice cream truck body
Refrigeration Unit Service Platform
None eutectic ice cream pick up truck body

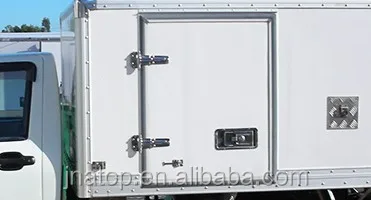

Singel Opening Side Door

Customized Size Single Opening Side Door For Rapid Unloading & Delivery of Cargos

Removable PVC Grating Flooring

Reinforced Floor Covered With Removable PVC Grating Flooring To Prevent Packages From Condensing Water i

1.7m(W) x 1.5m(H) Rear Door


1.8m(W) x 1.5m(H) Rear Door


1.8m(W) x 1.3m(H) Rear Door


Optional Items

Body Ladder & Top Brackets

Stainless Steel Body Ladder & Top Brackets For Additional Cargo & Used Packages reefer truck

Roll Cartsice cream truck body

Roll carts for rapid and efficient loading, delivery and unloading goods. It was customized made according to inner dimension & configuration of refrigeration truck body. reefer truck

Kooltube Unit

Key Features ice cream truck body

ColdKing Kooltube is a holdover or latent heat storage system.
It is one of the simplest refrigeration systems and has been around in its basic configuration for many years. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round.
Refrigeration Unit Model
KT180-08N
Refrigeration Unit Brand
ColdKing
Refrigeration Unit Type
AC Power Driven Eutectic Solution, Condenser Split ice cream truck body
Refrigeration Capacity
1,650W (@ -40C)
2,295W (@ -35C)
3,960W (@ -25C)
Total Refigeration Heat Exchange Rate
3,312Kcal/h ice cream truck body reefer truck
Refrigerant
R404a
Defrost
Manual Warm Water
Condenser Mounted Method
Over-Cab Mounted
Kooltube Beams Assembly
1.8m(L) x 08 Pcs
Compressor Brand & Power
Bitzer 2.0Hp
Expansion Valve
Danfoss
Condenser Fan
EBM
Thermometer
REFCO
Power Supply Voltage/Phase/Frequency
220V/3Ph/60Hz ice cream truck body reefer truck

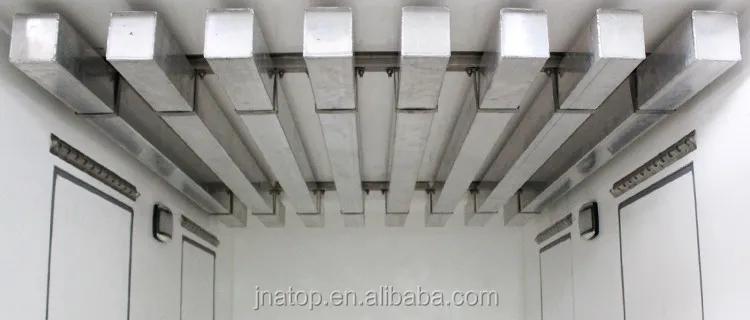

1800mm(L)  x 08 pieces Kooltube Beams ice cream truck body

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications. ice cream truck body reefer truck

Bitzer Compressor ice cream truck body

Germany brand BITZER compact semi-Hermetic reciprocating compressors boast an efficient suction gas–cooled motor, high-quality valve plates, wear-resistant drive gears and adjustable capacity control. This gives the BITZER compressor, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison.

ice cream truck body reefer truck truck body  ice cream truck body reefer truck truck body ice cream truck body reefer truck truck body

Quality Components ice cream truck body

Quality components from EBM Fans, Danfoss Expansion Valve, Schneider Electric Control, etc. ice cream truck body reefer truck truck body  reefer truck truck body  reefer truck truck body  reefer truck truck body  reefer truck truck body ice cream truck body reefer truck truck body ice cream truck body reefer truck truck body reefer truck truck body reefer truck truck body reefer truck truck body reefer truck truck body ice cream truck body reefer truck truck body

Products Show

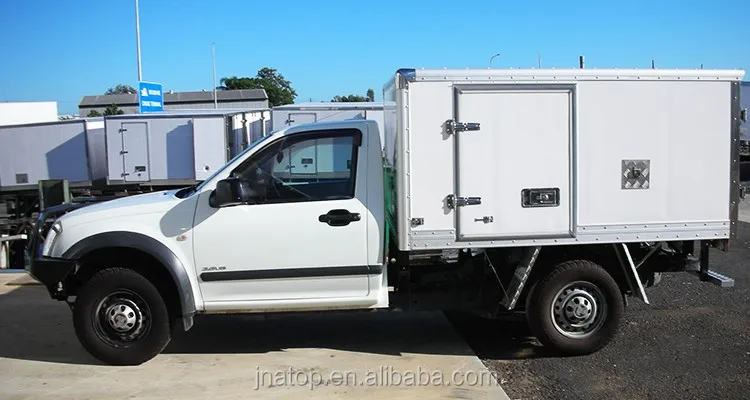

2.4m UTE Pickup Truck

2.4m 1.0 Tonne Refrigerated UTE pickup truck ice cream truck body reefer truck truck body

2.45m UTE Pickup Truck

2.45m 1.0 Tonne UTE pickup truck
ice cream truck body reefer truck truck body

4.8m Ice Cream Truck Body

4.8m ice cream truck body fitted on Isuzu NPR truck chassis ice cream truck body reefer truck truck body

Packing & Delivery
Professional Packing & Loading For Different Transportation Method ice cream truck body reefer truck truck body

Export Truck Fleet In Seaport ice cream truck body reefer truck truck body

Large Order Quantity Queue Up Delivery ice cream truck body reefer truck truck body

Our Services

1. OEM Manufacturing welcome: Product, Package...  ice cream truck body reefer truck truck body
2. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you. ice cream truck body reefer truck truck body

FAQ

Q1. What is your terms of payment? reefer truck truck body
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance payment. reefer truck truck body

Q2. What is your terms of delivery? reefer truck truck body
A: EXW, FOB, CFR, CIF. reefer truck truck body


Q3. How about your delivery time?  reefer truck truck body

A: Generally, it will take 30 to 60 days after receiving your deposit payment. The specific delivery time depends
on the items and the quantity of your order. reefer truck truck body

Q4. Do you test all your goods before delivery? reefer truck truck body
A: Yes, we have 100% test before delivery. reefer truck truck body
