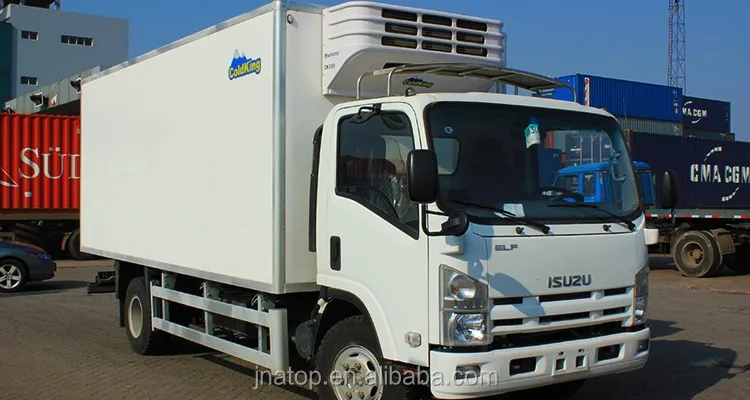

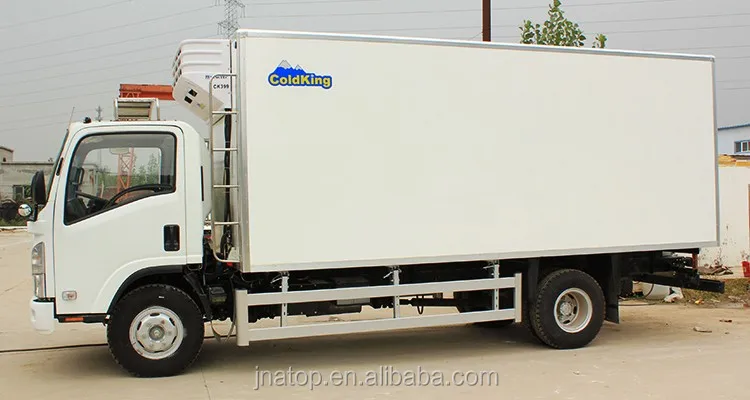

10T Middle Duty 5.7m Refrigerated Truck Body 700P NPR Chassis Seafood Reefer Truck Quality Choice

Name: 10T Middle Duty 5.7m Refrigerated Truck Body 700P NPR Chassis Seafood Reefer Truck Quality Choice
Brand: COLDKING
SKU: 101684347
Availability: InStock

10T Middle Duty 5.7m Refrigerated Truck Body 700P NPR Chassis Seafood Reefer Truck Quality Choice thumbnail-1

10T Middle Duty 5.7m Refrigerated Truck Body 700P NPR Chassis Seafood Reefer Truck Quality Choice thumbnail-2

10T Middle Duty 5.7m Refrigerated Truck Body 700P NPR Chassis Seafood Reefer Truck Quality Choice thumbnail-3

10T Middle Duty 5.7m Refrigerated Truck Body 700P NPR Chassis Seafood Reefer Truck Quality Choice thumbnail-4

10T Middle Duty 5.7m Refrigerated Truck Body 700P NPR Chassis Seafood Reefer Truck Quality Choice thumbnail-5

10T Middle Duty 5.7m Refrigerated Truck Body 700P NPR Chassis Seafood Reefer Truck Quality Choice thumbnail-6

10T Middle Duty 5.7m Refrigerated Truck Body 700P NPR Chassis Seafood Reefer Truck Quality Choice photo-1

10T Middle Duty 5.7m Refrigerated Truck Body 700P NPR Chassis Seafood Reefer Truck Quality Choice photo-2

10T Middle Duty 5.7m Refrigerated Truck Body 700P NPR Chassis Seafood Reefer Truck Quality Choice photo-3

10T Middle Duty 5.7m Refrigerated Truck Body 700P NPR Chassis Seafood Reefer Truck Quality Choice photo-4

10T Middle Duty 5.7m Refrigerated Truck Body 700P NPR Chassis Seafood Reefer Truck Quality Choice photo-5

10T Middle Duty 5.7m Refrigerated Truck Body 700P NPR Chassis Seafood Reefer Truck Quality Choice photo-6

US$ 48,000 - 50,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Brand Name:

COLDKING

Model:

AJC5700SD1

Place of Origin:

China

Contact Supplier Request Quote Chat Now

Jinan Atop Industry & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Qingdao Port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name COLDKING

Model AJC5700SD1

Place of Origin China

Transmission Type Manual

Condition New

Horsepower 150 - 250hp

Emission Standard Euro 4

Fuel Type Diesel

Dimensions (L x W x H) (mm) 7,500mm (L) x 2,300mm (W) x 3,400mm (H)

Box Dimensions (L x W x H) (mm) 5,700mm(L) x 2,260mm(W) x 2,400mm(H)

Temperature Range +30C to -25C

Gross Vehicle Weight 10000

Truck Chassis

Chassis Brand	Isuzu	Chassis Model	NPR 700P
Steering Wheel	Left Hand Drive	Drive Train	4 x 2 seafood truck
Cab Style	Single Cab seafood truck	Seating Capacity	3 seafood truck

G.V.W	10,000 Kgs
Kerb Weight	5,200 Kgs
Rated Payload	4,800 Kgs

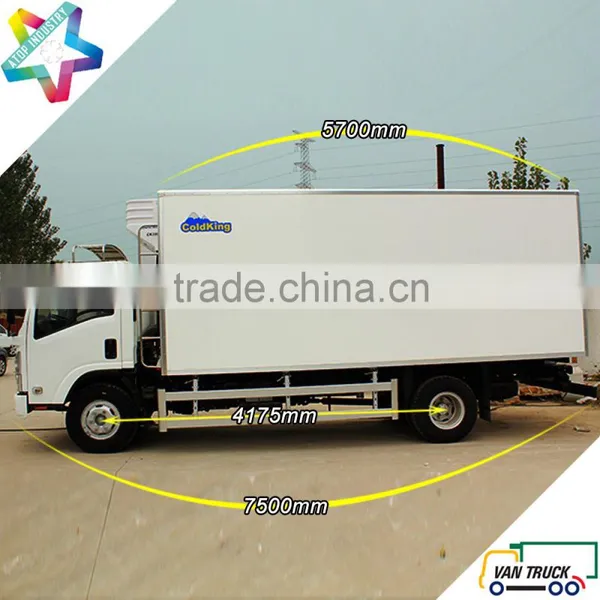

Overall Dimension	7.5m (L)x2.3m (W)x3.4m(H)
Wheelbase	4,175mm seafood truck
Max. Speed	110Km/h seafood truck
Rim/Tires	8.25R16 x 7 seafood truck
Front Track	1,680mm
Rear Track	1,650mm

Manual Tiltable & Collapsible Steering Column; With Three Points Pre-Tensioner Seat Safety Belt; With AM/FM + AUX + USB Audio Device; With Fabric Seat Covers; With 2 Audio Speaker;

Engine Brand	Isuzu
Engine Model	4HK1-TCG40 seafood truck
Engine Emission	EURO 4/EURO 5 seafood truck
Displacement	5,193cc seafood truck
Max. Power	139Kw (190Hp) seafood truck
Max. Torque	510N.m seafood truck
No. of Cylinder	4 seafood truck
Key Features	Intercooled; High Pressure Common Rail Direct Fuel Injection; Waste Gated Turbocharger

Aluminum alloy vertical tilted side guard assembly.seafood truck

Global updated Style Cab seafood truck

Modern cab with bed are optional for maximum comfort in long-haul transport. seafood truck

Truck Body Details

Seafood Truck Body Key Features	ColdKing seafood truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Seafood Truck Body Outer Size	5.7m(L) x 2.26m(W) x 2.4m(H) seafood truck	Seafood Truck Body Inner Size	5.51m(L) x 2.09m(W) x 2.19m(H) seafood truck
Roof/Floor Panel	105mm Thickness	Side Wall Panel	85mm Thickness
Front Wall Panel	105mm Thickness	Rear Door Panel	85mm Thickness
Panel Structure	All Closed Sandwich	Panel Insulation	FRP + PU Foam + FRP
Side Door Quantity	None seafood truck	Side Door Location	None seafood truck
Side Door Type	None seafood truck	Side Door Size	None seafood truck

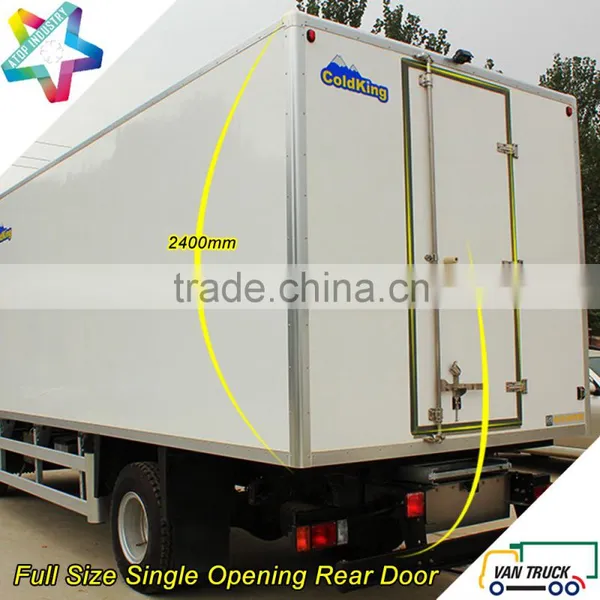

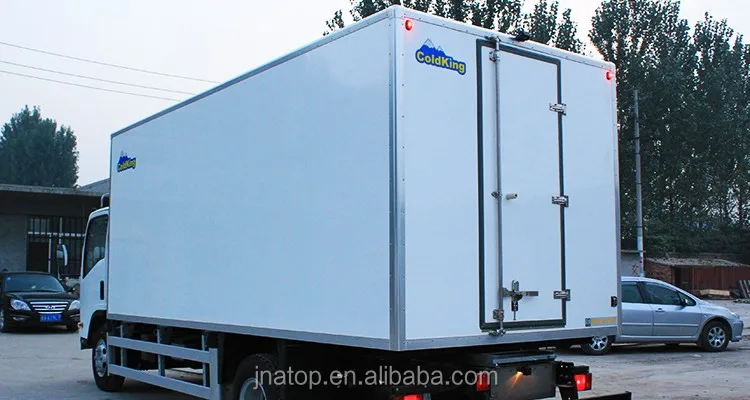

Rear Door Type	900mm(W) x 1,900mm(H) Single Opening Rear Door seafood truck
Seafood Truck Body Flooring	Stainless Steel Sheet seafood truck seafood truck seafood truck seafood truck seafood truck seafood truck seafood truck seafood truck seafood truck seafood truck
Cargo Control System	Stainless Steel Rack bracket with stainless steel cargo bar seafood truck seafood truck
Ceiling Light seafood truck	3 (Three) Sets of 12/24V Multi-Voltage LED	Marker Light seafood truck	2 Sets Of White LED On Front; 2 Sets Of Red LED On Rear
Ceiling Light Switch seafood truck	1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch	Insulating Curtain seafood truck	European Standard -40C PVC Strip Curtain System For Rear Door
Refrigeration Unit Service Ladder	Stainless Steel seafood truck	Refrigeration Unit Service Platform	Aluminum Alloy + Stainless Steel seafood truck

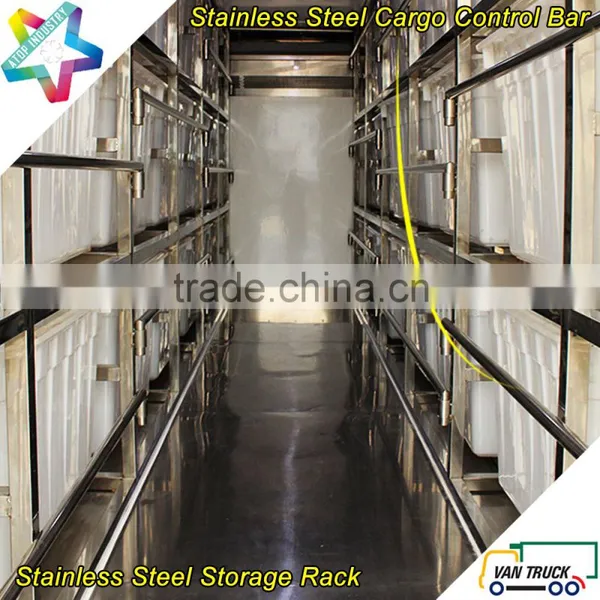

SS 304 Stainless Steel High Strength Storage Rach With Stainless Steel Cargo Control Bar

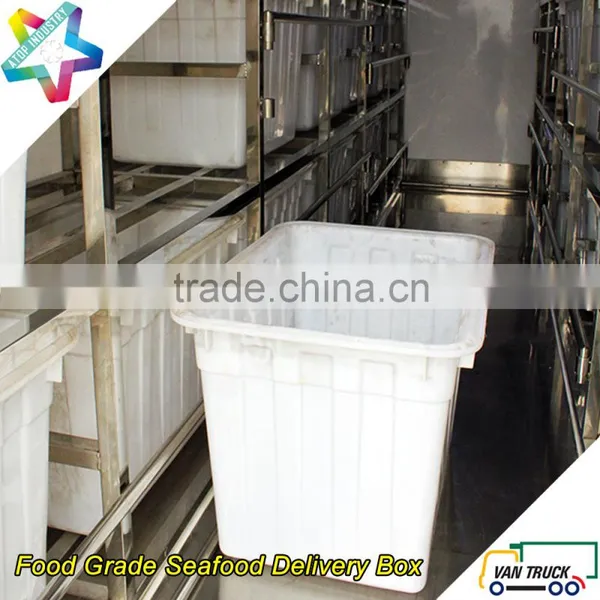

Foode Grade Seafood Delivery PVC Box To Meet Low Temperature Working Condition

Single Opening Rear Door With Access Ladder & CCTV Color TFT-LCD Monitor Truck Reverse View Camera System

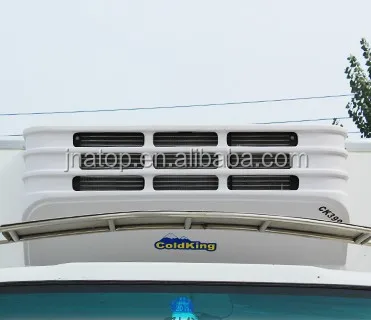

Refrigeration Unit

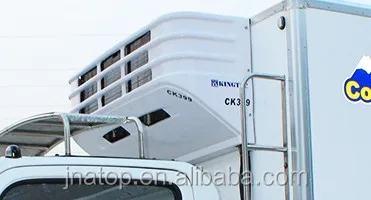

Refrigeration Unit Brand	Kingtec	Refrigeration Unit Model	CK399
Refrigeration Unit Type	Truck Engine Driven, Condenser & Evaporator Combined seafood truck
Refrigerant	HFC R404a	Condenser Mounted Method	Over-Cab
Compressor
Compressor Model	seafood truck	Compressor No. of Cylinders	6 seafood truck
Compressor Displacement	162cc	Max. Recommended Speed	3,000rpm
Airflow *On High Speed Engine Operation & 0Pa Static Pressure
Airflow Volume seafood truck	1,650m3/Hr	Discharge Velocity (Air Throw)	seafood truck

Refrigeration Capacity: System Net Cooling Capacity @ +30C Ambient Temperature Per A.T.P. Procedure
Return Air To Evaporator	0C	-20C
Refrigeration Capacity (On Engine Power)	4,330W	2,240W
Electric Stand-By System	Optional & Available
Refrigeration Capacity (On Electric Stand-By)	3,080W	1,800W
Defrost
Automatic Hot Gas Defrost/Manual Defrost

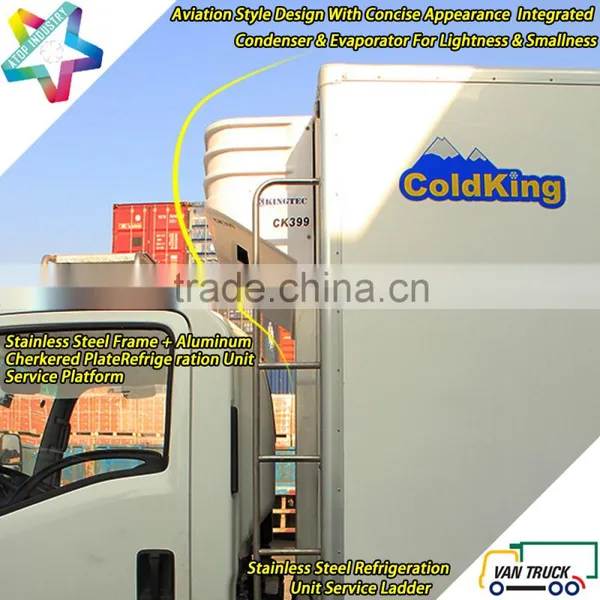

Aviation Style Design With Concise Appearance Integrated Condenser & Evaporator For Lightness & Smallness

seafood truck seafood truck seafood truck seafood truck

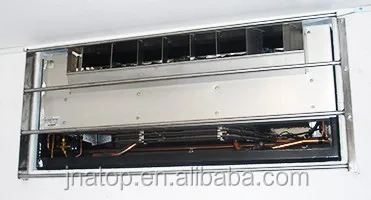

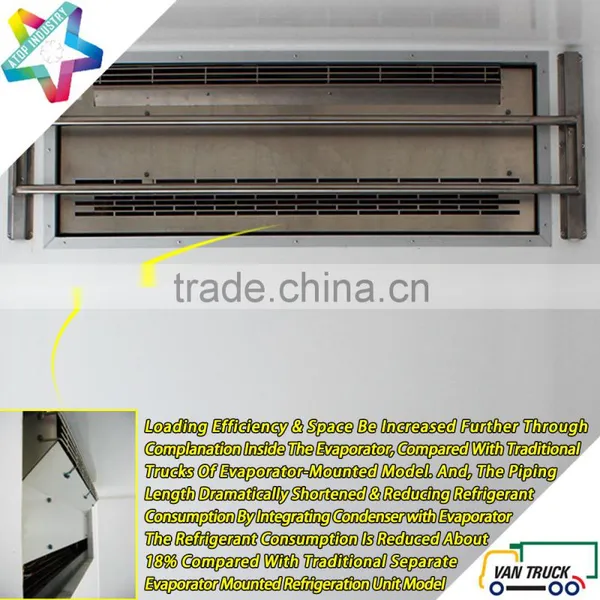

Loading Efficiency & Space Be Increased Further Through Complanation Inside The Evaporator. And, The Piping Length Dramatically Shortened & Reducing Refrigerant Consumption By Integrating Condenser with Evaporator.

Optional Items
