2.7m Eutectic Truck Body for Hyundai H100 Truck Chassis Ice Cream Truck

2.7m Eutectic Truck Body for Hyundai H100 Truck Chassis Ice Cream Truck photo-1

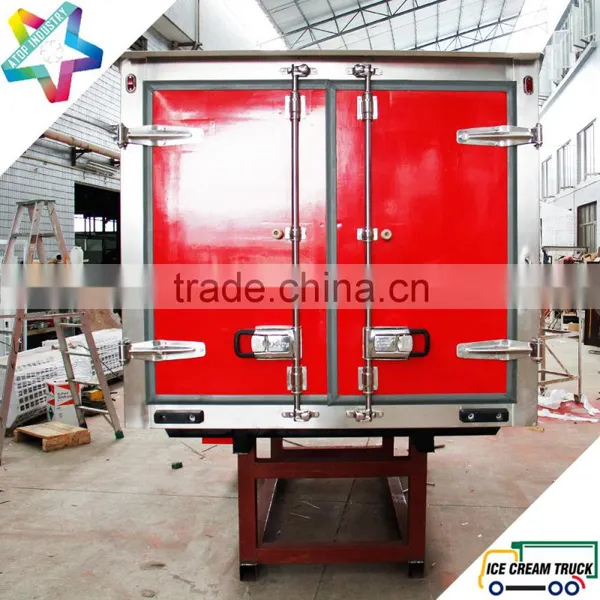

2.7m Eutectic Truck Body for Hyundai H100 Truck Chassis Ice Cream Truck photo-2

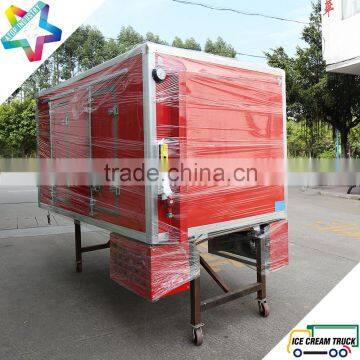

2.7m Eutectic Truck Body for Hyundai H100 Truck Chassis Ice Cream Truck photo-3

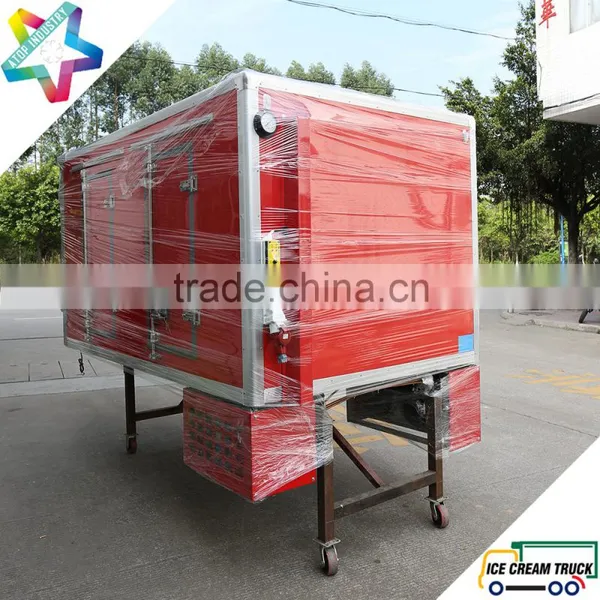

2.7m Eutectic Truck Body for Hyundai H100 Truck Chassis Ice Cream Truck photo-4
2.7m Eutectic Truck Body for Hyundai H100 Truck Chassis Ice Cream Truck photo-5
2.7m Eutectic Truck Body for Hyundai H100 Truck Chassis Ice Cream Truck photo-6
US$ 13,000 - 14,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
COLDKING
Model:
AJC2700IC2
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name COLDKING
Model AJC2700IC2
Place of Origin China
Transmission Type Manual
Condition New
Emission Standard Euro 4
Fuel Type Diesel
Dimensions (L x W x H) (mm) 4800mm(L) x 1750mm(W) x 2300mm(H)
Box Dimensions (L x W x H) (mm) 2700mm(L) x 1700mm(W) x 1500mm(H)
Temperature Range -25C to -40C, -40C To -25C
Gross Vehicle Weight 3000
Truck Body Details

Ice Cream Truck Body

Key Features

ColdKing ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Truck Body Outer Size
2.7m(L)x1.7m(W)x1.5m(H)
ice cream truck body
Truck Body Inner Size
2.49m(L)x1.49m(W)x1.29m(H)
ice cream truck body
Roof/Floor Panel
105mm Thickness
Side Wall Panel
105mm Thickness
Front Wall Panel
105mm Thickness
Rear Door Panel
105mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
4 (Four) Sets
Side Door Location
2 Sets On Left/2 Sets On Right
Side Door Type
Single Opening
Side Door Size
580mm(W) x 1,100mm(H)
Rear Door Type
Full Size Double Opening Rear Door, Right Hnad Rear Door Open First
Truck Body Flooring
Reinforced Floor Covered With Removable PVC Grating ice cream truck body
Cargo Control System
Stainless Steel Internal Dividers To Divide 4 (Four) Cargo Spaces ice cream truck body
Ceiling Light ice cream truck body
2 (Two) Sets of 12/24V Multi-Voltage LED
Marker Light ice cream truck body
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch ice cream truck body
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain ice cream truck body
European Standard -40C PVC Strip Curtain System For Side & Rear Doors
Refrigeration Unit
Service Ladder
None/Optional ice cream truck body
Refrigeration Unit        Service Platform
None/Optional ice cream truck body

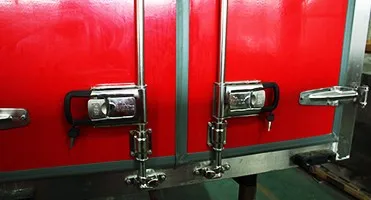

Full Size Double Opening Rear Door

With Full Sets of Stainless Steel Ice Cream Truck Body Lock Sets & Hinges, Sealed By Low Temperature High Quality Ice Cream Truck Body Door Gasket; ice cream truck body

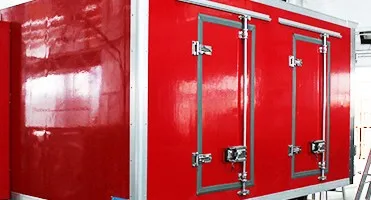

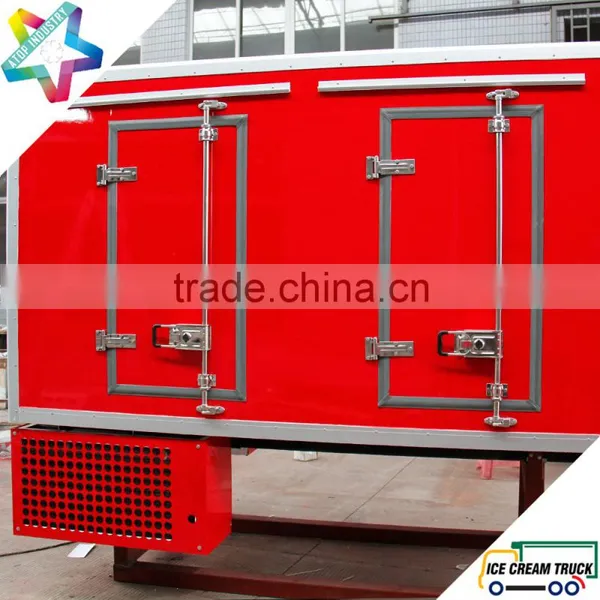

Single Opening Side Door

4 (Four) Sets of 580mm(W) x 1,100mm(H) Single Opening Ice Cream Truck Body Side Door, Each 2 (Two) Sets of Ice Cream Truck Body Side Door At Left & Right ice cream truck body

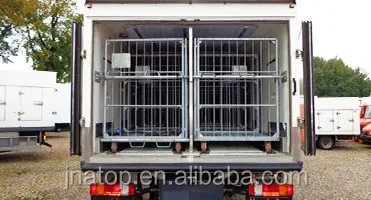

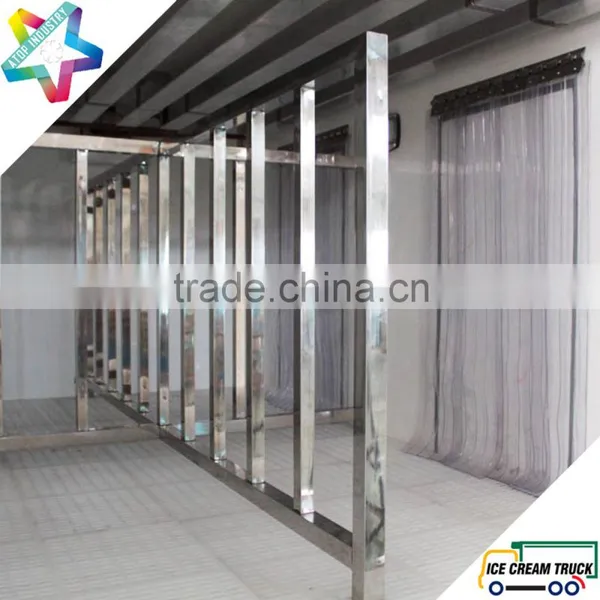

Internal Dividers
Internal Dividers In Stainless Steel To Divide 4 (Four) Cargo Space For Rapid & Efficient Loading & Delivery

Removable PVC Grating

Removable PVC Grating Is Good At Prevent Cargo Packages From Condensing Water Damage

Insulating Curtain

Full Sets of European Standard -40C PVC Strip Curtain System For Side & Rear Doors To Keep Avoid Cooling Lost

Kooltube Unit

Key Features ice cream truck body

ColdKing Kooltube is a holdover or latent heat storage system. It is one of the simplest refrigeration systems and has been around in its basic configuration for many years. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round.
Refrigeration Unit Model
KT205-08N
Refrigeration Unit Brand
ColdKing
Refrigeration Unit Type
AC Power Driven Eutectic Solution, Condenser Split ice cream truck body
Refrigeration Capacity
1,650W (@ -40C)
2,295W (@ -35C)
3,960W (@ -25C)
Total Refigeration Heat Exchange Rate
3,772Kcal/h ice cream truck body
Refrigerant
HFC R404a
Defrost
Manual Warm Water
Condenser Mounted Method
Under Chassis
Kooltube Beams Assembly
2.05m(L) x 08 Pcs
Compressor Brand & Power
Bitzer 2.0Hp
Expansion Valve
Danfoss
Condenser Fan
EBM
Thermometer
REFCO
Power Supply Voltage/Phase/Frequency
220V/3Ph/60Hz ice cream truck body

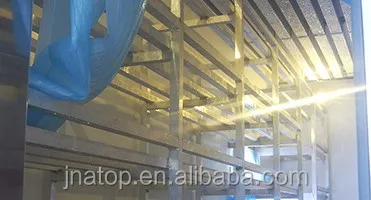

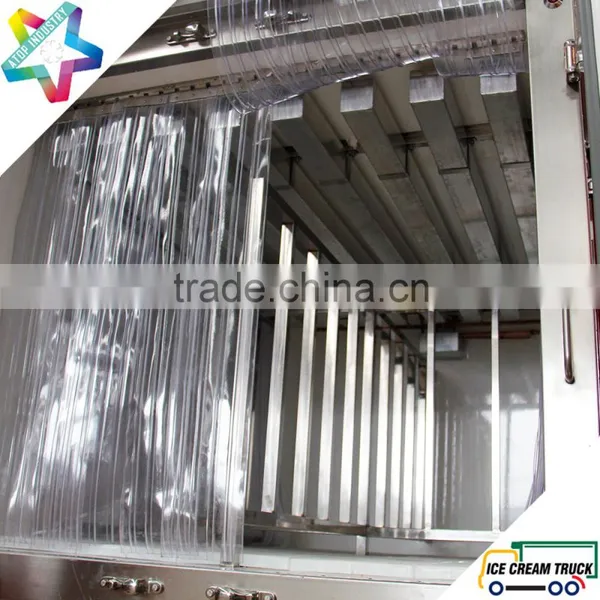

2050mm(L)  x 8 pieces Kooltube Beams ice cream truck body

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications.ice cream truck body

Bitzer Compressor ice cream truck

Germany brand BITZER compact semi-Hermetic reciprocating compressors boast an efficient suction gas–cooled motor, high-quality valve plates, wear-resistant drive gears and adjustable capacity control. This gives the BITZER compressor, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison. ice cream truck body ice cream container ice cream truck body ice cream container ice cream truck body ice cream container ice cream truck body ice cream truck

Quality Components ice cream truck

Quality components from EBM Fans, Danfoss Expansion Valve, Schneider Electric Control, etc.  ice cream truck body ice cream container ice cream truck body ice cream container ice cream truck body ice cream container ice cream truck body ice cream container ice cream truck body ice cream container ice cream truck body ice cream container ice cream truck body ice cream container ice cream truck body ice cream container ice cream truck body ice cream container ice cream truck body ice cream container

Optional Items

Hydraulic Tail Lift ice cream truck

Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available

Cargo Control System

Smart & customized cargo Loading control system

Roll Carts Ice Cream Truck Body

Roll carts for rapid and efficient loading, delivery and unloading goods ice cream truck body

Cargo Versatile Shelving

Offers a wide variety of cargo shelving from stainless steel to aluminum alloy

Products Show

5.0m Ice Cream Truck

5.0m ice cream truck body fitted on FUSO truck chassis ice cream truck body

2.4m Ice Cream Pickup Truck

2.4m (L) x 1.8m(W) x 1.5m(H) ice cream pickup truck body fitted on Toyota Hilux pickup chassis ice cream truck body

4.9m Ice Cream Truck

4.9m ice cream truck body fitted on Isuzu NPR truck chassis  ice cream truck body

Packing & Delivery
Professional Packing & Loading For Different Transportation Method

Export Truck Fleet In Seaport
Ice Cream Truck Body
Large Order Quantity Queue Up Delivery

Our Services

1. OEM Manufacturing welcome: Product, Package... ice cream truck body
2. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you. ice cream truck body I

FAQ

Q1. What is your terms of payment? ice cream truck body
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance payment. ice cream truck body

Q2. What is your terms of delivery? ice cream truck body
A: EXW, FOB, CFR, CIF. ice cream truck body

Q3. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your deposit payment. The specific delivery time depends
on the items and the quantity of your order.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
