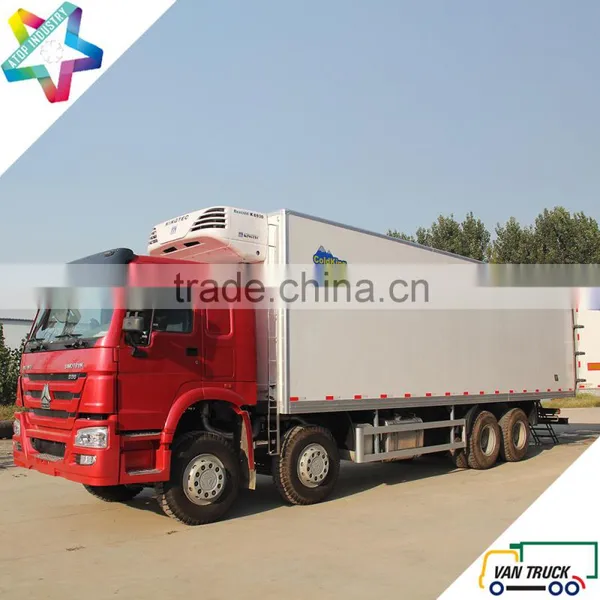

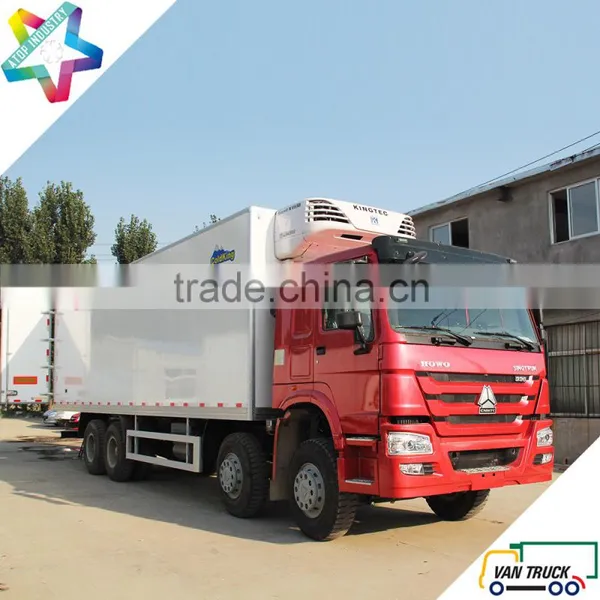

9.6m Reefer Truck Body Sino-truck Howo 336Hp Heavy Duty Chassis Refrigerated Truck Quality Choice

9.6m Reefer Truck Body Sino-truck Howo 336Hp Heavy Duty Chassis Refrigerated Truck Quality Choice thumbnail-1
9.6m Reefer Truck Body Sino-truck Howo 336Hp Heavy Duty Chassis Refrigerated Truck Quality Choice thumbnail-2
9.6m Reefer Truck Body Sino-truck Howo 336Hp Heavy Duty Chassis Refrigerated Truck Quality Choice thumbnail-3
9.6m Reefer Truck Body Sino-truck Howo 336Hp Heavy Duty Chassis Refrigerated Truck Quality Choice thumbnail-4
9.6m Reefer Truck Body Sino-truck Howo 336Hp Heavy Duty Chassis Refrigerated Truck Quality Choice thumbnail-5
9.6m Reefer Truck Body Sino-truck Howo 336Hp Heavy Duty Chassis Refrigerated Truck Quality Choice thumbnail-6
9.6m Reefer Truck Body Sino-truck Howo 336Hp Heavy Duty Chassis Refrigerated Truck Quality Choice photo-1
9.6m Reefer Truck Body Sino-truck Howo 336Hp Heavy Duty Chassis Refrigerated Truck Quality Choice photo-2
9.6m Reefer Truck Body Sino-truck Howo 336Hp Heavy Duty Chassis Refrigerated Truck Quality Choice photo-3
9.6m Reefer Truck Body Sino-truck Howo 336Hp Heavy Duty Chassis Refrigerated Truck Quality Choice photo-4
9.6m Reefer Truck Body Sino-truck Howo 336Hp Heavy Duty Chassis Refrigerated Truck Quality Choice photo-5
9.6m Reefer Truck Body Sino-truck Howo 336Hp Heavy Duty Chassis Refrigerated Truck Quality Choice photo-6
US$ 83,000 - 96,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
COLDKING
Model:
AJC9600RE1
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Jinan Atop Industry & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name COLDKING
Model AJC9600RE1
Place of Origin China
Transmission Type Manual
Condition New
Horsepower 251 - 350hp
Emission Standard Euro 4
Fuel Type Diesel
Dimensions (L x W x H) (mm) 12.1m (L) x 2.5m (W) x 3.9m(H)
Box Dimensions (L x W x H) (mm) 9.6m (L) x 2.5m (W) x 2.6m (H)
Temperature Range +30C to -25C
Gross Vehicle Weight 31000

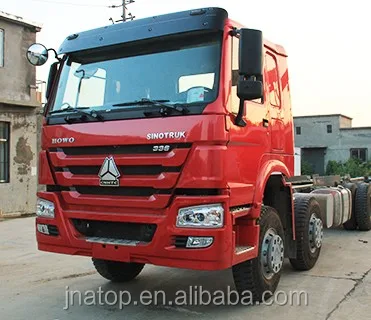

Truck Chassis
Chassis Brand
Sino-Truck
Chassis Model
Howo
Steering Wheel
Left Hand Drive
Drive Train
8 x 4 refrigerated truck body
Cab Style
Single Cab With Sleeper
Seating Capacity
2/3 refrigerated truck body
G.V.W
31,000 Kgs
Kerb Weight
13,000 Kgs
Rated Payload
18,000 Kgs
Overall Dimension
12.1m(L)x2.5m(W)x4.3m(H)
Wheelbase
1,800 + 4,600 + 1,350mm
Max. Speed
90km/h
Rim/Tires
8.5/12.00-20
Front Track
2,035/2,035mm
Rear Track
1,850/1,850mm

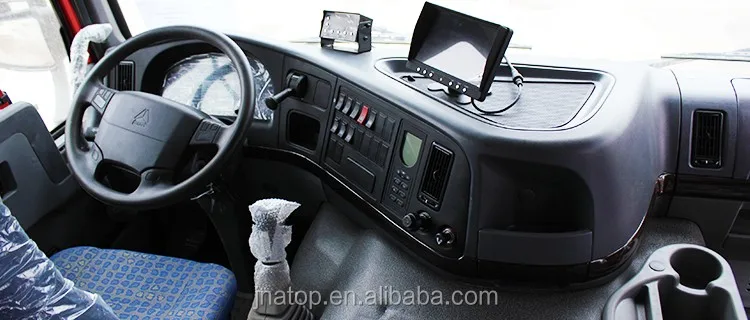

Multi-Function Steering Wheel Rim; Manual Tiltable & Collapsible Steering Column; With Three Points Pre-Tensioner Seat Safety Belt; With Power Windows, With AM/FM + AUX + USB Audio Device; With Fabric Seat Covers; With Power Door Locks;  With 2 Audio Speaker

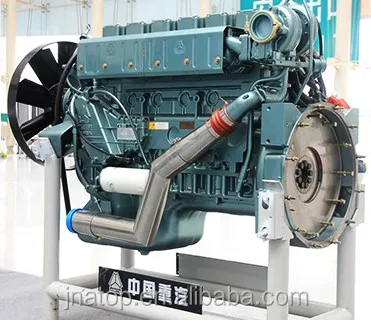

Engine Brand
Sino-Truck
Engine Model
MC07.34-40
Engine Emission
EURO 4 refrigerated truck body
Displacement
6,870cc refrigerated truck body
Max. Power
248Kw (336Hp)
Max. Torque
1,250N.m refrigerated truck body
No. of Cylinder
6 refrigerated truck body
Key Features
Intercooled; High Pressure Common Rail Direct Fuel Injection; Waste Gated Turbocharger

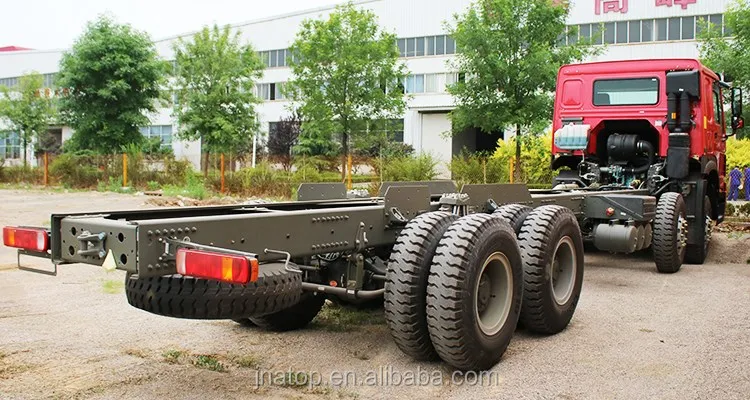

8 x 4 heavy duty chassis with leaf spring suspension,

EGR & SCR technology

Single reduction drive axle HC16

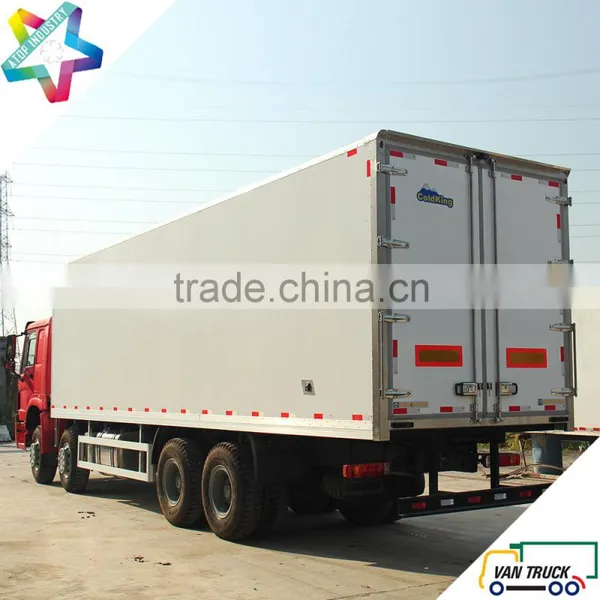

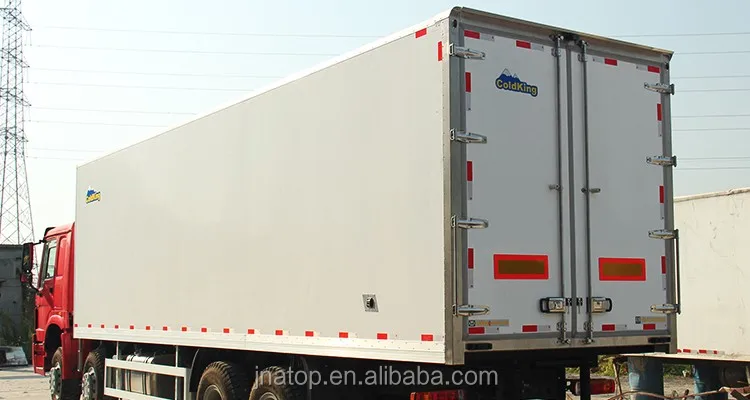

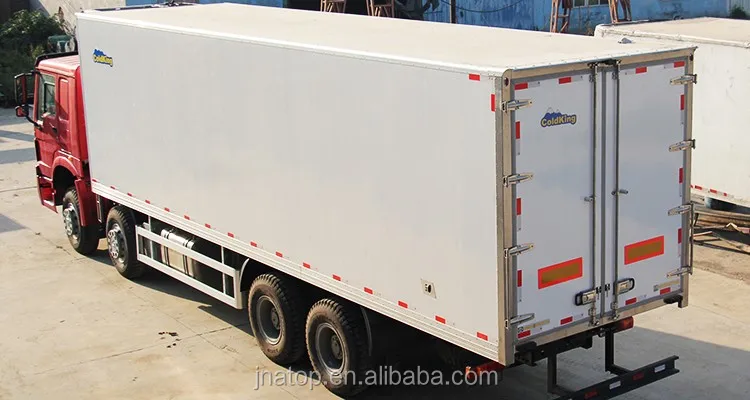

Truck Body Details
Truck Body
Key Features
ColdKing refrigerated body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Truck Body Outer Size
9.6m(L)x2.5m(W)x2.6m(H)
Truck Body Inner Size
9.39m(L)x2.29m(W)x2.39m(H)
Roof/Floor Panel
105mm Thickness
Side Wall Panel
85mm Thickness
Front Wall Panel
105mm Thickness
Rear Door Panel
85mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
None, Optional
Side Door Location
None, Optional
Side Door Type
None, Optional
Side Door Size
None, Optional
Rear Door Type
Full Size Double Opening Rear Door, Right Hnad Rear Door Open First

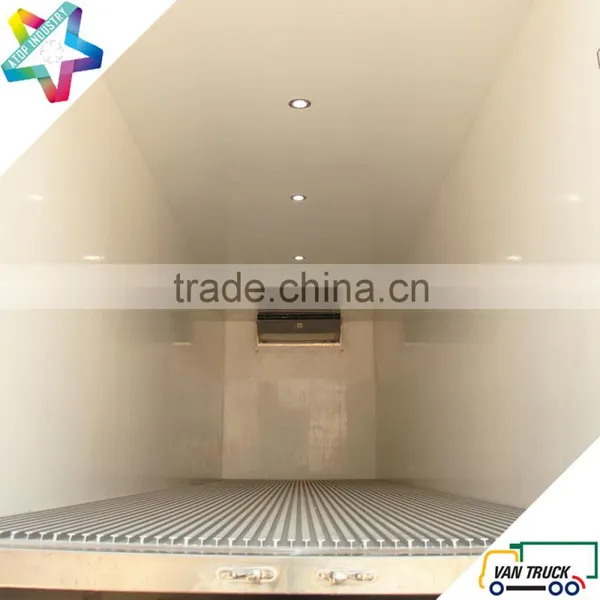

Truck Body Flooring
Aluminum Alloy T Type Airflow Flooring refrigerated truck body refrigerated truck body
Ceiling Light
4 (Four) Sets of 12/24V Multi-Voltage LED
Marker Light
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
European Standard -40C PVC Strip Curtain System For Rear Door

Refrigeration Unit   Service Ladder
Stainless Steel
Refrigeration Unit       Service Platform
None/Optional

Aluminum Alloy T Type Airflow Circulation Flooring

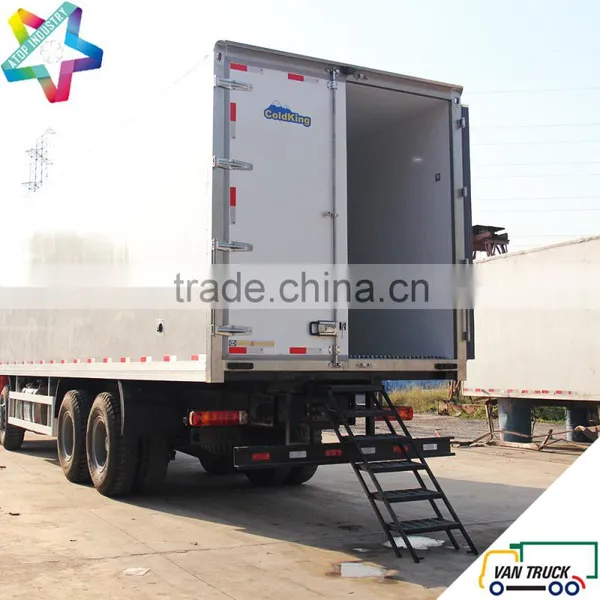

Speciallly designed Rear Door Assembly With Stainless Steel Lock Sets & Hinges refrigerated truck body

Zinc-coated access ladder for comfort working and loading & unloading  refrigerated truck body

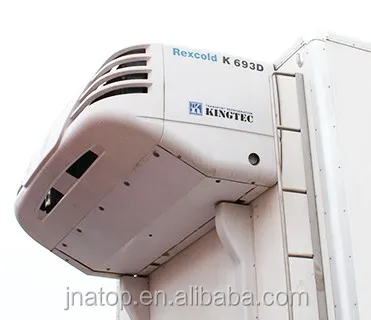

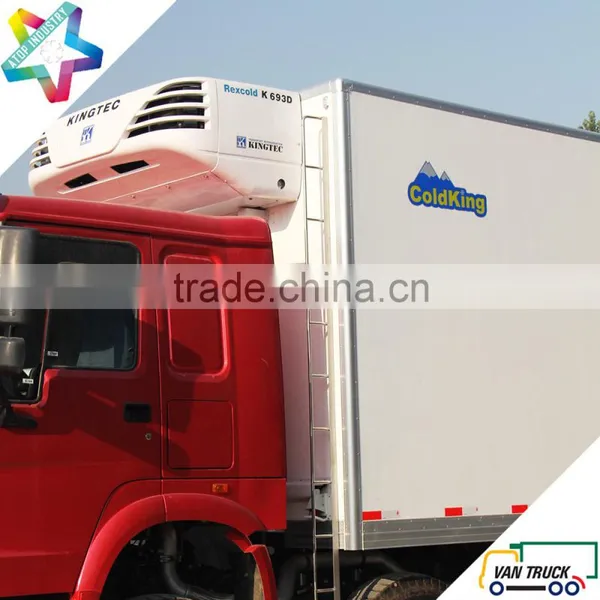

Refrigeration Unit
Refrigeration Unit Brand
Kingtec
Refrigeration Unit Model
K698E
Refrigeration Unit Type
Self-Powered Diesel Engine Driven, Condenser & Evaporator Combined
Refrigerant
HFC R404a
Condenser Mounted Method
Over-Cab
Compressor Model
4UFR(Y)
Compressor No. of Cylinders
4
Compressor Displacement
400cc
Max. Recommended Speed
refrigerated truck body

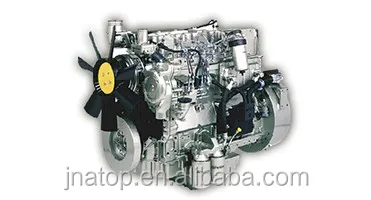

Engine Model
Perkins 403D-11
No. of Engine Cylinders
3
Engine Displacement
1,131cc
Engine Maintenance Interval
1,000Hrs
Airflow Volume
3,200m3/Hr
Discharge Velocity (Air Throw)
refrigerated truck body
Refrigeration Capacity: System Net Cooling Capacity
@ +30C Ambient Temperature Per A.T.P. Procedure
Return Air To Evaporator
0C
-20C
Refrigeration Capacity
(On Engine Power)
7,900W
5,150W
Electric Stand-By System
Available
Refrigeration Capacity
(On Electric Stand-By)
6,800W
4,150W
Defrost
Automatic Hot Gas Defrost/Manual Defrost

Powered by special clean and silent Perkins 403D-11 diesel engine, which provides maximum cab clearance and reduced truck body height on conventional chassis

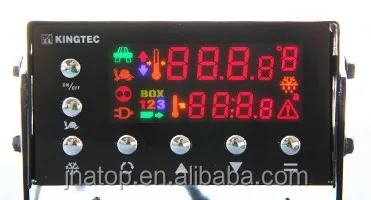

Automatic cooling by temperature Control system; In-cab remote display and control; Secure & dependable protection system; Programmable temperature control

Optional Items

Hydraulic Tail Lift

Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available refrigerated truck body refrigerated truck body

Cargo Control System

Smart & customized cargo Loading control refrigerated truck body refrigerated truck body refrigerated truck body

Cargo Versatile Shelving

Offers a wide variety of cargo shelving from stainless steel to aluminum alloy

Meat Hanging System

Heavy Duty Meat Hanging System With Stainless Steel Meat Hooks And Aluminum Alloy Sliding Rails

Multi-Temperature Partition

Multi-temperature purpose longitudinally moveable, insulated transverse partition wall

Products Show

31T Refrigerated Truck

9.6m meat refrigerated/reefer truck body fitted on Sino-Truck T5G 340Hp truck chassis

31T Refrigerated Truck

9.6m meat refrigerated/reefer truck body fitted on SHACMAN M3000 310Hp truck chassis

16T Refrigerated Truck

7.2m refrigerated/reefer truck body fitted on Isuzu FTR 190Hp truck chassis
