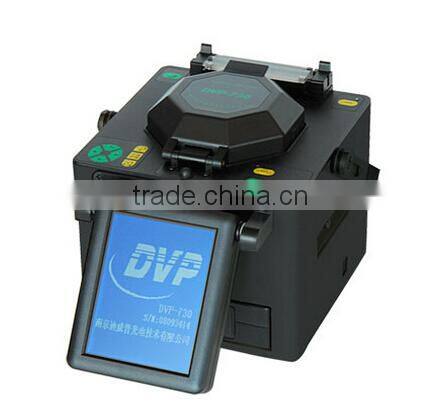

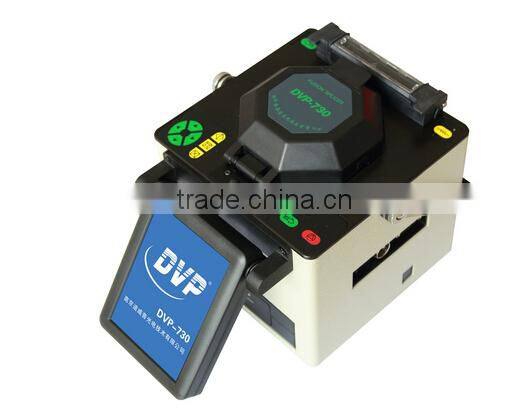

CCIT DVP-730 Single Optical Fiber ACR Fusion Splicer
Applicable fibers |
SM, MM, DS, NZ-DS(G655), EDF |
Cladding diameter |
100 to 150um |
Coating diameter |
100 to 1000um |
Fiber cleaved length |
8-22mm |
Splicing mode |
Auto & Manual |
Average splice loss |
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
Return loss |
≥60dB |
Tension test |
2.0N(200gf)(Standard) |
Protection sleeve length |
20mm, 40mm, 60mm |
Language |
English, Chinese, Korean, Russian, Spanish, Portuguese, German, French |
Interface |
RS232 interface & video output AC adaptor:85~260V input voltage |
Environment conditions: |
-25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude) |
Storage environment |
-40~ +80℃ (temperature) , 0~95%RH (humidity) |
Power supply |
Internal battery: 12V voltage, 10Ah, than 200 times of continuous splices and heats DC adaptor:12V voltage,optional multipurpose external battery |
Dimensions/Weight |
170(D)×170(W)×140(H)mm/3.3KG |
- Reversible monitor with control panel on each side
- Color LCD monitor & 256 magnification
- Large capacity internal battery
- Max. Wind velocity of 15m/s.
- 8 Sec. splice time, 40 Sec. tube-heat time
- Simultaneous X and Y views
- SYSTEM TEST ensures the best working condition
- User programmable
- Auto check fiber end face
- Auto calibrate parameters
- Store 8000 groups of splice results
- Multiple language options
Packing list
Main body, Internal Battery, Charger, Spare Electrodes, Cooling Tray, Manual Instruction,
Carry Case, Fiber Cleaver, Fiber Stripper, AC Adaptor, AC Power Cord
1. Trade terms: FOB,CIF,CFR,etc
2. Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
3. Payment Terms: T/T in advance
4. MOQ: 1 pcs
5. FOB Price:US $1 - 1,000 / Piece
6. Port: Shanghai
7. Lead time: Within 5 working days after receipt payment.
8. Supply capability: 200 Piece/Pieces per Week
9. Sample availability: Yes( not free)
l We can provide detail documents and remote help for device installation and configuration.
l Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
l Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
- Package information: carton package with Huawei original package
- Shipment: Express, Air, Sea
