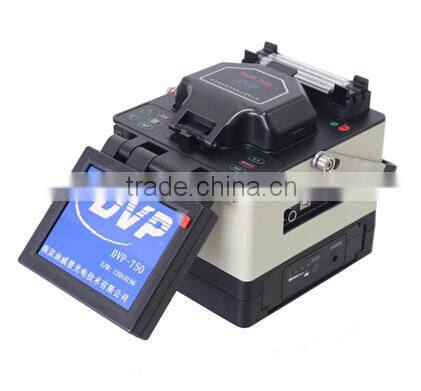

CCIT DVP-750 ARC Fusion Splicer
Applicable fibers |
SM, MM, DS, NZ-DS(G655), EDF |
Fiber cleaved length |
8-22mm |
Average splice loss |
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
Return loss |
≥60dB |
Tension test |
2.0N(200gf)(Standard) |
Protection sleeve length |
20mm, 40mm, 60mm |
Splice Program |
80 groups of manual setting |
Language |
English, Chinese, Russian |
Environment conditions |
-25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude) |
Storage environment |
-40~ +80℃ (temperature) , 0~95%RH (humidity) |
Power supply |
AC adaptor: 85~260V input voltage Internal battery: 12V, 10Ah, up to 150 times of continuous splices and heats DC adaptor: 12V voltage,optional multipurpose external battery |
Dimensions/Weight |
140(D)×150(W)×160(H)mm/2.8kg |
-
l High resolution LCD display
l Double heaters,30 Sec. tube-heat time
l 3 magnification modes, max. 360 magnification
l Four display modes, fiber core visible
l 8 Sec. splice time
l 5000m altitude ensure splice quality
l Store 8000 groups of splice results
l USB interface
Packing list
| • (DVP-750)Main body | •Internal Battery | • Charger | •Spare Electrodes | • Cooling Tray | • Manual Instruction |
| • Carry Case | • Fiber Cleaver | •Fiber Stripper | • AC Adaptor | • AC Power Cord |
1. Trade terms: FOB,CIF,CFR,etc
2. Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
3. Payment Terms: T/T in advance
4. MOQ: 1 pcs
5. FOB Price:US $1 - 1,000 / Piece
6. Port: Shanghai
7. Lead time: Within 5 working days after receipt payment.
8. Supply capability: 200 Piece/Pieces per Week
9. Sample availability: Yes( not free)
l We can provide detail documents and remote help for device installation and configuration.
l Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
l Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
- Package information: carton package with Huawei original package
- Shipment: Express, Air, Sea
