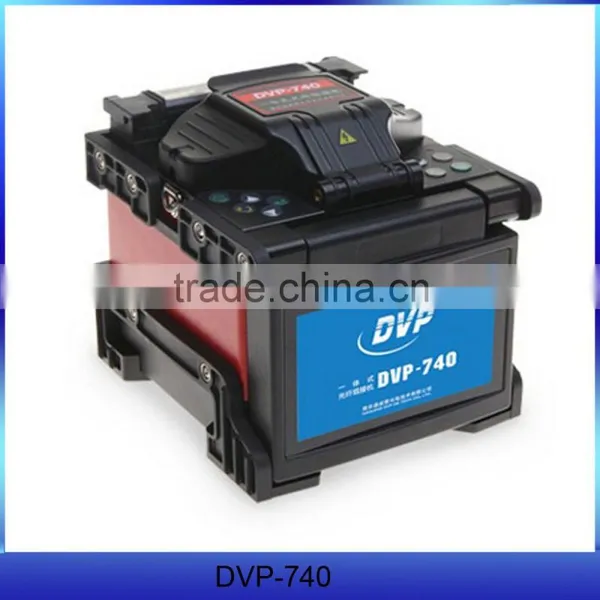

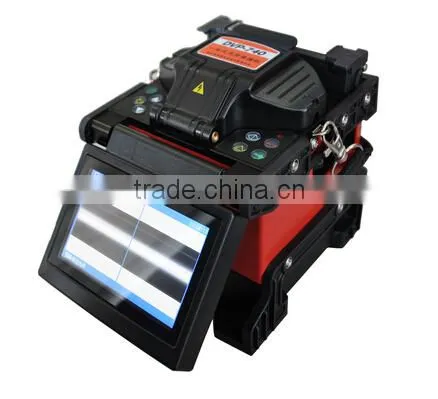

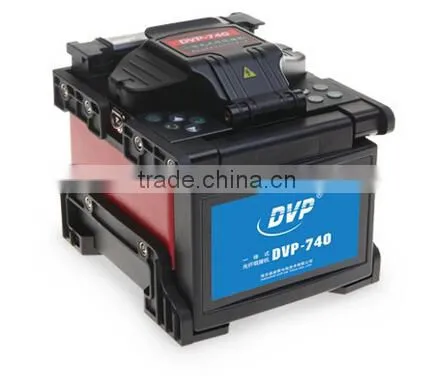

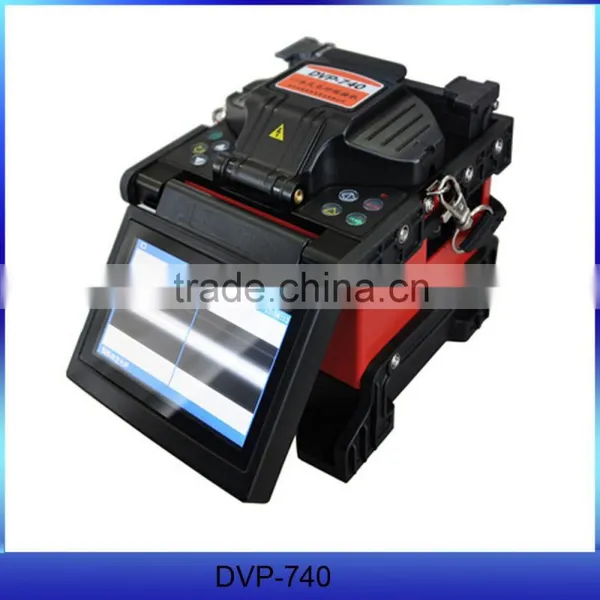

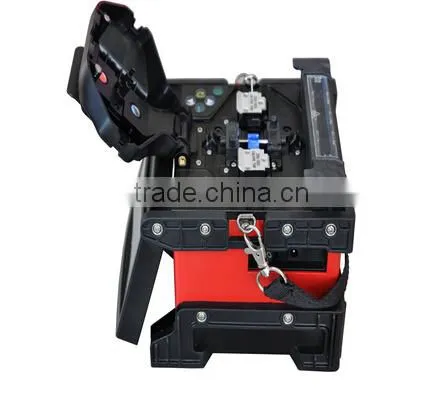

CCIT DVP-740 Mini FTTx Fusion Splicer
Applicable fibers: |
SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector. |
Fiber cleaved length: |
8-22mm |
Average splice loss: |
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
Returnloss: |
60dB |
Tensiontest: |
2.0N(200gf)(Standard) |
Protection sleeve length: |
20mm,40mm,60mm |
Splice Program : |
5 groups of preset programs, 75 group of manual setting |
Language: |
English, Chinese, Russian, Spanish, Portuguese. |
Environment conditions: |
25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude) |
Alignment: |
CoreAlignment(PAS Technology) |
Storage environment: |
-40~ +80℃ (temperature) , 0~95%RH (humidity) |
| Power supply AC adaptor: | 85~260V input voltage |
| Internal battery: | 12V, 6Ah, up to 120 times of continuous splice and heat |
| Dimensions/Weight: | 142(D)×122(W)×138(H)mm/1.95kg |
- lCompact & Light weight
- lApplied for Fibers, Cables and SOC (splice- on connector)
- lIntegrated Holder Design
- lFully Automatic, Semi-automatic and Manual Operation
- lShockproof, Drop resistance
- lPower saving Function
- l4.3 inch Color LCD monitor
- lUSB&DC interface
Packing list
Main body(DVP-740), Fiber Cleaver, Drop Cable Stripper, Connector holder, Heater Device for Connector, Spare Electrodes, Charger, Cooling Tray, Manual Instruction, Carry Box/ Bag.
1. Trade terms: FOB,CIF,CFR,etc
2. Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
3. Payment Terms: T/T in advance
4. MOQ: 1 pcs
5. FOB Price:US $1 - 1,000 / Piece
6. Port: Shanghai
7. Lead time: Within 5 working days after receipt payment.
8. Supply capability: 200 Piece/Pieces per Week
9. Sample availability: Yes( not free)
l We can provide detail documents and remote help for device installation and configuration.
l Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
l Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
- Package information: carton package with Huawei original package
- Shipment: Express, Air, Sea
