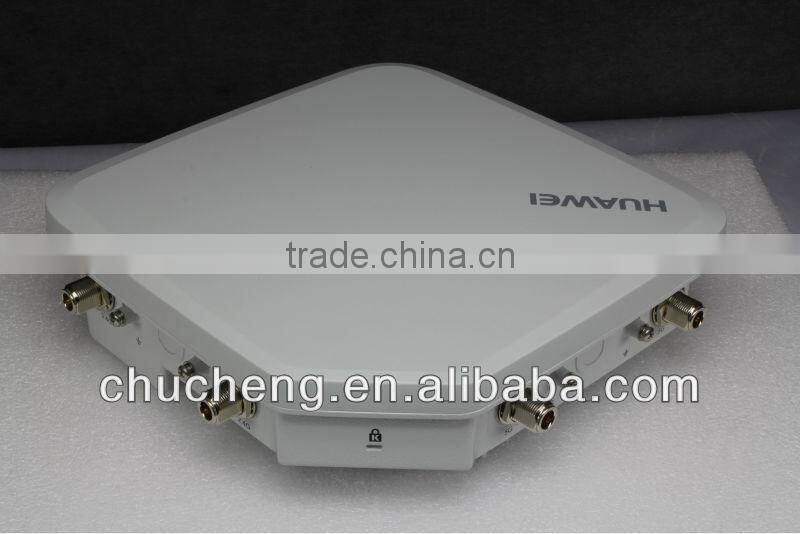

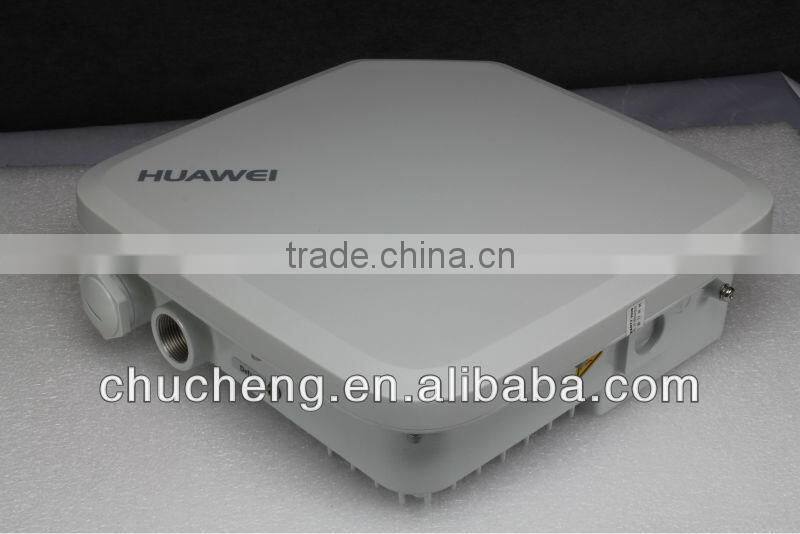

Huawei AP6510DN-AG Outdoor Wireless Access Point 5.8ghz Access Point
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Huawei
Model Number:
AP6510DN-AGN
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Huawei AP6510DN-AGN Wireless Access Point Wifi Access PointNegotiableMOQ: 1 Piece -
Huawei AP6510DN-AG Outdoor Wireless Access Point Outdoor Wireless Access PointNegotiableMOQ: 1 Piece
-
Huawei AP6510DN-AG Outdoor Wireless Access Point Wifi Access Point OutdoorNegotiableMOQ: 1 Piece
-
Huawei AP6510DN-AG Outdoor Wireless Access Point Access Point WifiNegotiableMOQ: 1 Piece
-
Huawei AP6510DN-AG Outdoor Wireless Access Point Access Point OutdoorNegotiableMOQ: 1 Piece
Place of Origin
Shanghai, China
Brand Name
Huawei
Model Number
AP6510DN-AGN
Huawei Huawei AP6510DN-AGN outdoor Access Point
The AP6510DN-AGN is an enhanced series dual-band Access Point (AP).With a high level of physical protection, it is applicable to pedestrian areas, factories, and other challenging environments, meeting the outdoor network deployment requirements.
The AP is applicable to open outdoor areas with high user densities, such as squares, residential communities, schools, and gardens, or outdoor places that have high demands for wireless access, such as pedestrian malls. This AP can be used together with outdoor antenna to provide long-distance network coverage and implements stable radio backhaul in a wireless distribution system.
The AP6510DN-AGN can work as a Fat AP or Fit AP and switch flexibly between the two working modes based on the network plan
When the wireless network scale is small, customers need to purchase only AP products and set the APs to work as Fat APs. As the network scale expands, tens of or hundreds of APs exist on the network. To simplify network management, customers are advised to purchase ACs to perform centralized management on the APs and set the APs to work as Fit APs.
Specifications
| Item | Description | |
|---|---|---|
| Technical specifications | Dimensions (H×W×D) | 83 mm×255 mm×255 mm |
| Weight | 2.2 kg | |
| System memory | 128 MB DDR2 32 MB flash memory |
|
| Power specifications | Power input | POE Power: -48V DC PoE function in compliance with IEEE 802.3at |
| Maximum power consumption | 25.5 W NOTE:The maximum power consumption depends on local laws. |
|
| Environment parameters | Operating temperature | -40°C to +60°C |
| Storage temperature | -40°C to +70°C | |
| Humidity | 0% to 100% (non-condensing) | |
| Waterproof grade | IP67 | |
| Altitude | –60 m to 4000 m | |
Radio Specifications
| Item | Description | |||
|---|---|---|---|---|
| Antenna type | Dual-polarization antenna or common outdoor antenna | |||
| Maximum number of concurrent users | 128 | |||
| Maximum transmit power | 2.4G: 26dBm 5G: 20dBm You can adjust the transmit power from the maximum transmit power by 20 dB, with a step of 1 dB. NOTE:Actual transmit power depends on local laws and regulations. |
|||
| Maximum number of non-overlapping channels |
2.4 GHz 802.11b/g 20MHz: 3 802.11n 20MHz: 3 40MHz: 1 |
5 GHz 802.11a 20MHz: 24 802.11n 20MHz: 24 40MHz: 11 |
||
| NOTE:The number of non-overlapping channels allowed varies in different countries. For details, see the Country codes & Channels compliance status | ||||
| Channel Rate | 802.11b: 1, 2, 5.5, and 11 Mbit/s | |||
| 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s | ||||
| 802.11n data rate (2.4 GHz and 5 GHz) | ||||
| GI2=800ns | GI=400ns | |||
| 20 MHz (Mbit/s) | 40 MHz (Mbit/s) |
20 MHz (Mbit/s) | 40 MHz (Mbit/s) | |
| 6.5 @ MCS10 | 13.5 @ MCS0 | 7.2 @ MCS0 | 15 @ MCS0 | |
| 13 @ MCS1 | 27 @ MCS1 | 14.4 @ MCS1 | 30 @ MCS1 | |
| 19.5 @ MCS2 | 40.5 @ MCS2 | 21.7 @ MCS2 | 45 @ MCS2 | |
| 26 @ MCS3 | 54 @ MCS3 | 28.9 @ MCS3 | 60 @ MCS3 | |
| 39 @ MCS4 | 81 @ MCS4 | 43.3 @ MCS4 | 90 @ MCS4 | |
| 52 @ MCS5 | 108 @ MCS5 | 57.8 @ MCS5 | 120 @ MCS5 | |
| 58.5 @ MCS6 | 121.5 @ MCS6 | 65 @ MCS6 | 135 @ MCS6 | |
| 65 @ MCS7 | 135 @ MCS7 | 72.2 @ MCS7 | 150 @ MCS7 | |
| 13 @ MCS8 | 27 @ MCS8 | 14.4 @ MCS8 | 30 @ MCS8 | |
| 26 @ MCS9 | 54 @ MCS9 | 28.9 @ MCS9 | 60 @ MCS9 | |
| 39 @ MCS10 | 81 @ MCS10 | 43.3 @ MCS10 | 90 @ MCS10 | |
| 52 @ MCS11 | 108 @ MCS11 | 57.8 @ MCS11 | 120 @ MCS11 | |
| 78 @ MCS12 | 162 @ MCS12 | 86.7 @ MCS12 | 180 @ MCS12 | |
| 104 @ MCS13 | 216 @ MCS13 | 115.6 @ MCS13 | 240 @ MCS13 | |
| 117 @ MCS14 | 243 @ MCS14 | 130 @ MCS14 | 270 @ MCS14 | |
| 130 @ MCS15 | 270 @ MCS15 | 144.4 @ MCS15 | 300 @ MCS15 | |
| NOTE:Modulation coding scheme (MCS) index: determines the spatial flow quantity, modulation, coding rate, and data rate. Guard interval (GI): indicates the period in nanoseconds the radio listens between packets. | ||||
| Receiver Sensitivity | 2.4 GHz 802.11b (CCK) -97 dBm @ 1 Mbit/s -92 dBm @ 2 Mbit/s -92 dBm @ 5.5 Mbit/s -90 dBm @ 11 Mbit/s |
2.4 GHz 802.11g (non-HT20) -92 dBm @ 6 Mbit/s -91 dBm @ 9 Mbit/s -90 dBm @ 12 Mbit/s -87 dBm @ 18 Mbit/s -83 dBm @ 24 Mbit/s -80 dBm @ 36 Mbit/s -76 dBm @ 48 Mbit/s -74 dBm @ 54 Mbit/s |
2.4 GHz 802.11n (HT20) -92 dBm @ MCS0/8 -89 dBm @ MCS1/9 -86 dBm @ MCS2/10 -82 dBm @ MCS3/11 -79 dBm @ MCS4/12 -74 dBm @ MCS5/13 -73 dBm @ MCS6/14 -71 dBm @ MCS7/15 |
2.4 GHz 802.11n (HT40) -89 dBm @ MCS0/8 -86 dBm @ MCS1/9 -83 dBm @ MCS2/10 -79 dBm @ MCS3/11 -76 dBm @ MCS4/12 -72 dBm @ MCS5/13 -70 dBm @ MCS6/14 -68 dBm @ MCS7/15 |
| 5 GHz 802.11a (non-HT20) -90 dBm @ 6 Mbit/s -89 dBm @ 9 Mbit/s -86 dBm @ 12 Mbit/s -84 dBm @ 18 Mbit/s -81 dBm @ 24 Mbit/s -77 dBm @ 36 Mbit/s -72 dBm @ 48 Mbit/s -71 dBm @ 54 Mbit/s |
5 GHz 802.11n (HT20) -84 dBm @ MCS0/8 -81 dBm @ MCS1/9 -79 dBm @ MCS2/10 -76 dBm @ MCS3/11 -72 dBm @ MCS4/12 -68 dBm @ MCS5/13 -67 dBm @ MCS6/14 -67 dBm @ MCS7/15 |
5 GHz 802.11n (HT40) -81 dBm @ MCS0/8 -78 dBm @ MCS1/9 -76 dBm @ MCS2/10 -73 dBm @ MCS3/11 -69 dBm @ MCS4/12 -65 dBm @ MCS5/13 -64 dBm @ MCS6/14 -64 dBm @ MCS7/15 |
||
WLAN features
- Compliance with IEEE 802.11a/b/g/n, providing a maximum rate of 300 Mbit/s
- Maximum ratio combining (MRC)
- Maximum-likelihood detection (MLD)
- Data unit aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Rx only)
- Short GI in 20 MHz and 40 MHz modes
- Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to implement priority-based data processing and forwarding
- Automatic and manual rate adjustment (the rate is adjusted automatically by default)
- WLAN channel management and channel rate adjustment
- Automatic channel scanning and interference avoidance
- Service set identifier (SSID) hiding
- Signal sustain technology (SST)
- Unscheduled automatic power save delivery (U-APSD)
- Control and Provisioning of Wireless Access Points (CAPWAP) in Fit AP mode
- Automatic login in Fit AP mode
- Wireless distribution system (WDS) in Fit AP mode
- Mesh networking in Fit AP mode
Network features
- Compliance with IEEE 802.3u
- Auto-negotiation of the rate and duplex mode and automatic switchover between the Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDI-X)
- SSID-based VLAN assignment
- VLAN trunk on uplink Ethernet ports
- 4094 VLAN IDs (1-4094) and a maximum of 16 virtual APs (VAPs) for each radio
- AP control channel in tagged and untagged mode
- DHCP client, obtaining IP addresses through DHCP
- Tunnel data forwarding and direct data forwarding
- STA isolation in the same VLAN
- Access control lists (ACLs)
- Link Layer Discovery Protocol (LLDP)
- Uninterrupted service forwarding upon CAPWAP channel disconnection in Fit AP mode
- Unified authentication on the AC in Fit AP mode
- AC dual-link backup and VRRP hot backup in Fit AP mode
