Quidway Supplier HUAWEI BH640 V2 E6000 series blade server with 24 DDR3 DIMMs
- 4*E5-4600 v2 CPU
- 24*DDR3 DIMMs
- 2*2.5" SAS/SATA HDDs or SSDs
Quidway Supplier HUAWEI BH640 V2 E6000 series blade server with 24 DDR3 DIMMs
Description
As one of the new-generation 4-socket server blades of Huawei E6000 series, the BH640 V2 delivers outstanding high-density computing performance. Its total computing density leads the industry in a fully configured 42U rack. It is particularly suitable for applications, such as, modeling and simulation, image and signal processing, financial algorithms, scientific computing, and seismic processing, which have high performance, high density, and modular deployment requirements.
Features-- Outstanding computing performance, energy-savings, plus easy O&M
- Total computing density leads the industry
- Overcomes service challenges with powerful processor performance and memory-intensive features
- Reduces O&M costs with Huawei’s BMC management chips, and SOL, KVM over IP, and virtual media technologies for remote management and maintenance
- Black box function facilitates quick fault location and service
Quidway Supplier HUAWEI BH640 V2 E6000 series blade server with 24 DDR3 DIMMs

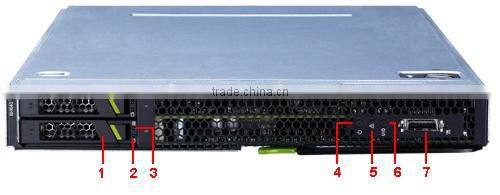

BH640 V2 front view
1 |
Power button/indicator |
5 |
HLY indicator |
2 |
Hard disk active indicator |
6 |
UID button/indicator |
3 |
Hard disk fault indicator |
7 |
KVM high-density port |
4 |
PWR button/indicator |
|

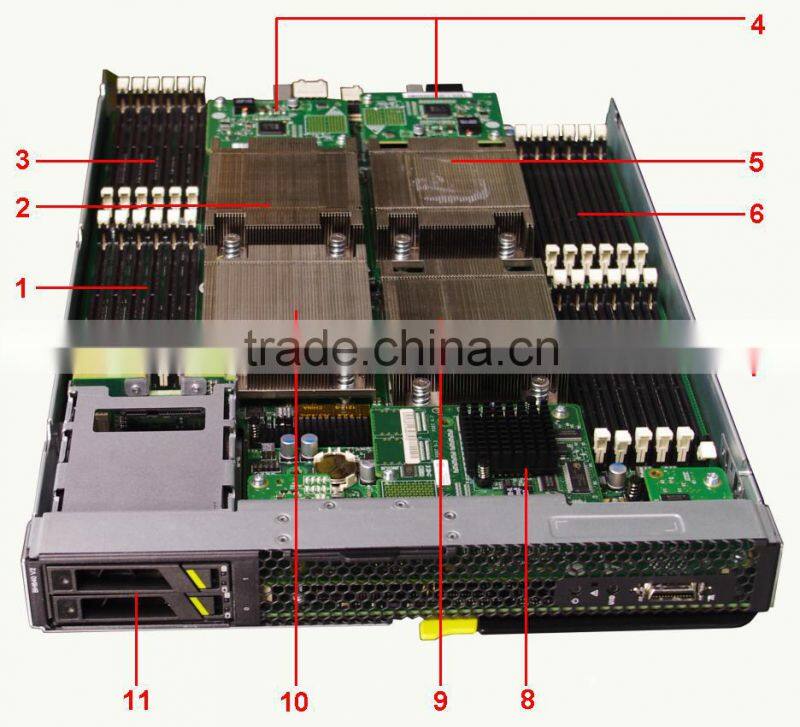

BH640 V2 components
1 |
Six DDR3 DIMMs for processor 4 |
7 |
Six DDR3 DIMMs for processor 1 |
2 |
Processor 3 |
8 |
RAID controller card |
3 |
Six DDR3 DIMMs for processor 3 |
9 |
Processor 1 |
4 |
Two PCIe mezz cards |
10 |
Processor 4 |
5 |
processor 2 |
11 |
Two 2.5-inch hot-swappable |
| 6 | Six DDR3 DIMMs for processor 2 |
Quidway Supplier HUAWEI BH640 V2 E6000 series blade server with 24 DDR3 DIMMs
Technical specification
Component |
Item |
Chassis |
E6000 and E6000H |
Processor |
Up to two Intel® Xeon®E5-4600 series processor,each with eight cores (up tp 2.9 GHz), six cores (up to 2.9 GHz), or four cores (up to 3.3 GHz). Two QPI links, each with up to 8.0 GT/s Maximum memory speed: 1,600 MHz Maximum L3 cache: 20 MB |
Chipset |
Intel C602 |
Memory |
Up to 24 DIMM slots (6 DIMMs per processor) for installing RDIMMs or LRDIMMs. Mixing different types of memory is not supported Maximum memory speed: 1600 MHz Up to 384 GB with 24 x 16GB RDIMMs and four processors Up to 768 GB with 24 x 32 GB LRDIMMs and four processors Memory protection: ECC |
Internal storage |
Up to 2 x 2.5-inch hot-swappable SAS/SATA HDDs or SSDs. Maximum storage capacity: 1.8 TB (900 GB SAS HDDs) 2 TB (1 TB SATA HDDs) 1.2 TB (600 GB SSDs) Mixed configuration of SAS and SATA HDDs and SSDs is supported. |
RAID |
The RU120 supports RAID 0 and 1. |
Network port |
Two integrated GE 1000 BASE-T ports that use Intel 82580 network chips and support Network Controller Sideband Interface (NC-SI) The Intel 82580 is a single-chip low-power device that supports dual- or quad- port GE designs. It provides four 1000BASE-T ports that integrate the media access control (MAC), physical layer (PHY), serial gigabit media independent interface (SGMII) or serializer/deserializer (SERDES), and supports PCIe 2.0 |
Expansion slots |
The PCIe x8 mezz port is not supported if one processor is configured. Two processors support: Two PCIe x8 mezz slots GE, 4 G fiber channel (FC), 8 G FC, and 10 GE mezz card |
Port |
Front panel: Three USB 2.0 ports and one DB-15 video port Internal: One built-in USB flash port (for the embedded system management program) |
|
System management |
UEFI, Huawei iMana |
Security feature |
Power-on password, administrator's password, and TPM |
Display adapter |
Z11 video chip with 64 MB display memory integrated into the mainboard. The maximum resolution is 1600 x 1200 at 70 Hz with 16 M colors. |
Supported OSs |
Microsoft Windows Server 2008 Microsoft Windows Server 2008 R2 Red Hat Enterprise Linux 6.1 SUSE Linux Enterprise Server 11.1 Oracle 6.1 Oracle Server VM 3.0.2 Citrix 5.6 Citrix 6.0 VMware ESXi 4.1 VMware ESXi 5.0 |
|
Dimensions (H x W x D) |
41.8 mm x 310 mm x 496 mm (1.65 in. x 12.2 in. x 19.53 in.) |
Weight |
Maximum weight: 8.0 kg (17.6 lb) |
Physical Specification
Item |
Specifications |
Operating temperature |
10°C to 35°C (50°F to 95°F) |
Storage temperature |
–40°C to +65°C (–40°F to +149°F) |
Temperature change rate |
15°C/h (27°F/h) |
Operating humidity |
8% RH to 85% RH |
Storage humidity |
5% RH to 95% RH |
Altitude |
≤ 3000 m (9842.52 ft) |
Input voltage |
12 V DC |
|
Mean time between failures (MTBF) |
129648 h |
|
Mean time to repair (MTTR) |
240s |
Dimensions (H x W x D) |
41.8 mm x 310 mm x 496 mm (1.65 in. x 12.2 in. x 19.53 in.) |
Weight |
Net weight: 8.0 kg (17.64 lb) Packing material weight: 1.0 kg (2.21 lb) |
