Quidway Supplier HUAWEI E6000 Chassis for Blade Server

Quidway Supplier HUAWEI E6000 Chassis for Blade Server photo-1
Quidway Supplier HUAWEI E6000 Chassis for Blade Server photo-2
Quidway Supplier HUAWEI E6000 Chassis for Blade Server photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Blade
Max Memory Capacity:
Other, 768
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Products Status Stock
Type Blade
Max Memory Capacity Other, 768
Max Processors 4
Processor Main Frequency 3.3GHz
Processor Type Intel Xeon E5-4600 and E5-4600 v2 series processors
Brand Name HUAWEI
Model Number E6000
Place of Origin China

Quidway Supplier HUAWEI E6000 chassis for blade server



  • 4*E5-4600 v2 CPU
  • 24*DDR3 DIMMs
  • 2*2.5"  SAS/SATA HDDs or SSDs



Product Description

        Quidway Supplier HUAWEI E6000 chassis for blade server

Description

    The E6000 is a new-generation blade server provided by Huawei Technologies Co., Ltd. The E6000 is configured with a high-speed backplane, high-performance server blades, switching modules, management modules (MMs), and a data module (DM) to provide customers with powerful computing, mass data processing and data exchanging, and excellent management functions. It features low power consumption, high density, high reliability, and easy maintenance.

    The E6000 uses an 8 U high server shelf. It can be installed in a standard 19-inch cabinet and can run with AC or DC power supplied.



Features

Huawei Blade Server platform for your growing IT business services, provides optimized virtualization, high scalability, high performance, and more

  • High-performance server blades and optimized layout meet low-end, midrange, and high-end service requirements
  • Energy-saving technologies such as power capping, alternate power hibernation, and intelligent fan speed adjustment by area achieve up to 92 percent power efficiency
  • A passive backplane prevents single points of failure and ensures high reliability and service continuity
  • Easy maintenance and management reduce O&M costs



  Quidway Supplier HUAWEI BH640 V2 E6000 series blade server with 24 DDR3 DIMMs

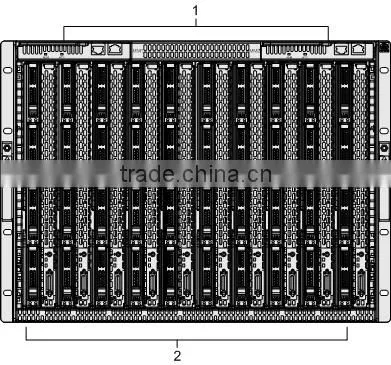

E6000 front view







1 MMs 2 Server blades

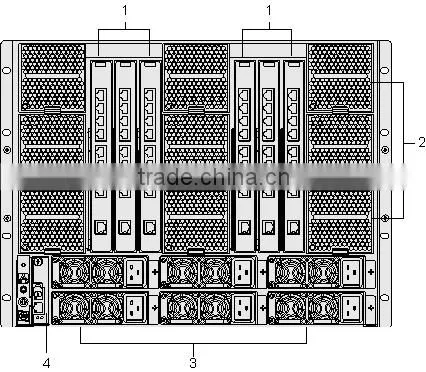

E6000 rear view







1 switching modules 2 fan modules
3 PSUs 4 DM





Specification

  Quidway Supplier HUAWEI E6000 chassis for blade server



 Physical Specification

Item

Description

Dimensions (W x D x H)

447 mm x 810 mm x 353 mm (17.60 in. x 31.89 in. x 13.90 in.)

Weight

Net:

  • Empty chassis: 35 kg (77.18 lb)
  • Full configuration:
    • 138 kg (304.29 lb) (with 2S blades)
    • 168 kg (370.44 lb) (with 4S blades)

Packing materials:

  • For the chassis: 20.8 kg (45.86 lb)
  • For the blades (five in 1): 4.2 kg (9.26 lb)

 Power supply specifications

Item

Description

Power supply

  • AC: 100 V AC to 127 V AC or 200 V AC to 240 V AC; 50 Hz or 60 Hz
  • DC: -36 V DC to -60 V DC
NOTE:
Recommended AC specifications for the external circuit breaker connected to the server: ≥ 32 A.

PSU rated power

A chassis houses a maximum of six PSUs. The following information lists the rated power of each type of PSU:

  • DC PSU: 1300W (for -36 V DC to -60 V DC input)
  • AC PSU: 900W (for 100 V AC to 127 V AC input)
  • AC PSU: 1600W (for 200 V AC to 240 V AC input)

Environmental specifications

Item

Description

Temperature

Operating temperature: 5°C-35°C (41°F-95°F) (long term); 5°C-40°C (41°F-104°F) (short term)

Storage temperature: -40°C to +70°C (-40°F to +158°F)

Humidity

Operating humidity: 8-80% RH (non-condensing)

Storage humidity: 5-95% RH (non-condensing)

Altitude

The maximum altitude is 3000 m (9842.40 ft). When the altitude is higher than 3000 m (9842.40 ft), the operating temperature decreases by 1°C (1.8°F) for each additional 900 m (2952.72 ft).

Vibration

5 Hz-10 Hz, 5 mm (peak-to-peak value) 10 Hz-100 Hz, 1 m/s2, 0.1 oct/min. Each axial direction has a cyclical frequency sweep and there are three axial directions in total.

Shock

Half sine wave, peak acceleration of 2 g, 11 ms, with each plane of 100 times and three axial directions

Noise

Maximum noise at an ambient temperature of 25°C (77°F): 78 dB; maximum noise: 87 dB

Certifications

Conformity with European (CE), Underwriters Laboratories Inc. (UL), Federal Communications Commission (FCC), Restriction of Hazardous Substances Directive (RoHS)
