Original Quidway supplier HUAWEI CH121 mini Linux 1U server with 2 processors
| 2*E5-2600 V2 CPU 24*DDR3 DIMMs 2*2.5“ SSDs, SAS HDDs, or SATA HDDs |
Original Quidway supplier HUAWEI CH121 mini Linux 1U server with 2 processors
Overview
The CH121 combines dense computing capabilities with an ultra-large memory capacity. It’s optimized for enterprise service applications such as virtualization, cloud computing, and HPC, and employs Intel®Xeon® processors.
This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power. Carrier-class design, manufacturing, and components ensure high quality.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
Features --- High performance, easy to manage, energy-saving
- Intel® Xeon® E5-2600 and E5-2600 V2 full series processors deliver up to four 12-core, 2.7 GHz computing capabilities
- 24 DDR4 DIMMs — at 1.5 times the usual height — apply mainstream granules, double the memory capacity up to 1.5 TB DDR, and provide the highest cost-efficiency for large-memory applications
- Reduces O&M costs by supporting remote deployment and fault location technologies such as SOL, KVM over IP, virtual DVD-ROM drive, WebUI, and IPMI 2.0 compliance
- Compute nodes include efficient, secure power consumption analysis and control capabilities, including intelligent power-off mode, and Intel® NM 2.0 compliance
Original Quidway supplier HUAWEI CH121 mini Linux 1U server with 2 processors

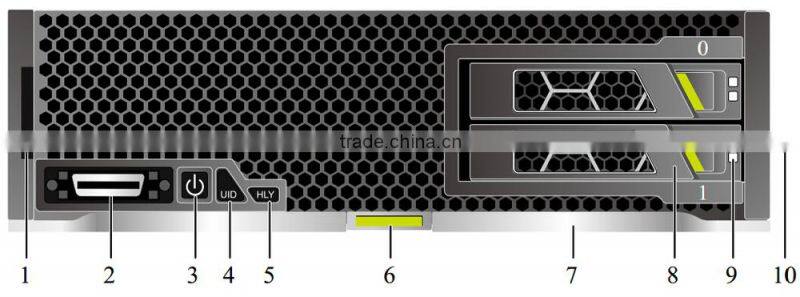

Front panel of a CH121
| 1 | Customization label | 2 | High-density port |
| 3 | Power button/indicator | 4 | UID button/indicator |
| 5 | HLY indicator | 6 | Spring |
| 7 | Ejector leve | 8 | Hard disk |
| 9 | Hard disk active indicator | 10 | Hard disk fault indicator |

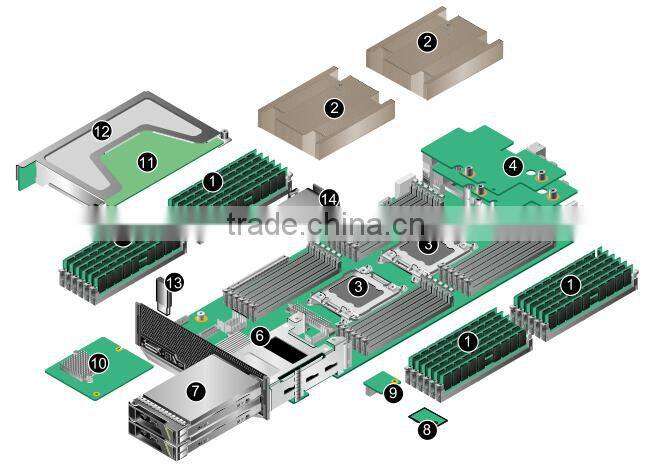

Components of the CH121
| 1 | Dual inline-memory module (DIMM) | 2 | Heat sink |
| 3 | CPU | 4 | Mezzanine card |
| 5 | Main board | 6 | Hard disk tray |
| 7 | Hard disk | 8 | (Optional) USB flash drive |
| 9 | (Optional) Trusted Platform Module | 10 | Redundant array of independent disks |
| 11 | (Optional) PCIe card | 12 | (Optional) PCIe card tray |
| 13 | (Optional) USB 2.0 | 14 | iBBU |
Original Quidway supplier HUAWEI CH121 mini Linux 1U server with 2 processors
| Item | Specifications |
| Physical Specifications | |
| Dimensions (H x W x D) | 60.46 mm × 210 mm × 537.2 mm (2.4 in. x 8.26 in. x 21.14 in.) |
| Color | Front panel: black Cover: silver white |
| Weight | Net: 7 kg (15.44 lb) Packing materials: 2.3 kg (5.07 lb) |
| Environmental Specifications | |
| Temperature | Operating temperature: 5°C to 40°C (41°F to 104°F) Storage temperature: -40°C to +65°C (-40°F to +149°F) |
| Temperature change rate | 15°C/h (27°F/h) |
| Humidity | Operating humidity: 5% RH to 85% RH (noncondensing) Storage humidity: 5% RH to 95% RH (noncondensing) |
| Altitude | 900 m (2952.72 ft) at 40°C (104°F) When the device is used in an altitude of 900 m to 3000 m, the operating temperature decreases by 1°C (1.8°F) as the altitude increases by 300 m (984.24 ft). |
| Technical Specifications | |
| Form Factor | Half-width 2-socket compute node |
| Number of processors | 1 or 2 |
| Processor Model | Intel® Xeon® E5-2600 and E5-2600 v2 series |
| Number of DIMMs | 24 DDR3 DIMMs, providing a maximum memory capacity of 1.5 TB |
| Number of Hard Disks | 2 x 2.5-inch SSDs, SAS HDDs, or SATA HDDs |
| RAID Support | RAID 0 and 1 |
| PCIe Expansion | 2 PCIe x16 Mezz modules 1 standard PCIe x8 full-height half-length card |
| OS Support | Microsoft Windows Server 2008/2012 Red Hat Enterprise Linux SUSE Linux Enterprise Server Oracle Linux CentOS Citrix XenServer VMware |
| Power | |
| Rated input voltage | 12 V DC |
| Maximum power consumption | 591 W |
Trade Info
Trade terms: FOB,CIF,CFR,etc
Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
Payment Terms: T/T in advance
MOQ:1 pcs
FOB Price:US $1 - 1,000 / Piece
Port: Shanghai
Lead time: Within 5 working days after receiving payment.
Shipment: Express, Air, Sea
Supply capability: 200 Piece/Pieces per Week
Sample availability: Yes( not free)
Package information: carton/wooden package
