Specifications
Size: 6RUDC power (maximum): 1700W/AC power (maximum): 1600W
Scalable to 40 Gbps Hardware failover
Up to 100 Gbps throughput

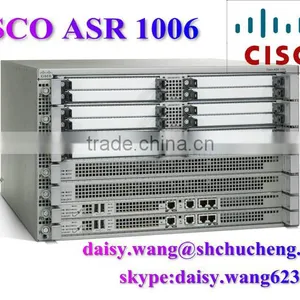

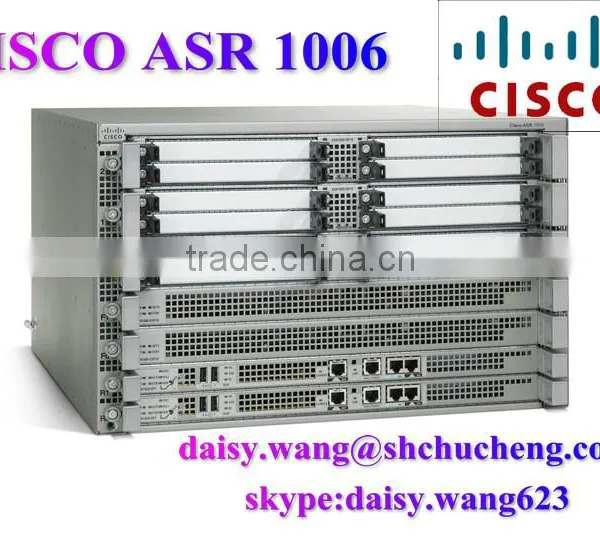

100% Original New Cisco ASR 1006 Router
The Cisco ASR 1006 Router in a 6-rack unit (RU) form factor is the most flexible edge routing solution in the Cisco ASR 1000 Series. It supports:
- Dual route processor
- Embedded services processor
- Up to 100 Gbps throughput
- Up to 12 shared port adapters (SPAs), the highest port density solution of the three Cisco ASR 1000 Routers
Running on Cisco IOS XE Software, the Cisco ASR 1006 router supports hardware redundancy and in-service software upgrades (ISSU).
The Cisco ASR 1006 Router in a 6-rack unit (RU) form factor is the most flexible edge routing solution in the Cisco ASR 1000 Series. It has the option of dual route processor and embedded services processor support with 10 Gbps throughput support. It also supports up to 12 shared port adapters (SPAs), which makes it the highest port density solution of the three Cisco ASR 1000 Routers.
PRODUCT DETAILS |
GENERAL | |
Device Type |
Modular expansion base |
Enclosure Type |
Desktop - modular - 6U |
Connectivity Technology |
Wired |
Compliant Standards |
CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1 |
EXPANSION / CONNECTIVITY | |
Expansion Slots |
12 (total) / 12 (free) x expansion slot |
Installed Modules Qty (Max) |
14 (max) |
POWER | |
Power Device |
Internal power supply |
Power Redundancy |
Yes |
Installed Qty |
2 (installed) / 2 (max) |
Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
MISCELLANEOUS | |
Rack Mounting Kit |
Included |
DIMENSIONS & WEIGHT | |
Width |
43.7 cm |
Depth |
55.6 cm |
Height |
26.7 cm |
ENVIRONMENTAL PARAMETERS | |
Min Operating Temperature |
5 °C |
Max Operating Temperature |
40 °C |
Humidity Range Operating |
5 - 90% |
COMPATIBILITY INFORMATION | |
Designed For |
P/N: ASR1006, ASR1006= |
Cisco ASR 1000 Series: Chassis Comparison and Product Specifications
|
Cisco ASR 1002 |
Cisco ASR 1004 |
Cisco ASR 1006 |
Chassis |
Size: 2 rack units (2RU) DC power (maximum): 590W AC power (maximum): 560W Scalable to 10 Gbps Software failover |
Size: 4RU DC power (maximum): 1020W AC power (maximum): 960W Scalable to 40 Gbps Software failover |
Size: 6RU DC power (maximum): 1700W AC power (maximum): 1600W Scalable to 40 Gbps Hardware failover |
Forwarding cards |
One 5-Gbps Cisco ASR 1000 Series ESP (ESP5) (part number ASR1000-ESP5) or one 10-Gbps Cisco ASR 1000 Series ESP (ESP10) (part number ASR1000-ESP10) or one 10-Gbps Cisco ASR 1000 Series non crypto ESP (ESP10-N) ( part number ASR1000-ESP10-N) 4-8 millions of packets per second (Mpps) 5-Gbps forwarding |
One Cisco ASR 1000 Series ESP10 (ASR1000-ESP10) or one Cisco ASR 1000 Series non crypto ESP (ASR1000-ESP10-N) or One Cisco ASR 1000 Series ESP20 (ASR1000-ESP-20) 16 Mpps 20-Gbps forwarding |
One or two Cisco ASR 1000 Series ESP10s (ASR1000-ESP10) or one Cisco ASR 1000 Series non crypto ESP (ASR1000-ESP10-N) or One or two Cisco ASR 1000 Series ESP20s (ASR1000-ESP20) 1 + 1 redundancy 16 Mpps 20-Gbps forwarding |
Route processor |
Integrated in the chassis 4-GB memory |
One Cisco ASR 1000 Series Route Processor 1 (RP1) (ASR1000-RP1) Or One Cisco ASR 1000 Series Route Processor 2 (RP2) (ASR1000-RP2) 2- or 4-GB memory Optional 40-GB hard disk drive (RP1 only) Optional 80-GB hard disk drive (RP2 only) |
One or two Cisco ASR 1000 Series RP1s (ASR1000-RP1) Or One Cisco ASR 1000 Series Route Processor 2 (RP2) (ASR1000-RP2) 1 + 1 redundancy 2- or 4-GB memory Optional 40-GB hard disk drive (RP1 only) Optional 80-GB hard disk drive (RP2 only) |
SPA Interface Processor (SIP) |
Integrated: 3 SPA slots |
Up to two Cisco ASR 1000 Series SPA Interface Processors (SIPs) (ASR1000-SIP10) 8 SPA slots |
Up to three Cisco ASR 1000 Series SIPs (ASR1000-SIP10) 12 SPA slots |
Software |
Cisco IOS XE Software Minimum release: 2.1 |
Cisco IOS XE Software Minimum release: 2.1 |
Cisco IOS XE Software Minimum release: 2.1 |
