All Kinds of Energy Meter

All Kinds of Energy Meter thumbnail-1
All Kinds of Energy Meter photo-1
US$ 3 - 10 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
GASIM
Model Number:
DTSY/DSST7171 DDSF7171 AND SO ON
Contact Supplier Request Quote Chat Now
Shanghai Gasim Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name GASIM
Model Number DTSY/DSST7171 DDSF7171 AND SO ON
Display Type Other
Phase Other
Accuracy Class 2/1
Output Voltage three-phase three-wire 3X100V or 3X380V


Product Description

KWH METER

1.Product introduction

Energy Meter

DTSD/DSSD7171 type three-phase electronic multi-function watt-hour meter adopts the advanced chip for energy measurement ,it is designed with mature technology integrating the active and ractice measurement with multi-rate measurement,application digit sampling process technology as well as surface mount  technology(SMT),it is designed according to China actual power utiliza-tion situation,with international advanced level.
The product can measure the forward and reverse active and reactve energy,reactive energy and max demand of various rates.it has 4 rates,10 time intervals,4 time aresa,5 daily time interval meters,can realize load curve record and various events records like voltage loss,cureent loss,demand clearing,programing,ect.with many functions such as energy pulse output,clock signal output,ect...
The product can be extensively used in power plants,transformer substations,enterprises and public institutions for energy comprehensive measurement and management,especially,it is applicable for reform of power utilization,meeting the customers demands of multi-rate,actuve and reactive measurement.
DDSY7171 type single-phase electronic pre-paid watt-hour meter is developed on the base of excellent single-phase electronic watt-hour meter.it is new type of IC card  pre-paid meter which has such function as power metering,load control and customer information management.It is an ideal product when refoming electric-use system,achieving electrical energy to commercialize,setting charge and adjusting load stage in the electric network.
DTSY/DSST7171 type three-phase electric pre-paid watt-hour meter is a new type of IC card pre-paid meter,which has such function as power metering,load control and customer information management.It is an ideal product when reforming electric-use system,achieving electrical energy to commercialize,setting charge and adjusting load stage in the electric Network.
2.Product data
Type Rated Current(A) Rated Voltage(V) Rater voltage(Hz) Accuracy class
DTSD/DSSD7171 3X1.5(6) 3X220/380V 50 0.5 or 2
DDSY7171 5(20),5(30),10(40),10(60),15(60) 220 or 240 50 or 60 1 or 2
 DTSY/DSST7171 3X1.5(6),3X5(20),3X10(40),3X15(60),3X20(80),3X30(100) three-wire3X100V or 3X380V,four wire 3X220/380V or 3X57.7/100V 50 or 60 1 or 2

Dimension



3. Product  SHOW

 All kinds of energy meter

All kinds of energy meter

All kinds of energy meter









More products,you can visit our web : /    to check



4.more details









All kinds of energy meter

All kinds of energy meter

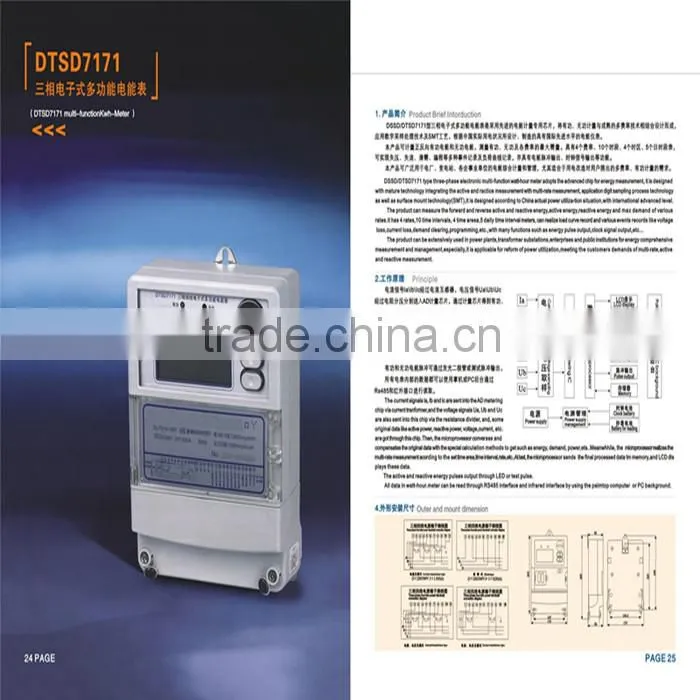

5. Product   Catalog





All kinds of energy meter

All kinds of energy meter



All kinds of energy meter


Packaging & Shipping

   export packing for KWH METER

All kinds of energy meterAll kinds of energy meter


Our Services

(1)Warranty   ( 24 months warranty  )

1. The warranty starts from the delivery date from our factory;

2. During the warranty, any defective product will get repaired or replaced for free ;

3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.



 (2)Lead Time

1. Sample orders will be delivered from our factory within 7 working days.

2. General orders will be delivered from our factory within 7-15 working days. miniature circuit breaker price

3. Bulk orders will be delivered from our factory within 25 working days at most



(3)Shippment

1. By EMS, DHL, FedEx, TNT, UPS or other express.

 2. By our forwarding agent (by air or by sea).

3. By your own forwarding agent. miniature circuit breaker price

4. By domestic forwarding agents to any city in China

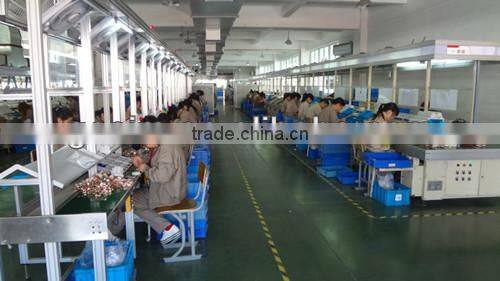

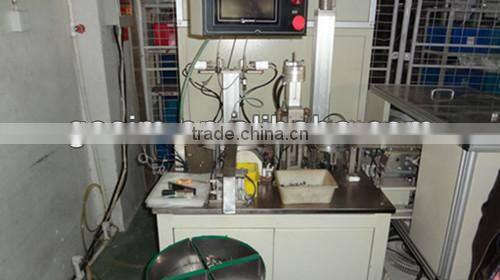

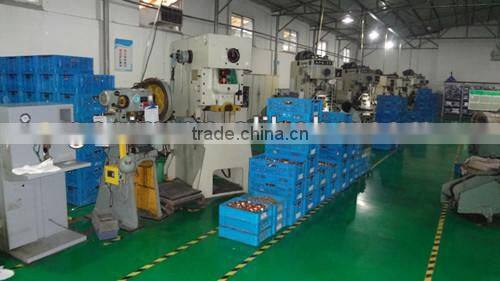

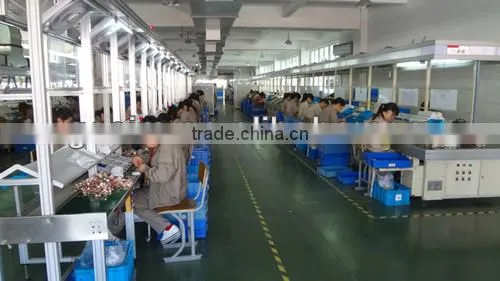

Company Information

we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive

All kinds of energy meterAll kinds of energy meterAll kinds of energy meterAll kinds of energy meter



Our Certificates :
All kinds of energy meter

FAQ

Q1;WHY CHOOSE US?

1.with 20 years experience
2.high quality with fast delivery and good price
3.Rohs approval
4. samples PROVIDED
