Specifications
m611 motor protection circuit breakerrated current:0.16-63A
rated fixed current:0.1-63A
setting range:0.1-80A
motor protection circuit breaker
Application
M611 GV series motor protection circuit breakers are mainly used for the overload and short circuit protection of the motor in AC 50/60Hz,up to 660V,0.1-80A power circuit,as a full-voltage starter to start and cut off the motor,under AC load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.The product includes basic type switch and 26 accessories with purpose of expanding usage.It complies with standard of IEC 60947-2.
Specifications
| Type | Rated current(A) | Rated fixed current(A) |
| M611 | 0.16 | 0.1~0.16 |
| 0.25 | 0.16~0.25 | |
| 0.40 | 0.25~0.40 | |
| 0.63 | 0.40~0.63 | |
| 1.0 | 0.63~1.0 | |
| 1.6 | 1.0~1.6 | |
| 2.5 | 1.6~2.5 | |
| 4.0 | 2.5~4.0 | |
| 6.3 | 4.0~6.3 | |
| 10 | 6.3~10 | |
| 16 | 9.5~16 | |
| 20 | 13~20 | |
| 25 | 19~25 | |
| 32 | 20~32 | |
| 40 | 30~40 | |
| 63 | 40~63 |
| Type | Rated standard power of 3-phase motors 50/60Hz in category AC-3 | Setting range(A) | |||||
| 220V | 380V | 415V | 440V | 500V | 660V | ||
| KW | KW | KW | KW | KW | KW | ||
| GV2-M01 | -- | -- | -- | -- | -- | -- | 0.1-0.16 |
| GV2-M02 | -- | -- | -- | -- | -- | -- | 0.16-0.25 |
| GV2-M03 | -- | -- | -- | -- | -- | -- | 0.25-0.4 |
| GV2-M04 | -- | -- | -- | -- | -- | 0.37 | 0.4-0.63 |
| GV2-M05 | -- | -- | -- | 0.37 | 0.37 | 0.55 | 0.63-1 |
| GV2-M06 | -- | 0.37 | -- | 0.55 | 0.75 | 1.1 | 1-1.6 |
| GV2-M07 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
| GV2-M08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4 |
| GV2-M10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6.3 |
| GV2-M14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6-10 |
| GV2-M16 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 | 9-14 |
| GV2-M20 | 4 | 7.5 | 9 | 9 | 9 | 11 | 13-18 |
| GV2-M21 | 5.5 | 11 | 11 | 11 | 11 | 15 | 17-23 |
| GV2-M22 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 20-25 |
| GV2-M32 | 7.5 | 15 | 15 | 15 | 18.5 | 26 | 24-32 |
| GV3-M06 | -- | 0.37 | -- | 0.55 | 0.75 | 1.1 | 1-1.6 |
| GV3-M07 | 0.37 | 0.75 | 1.1 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
| GV3-M08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4 |
| GV3-M10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6 |
| GV3-M14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6-10 |
| GV3-M20 | 4 | 7.5 | 7.5 | 7.5 | 10 | 11 | 10-16 |
| GV3-M25 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 16-25 |
| GV3-M40 | 11 | 18.5 | 22 | 22 | 25 | 33 | 25-40 |
| GV3-M63 | 15 | 30 | 33 | 33 | 40 | 55 | 40-63 |
| GV3-M80 | 22 | 40 | 45 | 45 | 55 | 63 | 56-80 |

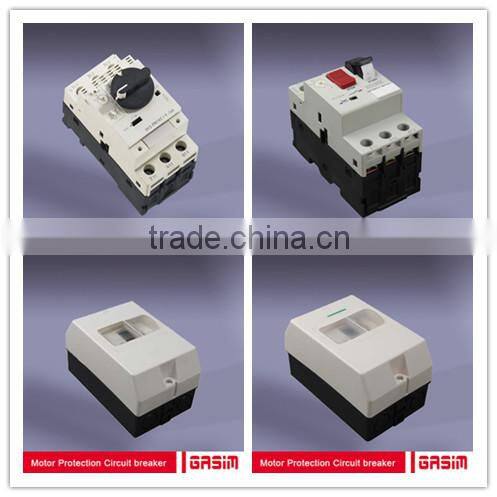

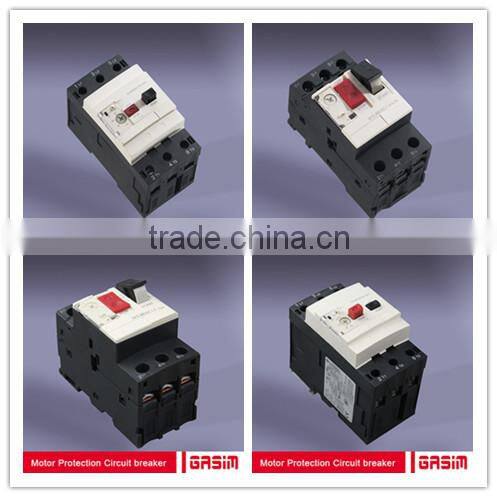

Product show
|
|
|

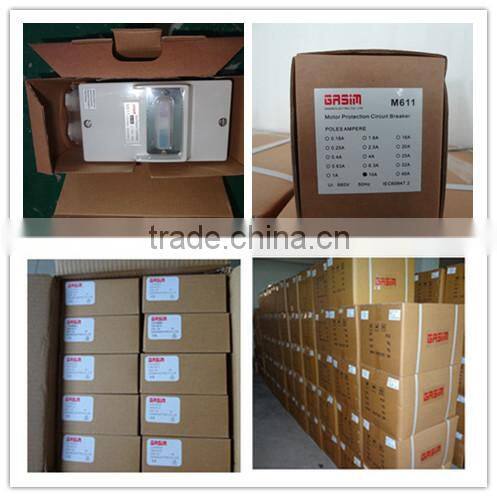

standard export packing for m611 motor protection circuit breaker
(1)Warranty ( 24 months warranty )
1. The warranty starts from the delivery date from our factory;
2. During the warranty, any defective product will get repaired or replaced for free ;
3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.
(2)Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Bulk orders will be delivered from our factory within 25 working days at most
(3)Shippment
1. By EMS, DHL, FedEx, TNT, UPS or other express.
2. By our forwarding agent (by air or by sea).
3. By your own forwarding agent.
4. By domestic forwarding agents to any city in China
we are a manufacturer & exporter , we are sure that we can best support our customers with high quality products and the most competitive products.

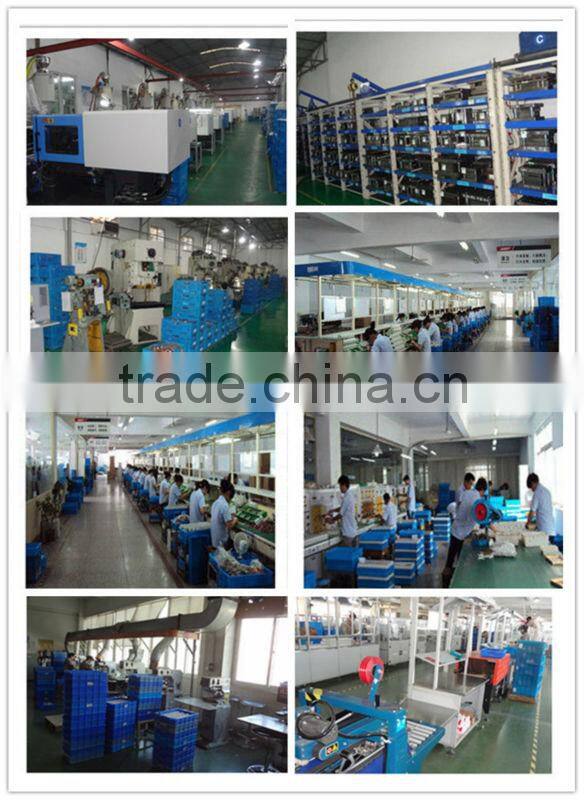

Factory picture
Our markets
| North America | No3 | Rated of buyer 12.5% |
| South America | No4 | Rated of buyer 7.5% |
| Europe | No2 | Rated of buyer 19.2% |
| Asia | No1 | Rated of buyer 35.5% |
| Africa | No5 | Rated of buyer 3.24% |
Certification :
| Certified Picture | Certification Name | Certified By | Product Name & Model No. |
|
ISO9001:2000 | EACC, ANAB | Scope: Sales of Sales of electric appliances .For example: sensors, relays, voltage stabilizers, AC contactors circuit breakers, distribution boxes, industrial plugs & sockets and others . |
|
|
CE |
EPRE |
Mini Circuit Breake&GSB6-63 |
|
|
ETL | ITS | Mini Circuit Breaker&GSL7-63 |
|
GS | TUV | PIR CEILING LAMP&GSL3002B |
|
SAA | SAA | Mini Circuit Breaker &N-7B |
|
CE | EPRE | STANDALOE SENSOR&GSA001 |
