Optical Breadboards, 20mm Thick
Optical plate, optical breadboard, flat plating, flat plate

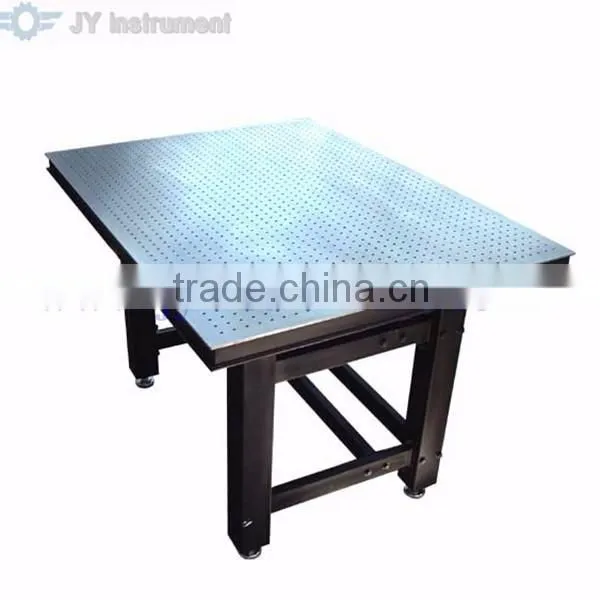

This optical breadboard provide high performance at an economical price. These all-steel breadboards are also an ideal laboratory platform for optical and laser experiments. Since prices and shipping method vary based on size and weight, please contact out sales engineer for a quotation including shipping cost.
Specifications:
*Hole Pattern: Metric M6X1.0 Threaded Hole on 25 mm Centers
*Flatness:0.02-0.05mm/m² Area
*Thickness:50mm
*Construction: Double-plated, single honeycomb core design
*Top and bottom Plates: Magnetic stainless steel, 5mm thick
*Sides: Black laminated steel
Model Number |
Size AXB(mm) |
Thickness C(mm) |
Pitch of holes (mm) |
Diameter of holes |
Weight(kg) |
J01PT300X300 |
300X300 |
50 |
25X25 |
M6 |
10 |
J01PT300X600 |
300X600 |
50 |
25X25 |
M6 |
20 |
J01PT300X900 |
300X900 |
50 |
25X25 |
M6 |
30 |
J01PT300X1200 |
300X1200 |
50 |
25X25 |
M6 |
40 |
J01PT600X600 |
600X600 |
50 |
25X25 |
M6 |
40 |
J01PT600X900 |
600X900 |
50 |
25X25 |
M6 |
60 |
J01PT600X1200 |
600X1200 |
50 |
25X25 |
M6 |
80 |
J01PT900X900 |
900X900 |
50 |
25X25 |
M6 |
90 |
J01PT900X1200 |
900X1200 |
50 |
25X25 |
M6 |
120 |
J01PT900X2000 |
900X2000 |
50 |
25X25 |
M6 |
125 |
J01PT1200X1200 |
1200X1200 |
50 |
25X25 |
M6 |
130 |
