Manual Goniometer Stage, Angle Range +/-10°
Goniometer stages, goniometer table, goniometric stages, manual positioning stages, positioning tables, manual stage +/-10
Production Feature:
*The stage can rotate in small angle
*Dovetail guide design for high loading and accuracy
*The rotation center will be same when it use together with 04SJ10
*Wheel screw can fix the position
*The stages with regular holes for combine with other products easily

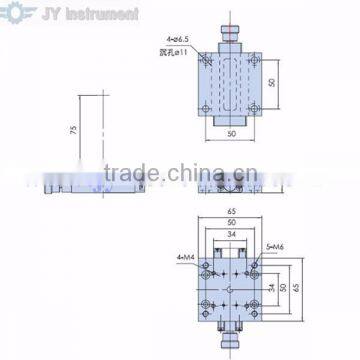

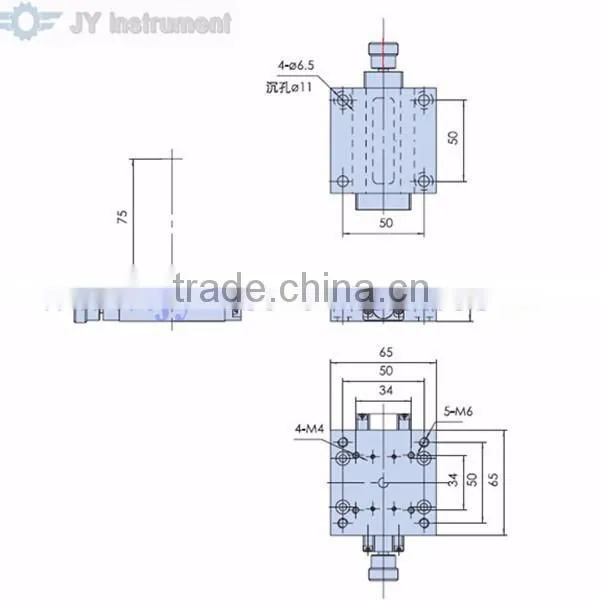

Model Number |
J03SJ10 |
Dimension |
65mm x 65 mm |
Angle Range |
+/-10° |
Height of Rotary Center |
76 mm |
Deviation of Rotary Center |
0.05 mm |
Drive |
Worm Gear |
Guide |
V Guide + ball screw |
Position of Drive |
In center |
Min Scale |
1° |
Min Reading |
6’ |
Min Adjustment |
30” |
Deflection |
200” |
Tilt |
200” |
Loading |
6kg |
Weight |
0.46kg |
Material |
Aluminum |
Surface Treatment |
Black-Anodized |
