FN7-12 12KV Load Break Switch 11KV LBS

FN7-12 12KV Load Break Switch 11KV LBS thumbnail-1
FN7-12 12KV Load Break Switch 11KV LBS thumbnail-2
FN7-12 12KV Load Break Switch 11KV LBS thumbnail-3
FN7-12 12KV Load Break Switch 11KV LBS photo-1
FN7-12 12KV Load Break Switch 11KV LBS photo-2
FN7-12 12KV Load Break Switch 11KV LBS photo-3
US$ 183 - 260 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HOSSIN
Model Number:
FN8
Contact Supplier Request Quote Chat Now
Yueqing Hossin Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HOSSIN
Model Number FN8
Max. Current 200A 400A 630A
Max. Voltage 9KV 10KV 11KV 12KV

FN7-12  12KV  Load Break Switch  11KV LBS





FN7-12 12KV Load Break Switch 11KV LBS

FN-12 Series Indoor High Voltage Load Break Switch (With Fuse And Without Fuse)
Introduction
FN-12DR is used in three-phase AC power network of AC 50Hz, rated voltage 12KV for breaking load current and controlling short-circuit current.
FN(C)-12 type H.V. load switch and fuse box is based on the FN7-12 series H.V. load switch with operating mechanism, make the installation more simpler, can meet orders needs.
Service condition
1. The ambient air temperature: MAX.: +40°C, Min.: -10°C.
2. The altitude does not exceed 1000m.
3. The relatire humidity of air daily average ≤90%, monthly average ≤ 95%.
4. The ambient air should not be obviously polluted by corrosivity or the flammability gas and steam. etc.
5. The working situation without frequent violent.



Why Us?
1. Quality assurance: All the products will go through lots of tests carefully before dispatch: Raw material check, Assemble test, Painting check, Nameplate check and routine tests.
2. Competitive production capacity: monthly production more than 1200 sets .
3. Manufactuer's price: Factory direct sale, most competitive price.

Product Overviews





FN7-12DR is used for three-phase AC 5OHz 12KV power systems. They used for breaking load current and controlling short-circuit current. FN7(C)-12 type H.V load switch-fuse combination is based on the FN7-12 series H.V load switch, then put the operating mechanism on the side, as customer order.

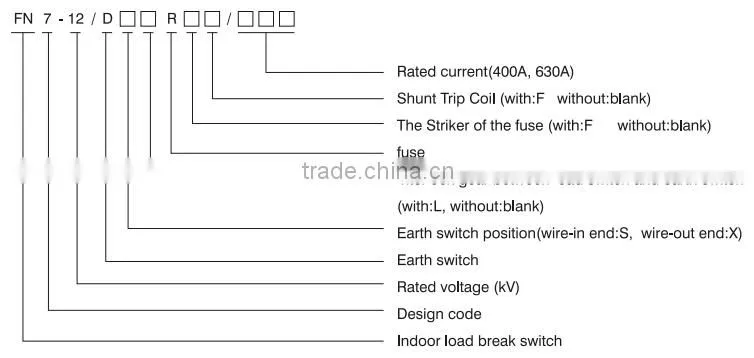

Model&Meaning



 FN7-12 12KV Load Break Switch 11KV LBS





Working Conditions



1. The altitude does not exceed 1000m.

2. The ambient air temperatrue: Max:+40°c, Min:-25°c.

3. The relative humidity of air daily average=95%, monthly average=90%

4. The ambient air should not be obviously polluted by corrosivity and the flammability gas steam, etc

5. The working situation without frequent violent.



Specification





Classification

Types

DS

DX

L

R

RA

F

Earth switch at the wire - in end

Earth switch at the wire - out end

Interlock device

Fuse box

Striking fuse box

Off device by motor

Without tripper

FN7-12

-

-

-

-

-

-

FN7-12DSL

√

-

√

-

-

-

FN7-12DXL

-

√

√

-

-

-

FN7-12R

-

-

-

 √

-

-

FN7-12DSLR

√

-

√

 √

-

-

FN7-12DXLR

-

√

√

√

-

-

With striking tripper

FN7-12RAF

-

-

-

-

 √

√

FN7-12DSLRAF

√

-

√

-

 √

√

FN7-12DXLRAF

-

√

√

-

 √

√







Rated voltage (KV)

Insulation Level

Rated current(A)

4S heatstabling current(KA)

Machine stabling current [peak] (KA)

Short-circuit controlling current(KA)

1min power frequency withstand voltage (KV)

Lighting impuslse resisting voltage [peak] (KA)

12

42

48

400

12.5

31.5

31.5

48

85

630

20

50

50

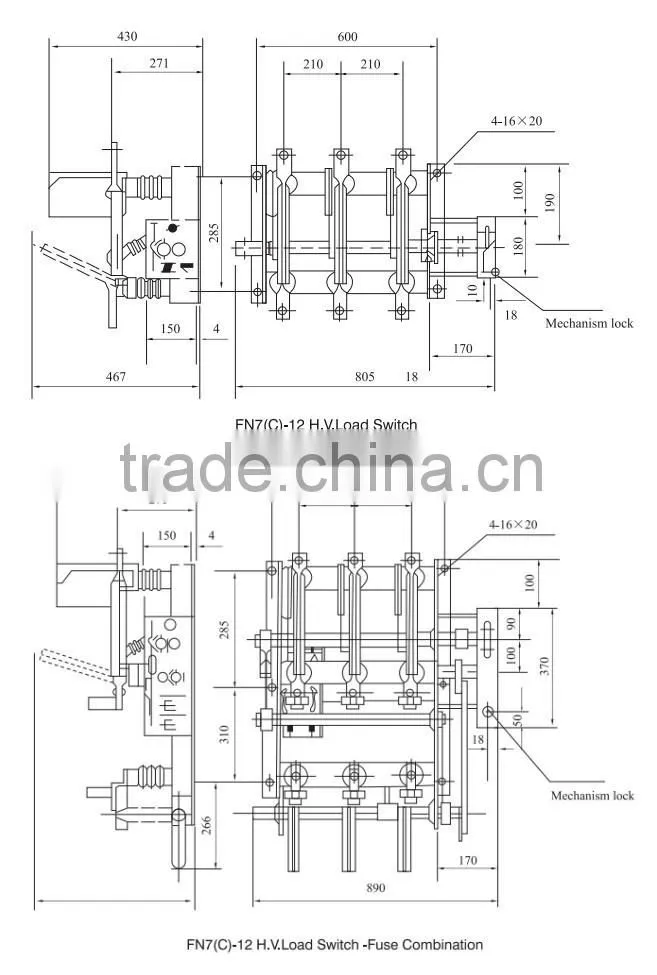

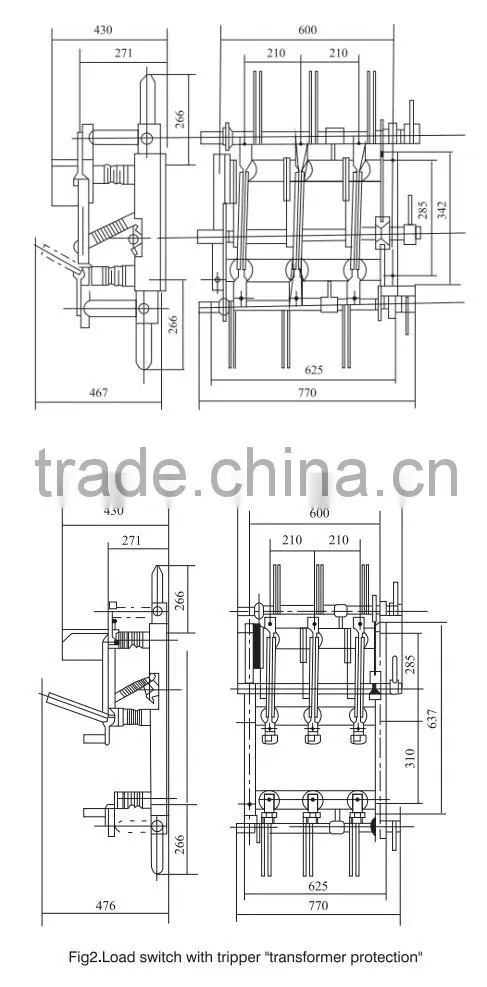

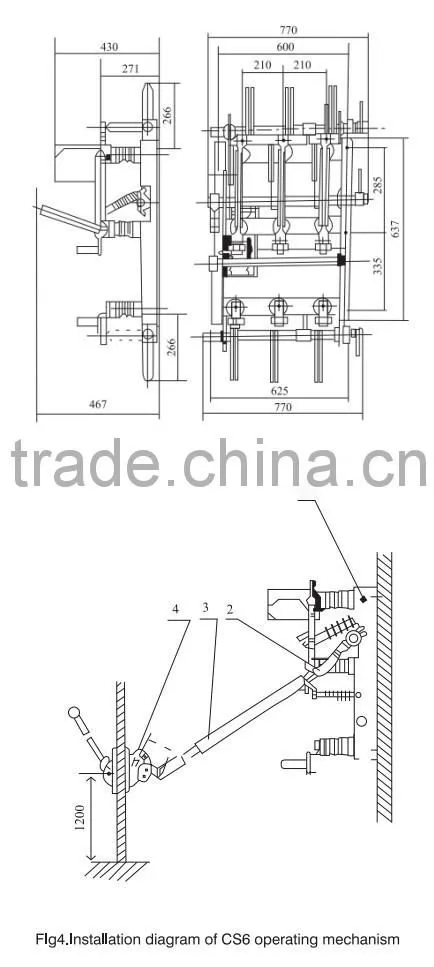

Outline Drawing

 FN7-12 12KV Load Break Switch 11KV LBS





 FN7-12 12KV Load Break Switch 11KV LBSFN7-12 12KV Load Break Switch 11KV LBS
