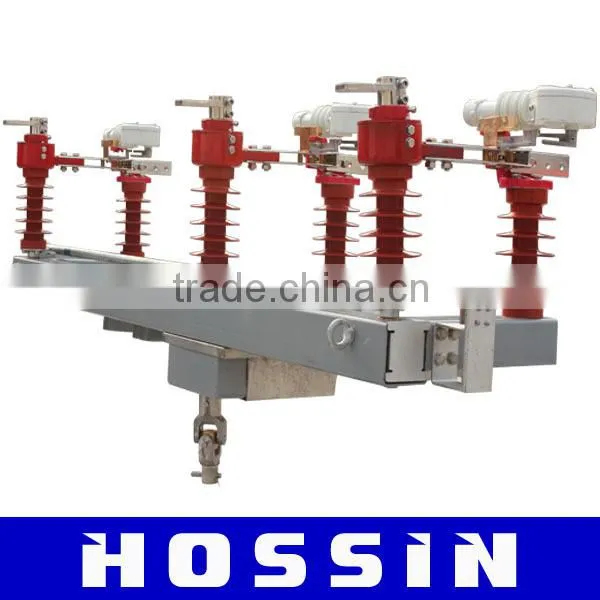

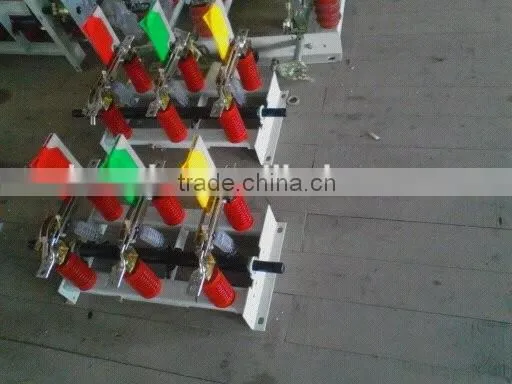

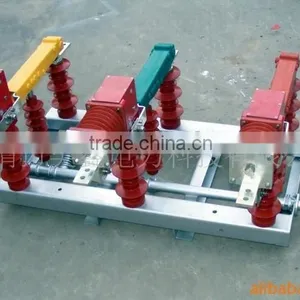

FKW18-12KV FKW18-40.5KV FKW18-35KV Outdoor Load Switch
US$ 200 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
hossin
Model Number:
FW18-12 FW18-40.5 FKW18-12 FKW18-40.5 FKW18-35
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FKN12-12KV FKN12-11KV Indoor High Voltage 11KV Load Break SwitchUS$ 20 - 300MOQ: 1 Piece -
LBS Indoor H.V. Vacuum Load Break Switch FN18-12 With Fuse And Without Fuse 12KVUS$ 200 - 300MOQ: 1 Piece
-
FZN -12 High-voltage Vacuum Load SwitchUS$ 500 - 10,000MOQ: 1 Piece
-
FZN16A-12D/T630 Indoor High Voltage Vacuum Load Break SwitchUS$ 80 - 1,000MOQ: 1 Piece
-
12kv FZN21 Indoor AC hv Load Switch Switch With Fuse CombinationUS$ 500 - 10,000MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
hossin
Model Number
FW18-12 FW18-40.5 FKW18-12 FKW18-40.5 FKW18-35
Max. Current
630
Max. Voltage
12

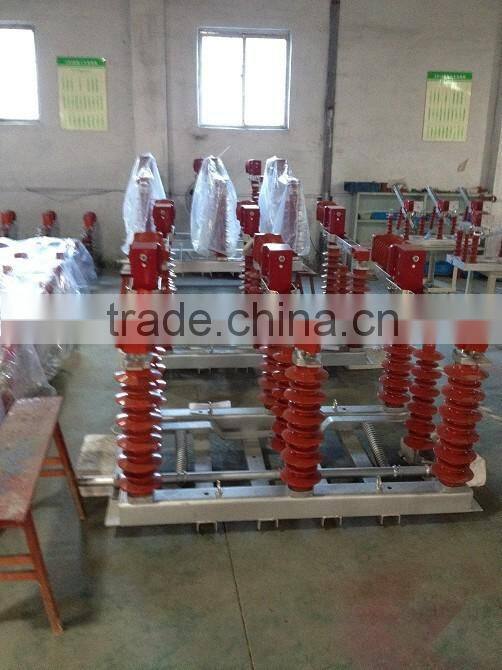

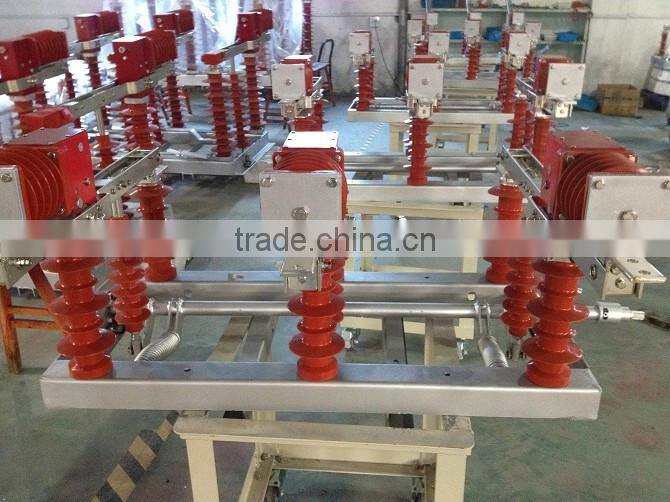

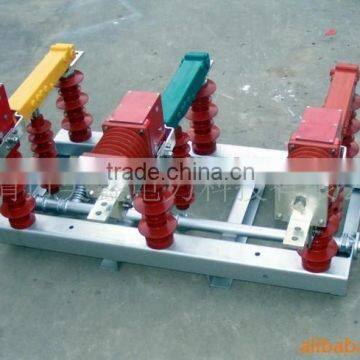

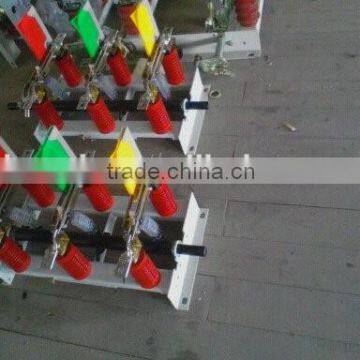

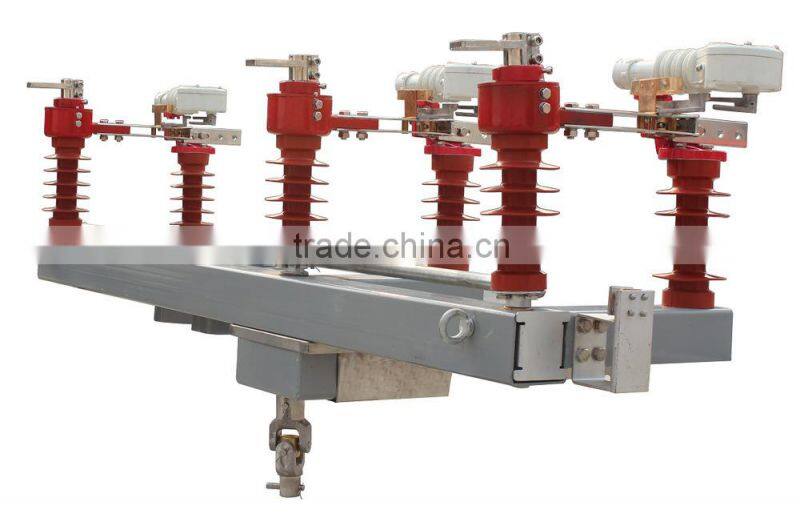

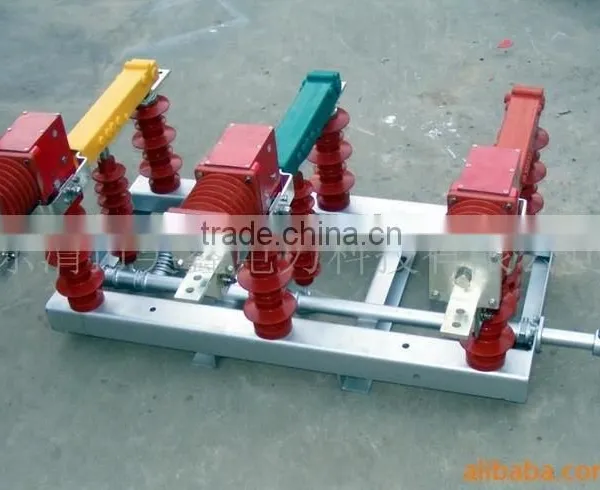

FKW18-12KV FKW18-40.5KV FKW18-35KV Outdoor load switch
Overview
Outdoor HV solation vacuum load switch from my company and Xi’an High Voltage Apparatus Research joint research and development by the company’s first production of a new generation of high-voltage electrical products, through rigorous testing and long-term test pattern running evaluation, the technical performance indicators and IEC standards all reached GB3840 for Rated voltage 12KV, Rated Current 630A, three-phase AC 50Hz supply point network.

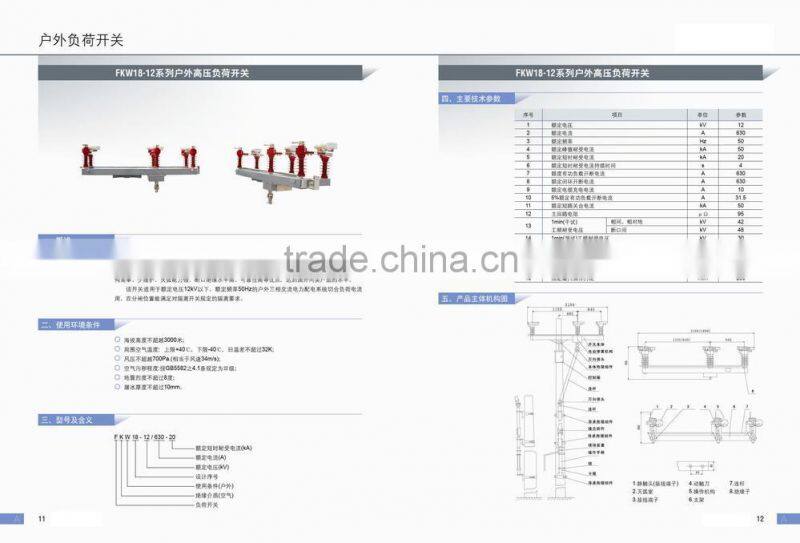

Main technical parameters
| Serial number | Project | Unit | Parameter | |
| 1 | Rated voltage | KV | 12 | |
| 2 | Rated frequency | Hz | 50 | |
| 3 | Rated Current | A | 630 | |
| 4 | Rated active load breaking current | A | 630 | |
| 5 | Rated closed-Loop breaking current | A | 630 | |
| 6 | 5%Rated active load breaking current | A | 31.5 | |
| 7 | Rated cable charging breaking current | A | 10 | |
| 8 | Rated no-load transformer breaking capacity | 1600 | ||
| 9 | Rated breaking current of capacitor | A | 100 | |
| 10 | 1min power frequency withstand voltage :vacuum Fracture,white, relative to /solation Fracture | KV | 42/48 | |
| 11 | Lightning impulse withstand mortgage:white, relative to /solation Fracture | KV | ||
| 12 | Rated short time withstand current (heat stable) | KA | 20 | |
| 13 | Rated short circuit duration | S | 4 | |
| 14 | Rated peak withstand current (dynamic stability) | KA | 50 | |
| 15 | Rated short circuit making current | KA | 50 | |
| 16 | Mechanical life | Times | 10000 | |
| 17 | vacuum interrupter contacts to allow wear | mm | 1 | |
| 18 | Manual torque | N.m | ≤200 | |
| 19 | Adjustment of load switch vacuum Interrupter assembly | Contact opening distance | mm | 5±1 |
| Average gate speed | m/s | 1.1±0.2 | ||
| Different points of three-phase gate | ms | < 5 | ||
| Different points of three-phase gate | ms | < 2 | ||
| Charged and relative distance between | mm | > 200 | ||
| secondary circuit resistance | υΩ | ≥400 | ||
