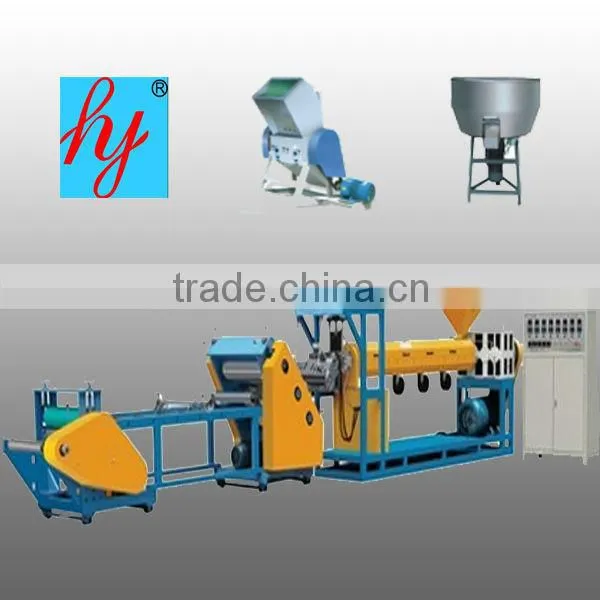

Help CenterHY-670A Single Layer PP/PS Sheet Extruder
Related Products
-
2015 CE Single Layer PP/PS/PE Plastic Sheet/film Extruder/ Double Layer Sheet ExtruderUS$ 30,000 - 35,000MOQ: 1 Set -
PS Plastic Sheet ExtruderUS$ 43,000 - 48,000MOQ: 1 Set
-
Plastic Extruder for PP,PS,HIPS,PEUS$ 30,000 - 35,000MOQ: 1 Set
-
CE Plastic Cup/plate/container Thermoforming Machine Aluminum MouldUS$ 2,500 - 3,500MOQ: 1 Set
-
Plastic Cup Thermoforming Aluminum MouldUS$ 2,500 - 3,500MOQ: 1 Set
Specifications
PS Sheet Extruder1.used to produce PP,PS plastic sheets
2.Advanced frequency converter easily adjusts the linear speed of rol
HY-670A EXTRUDER
B, Single machine configuration
(a), Extruder
1,Material of screw bolt barrel:38CrMoAlA nitrogen treatment;
Hardness of surface:HV≥900;
Depth of Nitriding:0.5-0.8mm
2,Main motor style:
AC motor with frequency converter
3,Reducer:
Special reducer with rigid tooth surface, large twisting moment, high rev and low noise;
4,Filter screen:Double-post hydraulic fast screen changer;
5, Technical data:
Items |
110 Extruder |
Driving motor power(kw) |
45(six grades) |
Diameter of screw(mm) |
110 |
Style of screw |
Separate style |
L/D ratio of screw |
32:1 |
Max rev of screw(rpm) |
80 |
Max amount per day(kg/h) |
160 |
Stages of heating |
5 |
Heating power(kw) |
45 |
(b), Extruder die
1,Structure:
“Clothe bracket” type flow channel; internal heating structure; Fast heating.
2,Material:
High quality medium carbon forged steel, the flow channel surface hard chrome plating, the roughness is Ra0.025μm; the hardness is HV≥850.
3,The width of die can adjust :Space between die lips is adjustable in range of 100 mm.
4,Main technical data of Extruder die
Max effective width(mm) |
800 |
Zones of temperature control |
3 |
Precision of temperature control(°C) |
±1 |
Heating power(kw) |
7 |
(c),Three-roller calender
1,Transmission mode:
Three rollers chains driving, frequency control of motor speed
2,Rollers clearance adjustment:
Clearance shaft adjusts
3,Main technical data
Spec.of press roll |
350×800mm |
Spec.of fixed roll |
350×800mm |
Spec. of chill-roll |
350×800mm |
Motion error range of roller |
≤0.008mm |
Roller roughness |
Ra0.025μm |
Motor power |
3kw |
Roller temperature diff |
≤±3°C |
(d),Roller Temperature Controller device
1,Three rollers circulating cooling water
2,Inside span bladder to increase the cooling effect
3,Crossing the Cr,polishing,midfrequencing,chasing
(e),Trimming Device
1, Blade material: high grade alloy steel
2,Localization rotary cutting;transversely adjustable
(f),Chill-roll
1,Roller specs:76×760 mm;
2,Material:stainlesssteel
(g),Conveying Device
1,Conveying rollers:One rubber roller, the other Chrome-steel-made roller;
2,Driving :Reducer and motor drive,frequency control of motor speed
3,Rollers pressing method:Rubber roller shaft spring pressing
4,Main technical data
Rubber roller spec. |
180×750mm |
Chrome plate roller spec. |
180×750mm |
Motor power |
3kw |
(h),Control cabine
Commodity: ( No separate sale)
Technical date:
1) Spinning blade: 6 pcs
2) Fixed blade: 3 pcs
3)Screen aperture:12
4) Effective caliber: 660 x 480mm
5) Crushing capacity: 800-850kg/hr
6) Overall dimensions (L*W *H):1700*1800*1900mm
7) Weight: 800kg
