Automatic Cake Tray Making Machine

Automatic Cake Tray Making Machine thumbnail-1
Automatic Cake Tray Making Machine photo-1
US$ 20,500 - 43,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
FJL
Contact Supplier Request Quote Chat Now
Zhejiang Fuxinlong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin China
Brand Name FJL
Model Number FJL-SZ680 I
Voltage 380v/50hz
Power(W) 100kw
Dimension(L*W*H) 3.65*1.73*2.5m
Weight 4.4T
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas
Processing Type Other, Plastic Thermoforming Machine
Certification Other, CE, ISO90012008

Specifications

It's used for making various of containers
1.PLC system
2.up+ down heating together
3.high output

 Product Description





Usage

This machine is suitable for producing disposable plastic  fast-food containers,  bowls, plates, food container , articles of daily use and etc .

automatic cake tray making machine



I.Main Technical Parameter

Model

FJL-SZ-680 I

FJL-SZ-750 I

Max. Forming Area

650*320mm

650*420mm

Running Speed

15-30cycles/min(According to sheet thickness, material used and product shape)

Running Pattern

Hydraulic/cam

Hydraulic

Cutting Pattern

In mould automatic

Sheet Material

PP.PS.HIPS.PET.PVC

Sheet Thickness Range

0.2-2mm

Max.forming Depth, Sample Height

120mm

Oil Pump Motor Power

15KW(Double Pump)

Max.Sheet Roll Dia

800mm

Heater arrangement

(120Pieces,650W)Top+Bottom Heating With IR Ceramic Heater

(152Pieces,650W)Top+Bottom Heating With IR Ceramic Heater

Temperature Controller&Thermocouple

PID K-Type

Electrical Consumption

40KW/h

50KW/h

Overall Power

100KW

120KW

Air Cousumption

1.5-1.8m3/min, 0.6-0.8 Mpa

2-2.5m3/min, 0.6-0.8 Mpa

Dimension

3.65*1.73*2.5m

4*1.59*2.6m

Weight(T)

4.4

4.8

Power Supply

380V/50HZ Three phase four wires



II.Major construction features



The sheet feeding pin chain is controlled by motor with encode.

The stretching of plug inside of up mould is controlled by air cylinder.

The operation is controlled by PLC with touch screen.

Adopt four pillars to fix the mould.

Adopt hydraulic system to drive the movement of the mould.

Fill oil automatically to lubricate mechanism movement at certain time.

Temperature control modules to control each temperature area.

Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting in one stroke.

Machine frame adopts square steel, more stable and serviceable.

Convenient operation, reliable performance, low noise and high quality.

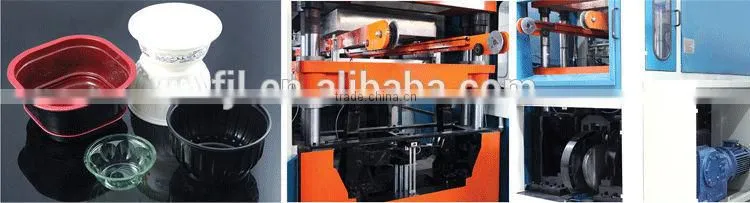

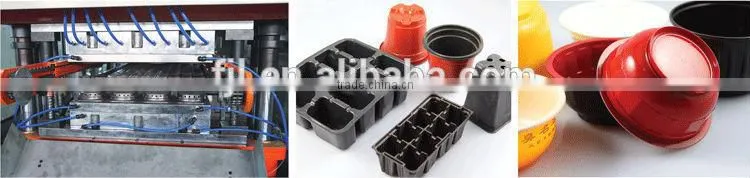

III. Products sample



automatic cake tray making machineautomatic cake tray making machineautomatic cake tray making machine



 automatic cake tray making machine





Packaging & Shipping





PACKING

wooden

automatic cake tray making machineautomatic cake tray making machine







Our Services



Warranty and After-sale service

The warranty of all our testing machine is one year

During this Warranty,it is free to replace the spare parts

Out of this warranty, it only charges the cost of the spare parts

All our testing machines enjoy a long after-sales service



After all machines are delivered to customer’s factory; Seller should assist buyer to finish preparation work, such as electricity supply, water supply, labors and etc.



 Marketing

During Last ten years ,we participated Chinaplas fair , Canton Fair,K show and other professional plastic machinery exhibition at home and aboard. Our products are sold around the world,for example , Sweden, Romania,Russia,Canada,Peru,Mexico,Mideast,Southeast Asia,Africa and etc.



automatic cake tray making machine







Company Information



automatic cake tray making machine

 automatic cake tray making machineautomatic cake tray making machineautomatic cake tray making machineautomatic cake tray making machineautomatic cake tray making machine

Certification

automatic cake tray making machine



Our advantage

Our Company has good after sales service as well as installation and debugging of machine ,technical training, meanwhile we can provide the special equipments according to customer requirement.



Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is “Credit by Quality, Market by Service”.





We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.




FAQ

every machine has Configure single and instructions





Thanks for visiting our website , need more details welcome to contact me any time !

contact person: Sherry chen    Tel:008618358758582
