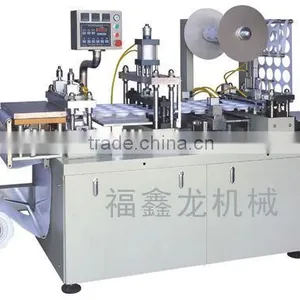

Help CenterFJL-400A PS/PET/PVC Lids Making Machine
Related Products
-
FJL-1000/1250 ZK-B Lunch Box Vacuum Forming MachineUS$ 1 - 3MOQ: 1 Set -
FJL-700/1200ZK-A Egg Tray Vacuum Forming MachineUS$ 19,000 - 21,000MOQ: 1 Set
-
EPS Foam Hi-Speed Vacuum Forming MachineNegotiableMOQ: 1 Set
-
Fjl-610/860bzd-a Vacuum Forming MachineNegotiableMOQ: 1 Set
-
FJL-610/860BZD-B Semi-automatic Vacuum Forming MachineNegotiableMOQ: 1 Set
Specifications
Automatic Plastic Lids Thermoforming Machine is used for molding the plastic material
Usage:
This machine is specially designed for making different kinds of lids for plastic/paper cups,
mini spoons,
trays for medicine and so on.
Major Construction Features:
1, The achievement of GMP/QS double standard p clean production, improve product
hygiene and safety, meanwhile,resolve cross-contamination.

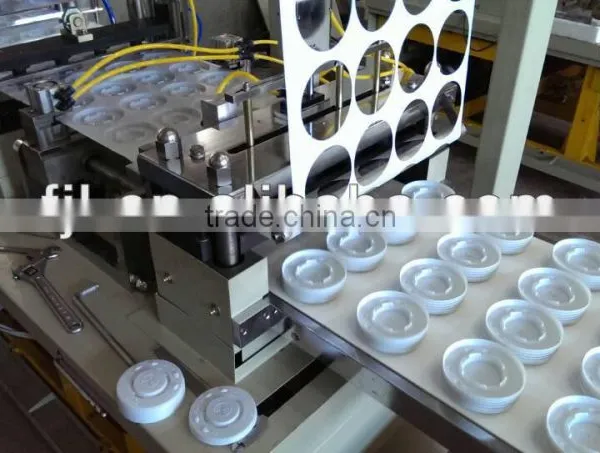

2, Roll Film Loading, Forming, Hole Punching, Transmitting, Roll Film Winding Six-Station Synchronous Production. Manipulator Feeder, Compact Structure & Stable Performance,
Easy Operations.
3, Journey is Adjustable, easy to change mold, suitable for different specifications.
4, The operation is controlled by PLC with PC Circult Control Board for Touch Screen
Main parameters:
Model |
FJL-400A |
Used Material |
HIPS,PS,PVC,PET, and ETC |
Cutting Frequency |
8-32times/min |
Travel Range |
50-160mm |
Max.Forming Depth |
35mm(adding depth style 50mm) |
Max.Forming Area |
400x160mm |
Mould Cooling |
Tap Water of Circulating Water 60L/S |
Total Power |
4.6kw |
Air Consumptions |
>0.3M/Min |
Air pressure |
0.4-0.7Mpa |
Overall Diamensions |
2700 x 830 x 1450mm |
Weight(kg) |
800kg |
ATTN PLS: Special specification and configuration of products can be designed according
to customers’ demand.

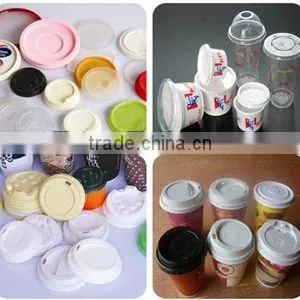

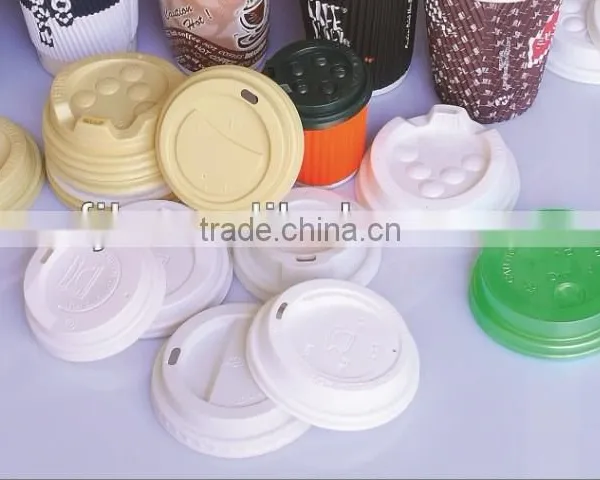

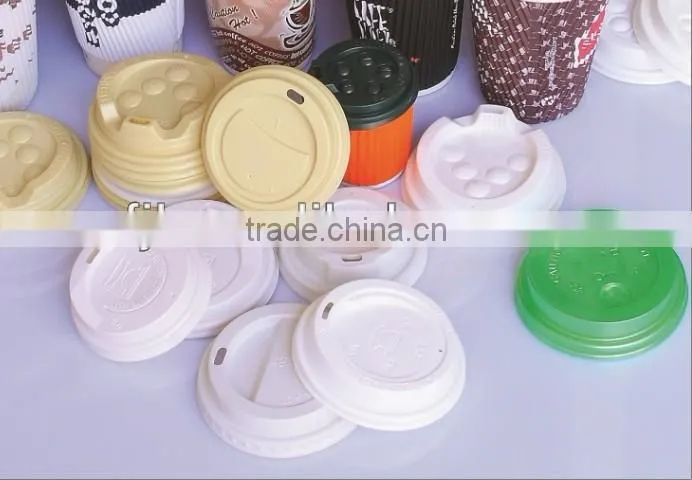

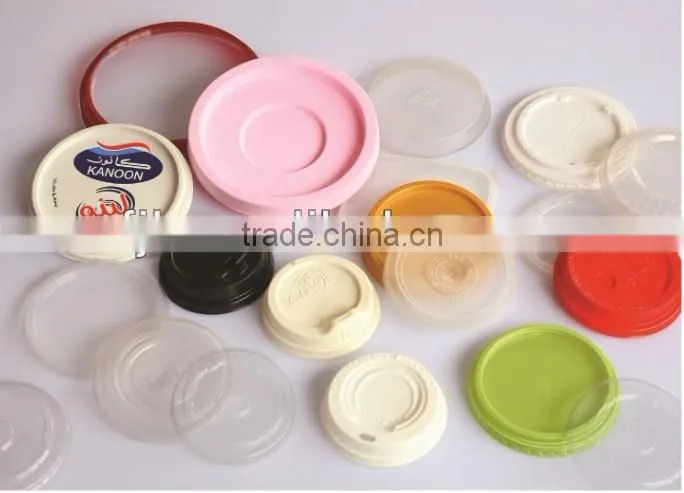

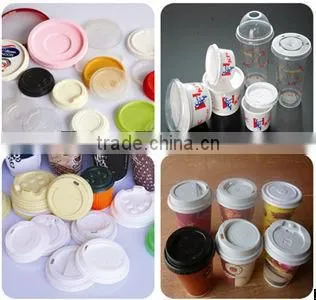

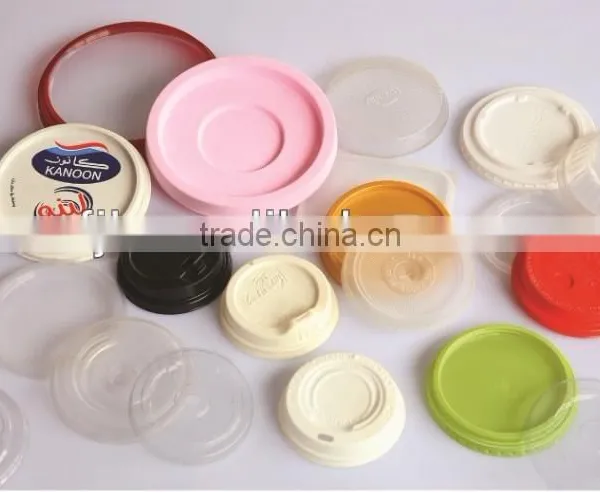

Product samples:

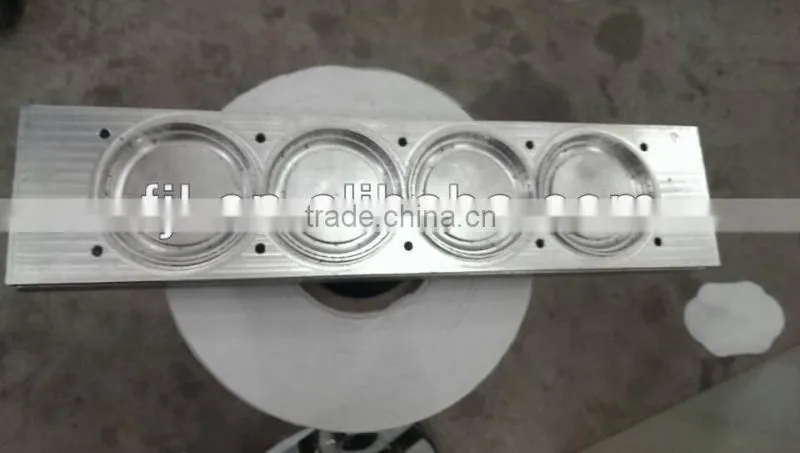

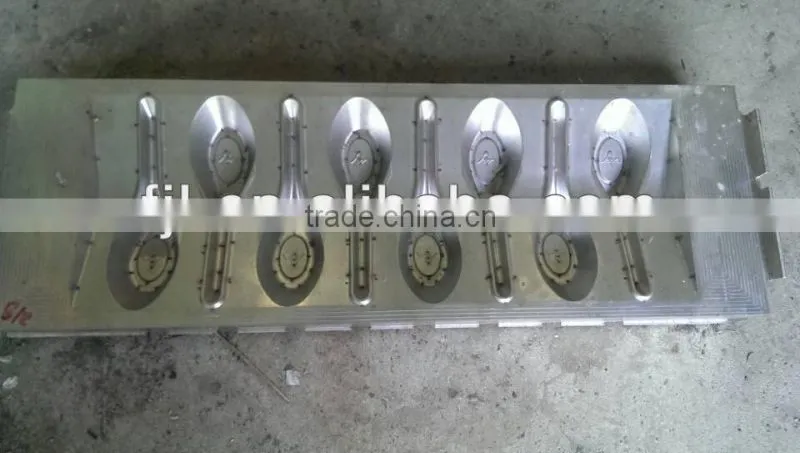

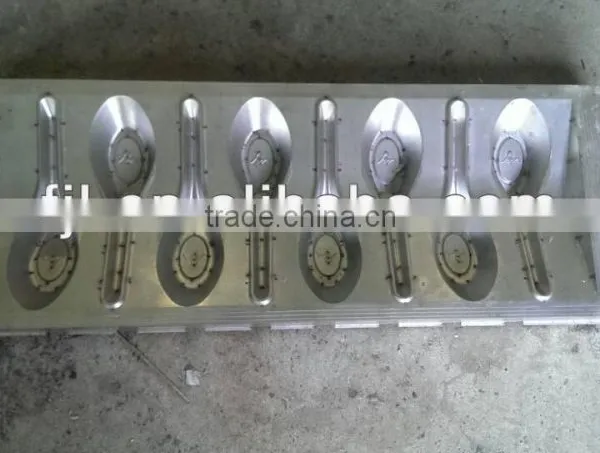

Mold samples:
More questions,pls contact Ms Sarah:
Skype:fuxinlong01 Viber:86-18358758585 Trademanager2014:fjl
