Specifications
This machine is used for making disposable products as plastic cups, plastic bowls and etc.Usage:
This machine is mainly used to form PP/PS/HIPS/PET/PVC sheet into various kinds of disposable
cups, such as water/juice drinking cup, yoghurt cup, ice-cream cup, jelly cup, etc. It also could be
used for making some regular shape containers, such as plate, dish, bowl, covers, etc.
You could make different products with different moulds.
1.max forming area:650 x 320mm
2.max depth:130mm.If much higher,the machine can be designed according to customer's requirements.
stably and high output
I.Main Technical Parameter:
Machine Description |
Full-Automatic Servomotor Controlled Thermoforming Machine |
Model |
FJL-660SB-D |
| Approximate Forming Area | 650*320 mm |
| Strok/min approx.during production | 15-30 |
Require sheet width |
500-660 mm in rolls |
Mode of cutting arrangement |
In mould automatic |
Sheet thickness Range |
0.2-2.0mm |
Material |
PP,PS,HIPS,PET,PVC |
Max forming depth |
130mm |
Oil Pump Motor Power |
15KW |
| Max.Sheet roll diameter | 800mm |
| Heating arrangement | Top+bottom heating with IR Ceramic Heater(104pieces,650W) |
Temperature Controller & Thermocouple |
PID K-Type |
Type of Mould |
Multi cavity 1 to 4 rows |

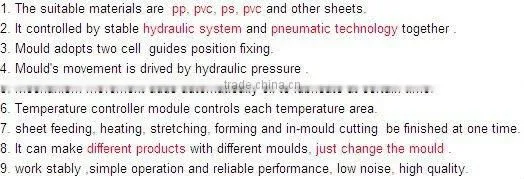

II.Major Construction Features
III.Marketing
During Last ten years ,we participated Chinaplas fair , Canton Fair,K show and other professional plastic machinery exhibition at home and aboard. Our products are sold around the world,For example , Sweden, Romania,Macedonia,Russia,Canada,Peru,Mexico,Mideast,Southeast Asia,Africa and etc.
Installation and guarantee time:
We can send technicians to customers’ factory to help install and adjust the machines.
Guarantee time of our machines is one year.Within guarantee time,if some spare parts are damaged or
broken not caused by human factors,we will send customers’ these spare parts free of charge,but
the freight should be on customers’ account.

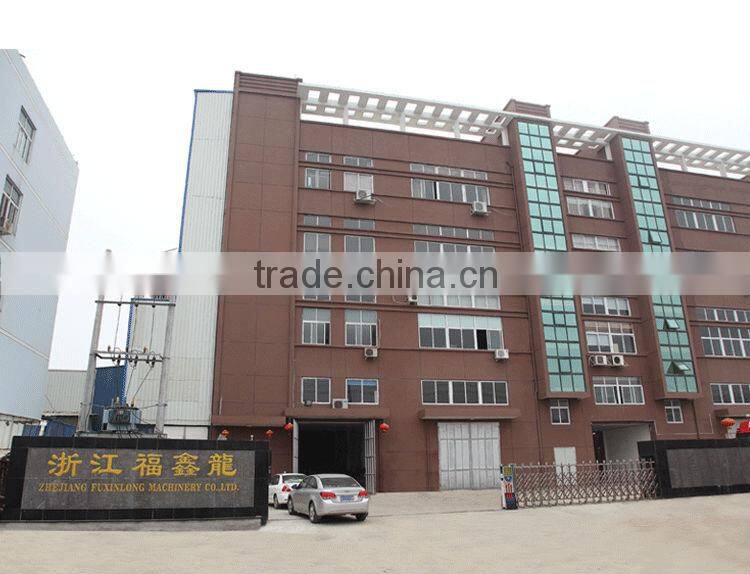

Zhejiang Fuxinlong Machinery CO.,LTD,located in Linyang industrial zone,Nanbin Street,Ruian City,Zhejiang
Province,China,is a professional manufacturer of plastic sheet extruder,thermoforming machine,automatic plastic
vacuum forming machine and whole set of plastic packaging equipments.After more than ten years’ accumulation,
our company has the professional technicians,we also have the ability of research and development of new products.
Now our machines have been widely used more than 62 countries all over the world.
Our company possess of strong technology force with perfect after sales service,as well as assembling&
debugging,personnel training,molds design,and considerate service for clients who have the special requirements
of machines.
“Pursuing the international advanced level and satisfying the clients’ expectation” is our company’s quality policy. “
Challenge ourselves and create excellent”is our company’s management idea.Fuxinlong people welcome new and
old customers in domestic and overseas to visit our factory for establishing a long term
and friendly business relationship in the near future.
During the last ten more years,we participated Chinaplas Fair,K Show and other professional plastic machinery e
xhibition both domestic and overseas.Our products are sold around the world,such as Sweden,Romania,USA,
Macedonia,Russia,Canada,Peru,Mexico,Peru,Middle east,Southeast Asia,Africa and so on.
We have excellent after sales department who can provide considerate service to our customers.
Thank you for visiting our website.
If More questions of our machine,pls contact Ms Sarah Zhao:
Skype:fuxinlong01 Tel:+86-18358758585
IV.Our Certification

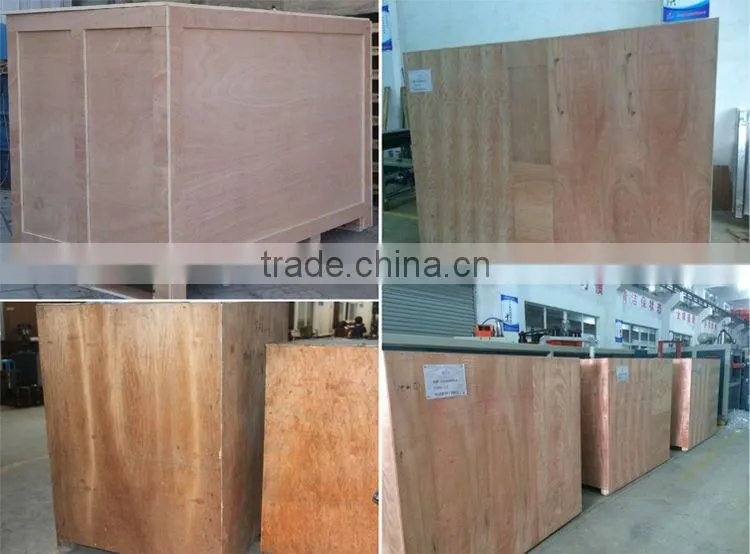

Machines will be packed in export standard packing
