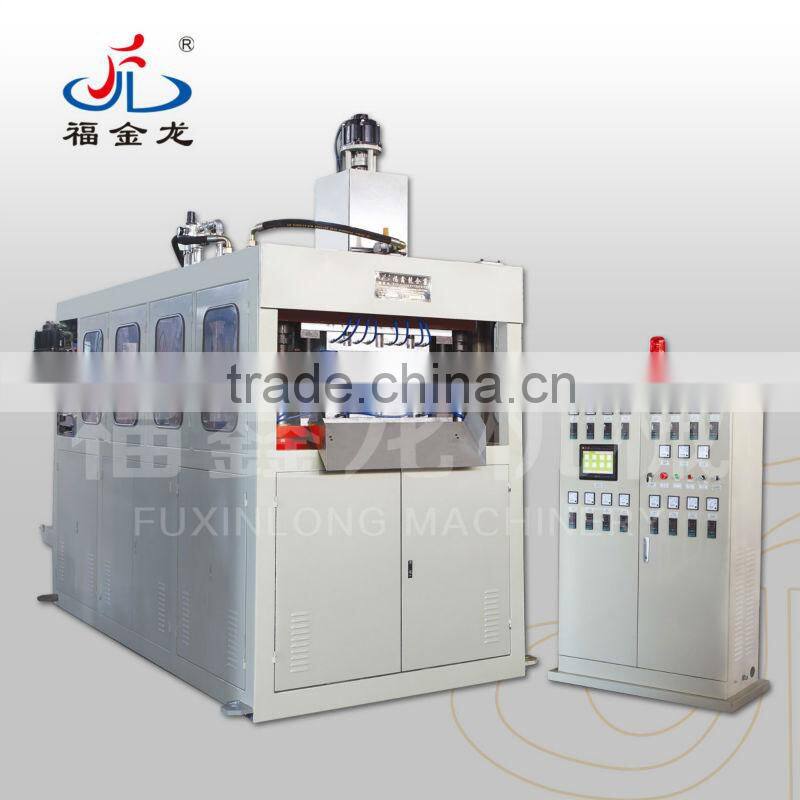

automatic machine of disposable plastic glass

Specifications

automatic machine of disposable plastic glass
1.operated by PLC and touch screen
2.Good qulity ,work stable
3.Certifica:CE

automatic machine of disposable plastic glass









This machine is used for making disposable products as plastic cups, plastic bowls, ice cream cups, cold drinking cups, yoghurt cups, instant-food boxes and bowls, dishes, trays,lids and etc.





I.Main Technical Parameter



Model	FJL-660SB-C II
Max. Forming Area	650*320mm
Running Speed	15-30cycles/min(According to sheet thickness, material used and product shape)
Running Pattern	Hydraulic/cam
Cutting Pattern	In mould automatic
Sheet Material	PP.PS.HIPS.PET.PVC
Sheet Thickness Range	0.2-2mm
Max. forming Depth, Sample Height	120mm
Oil Pump Motor Power	15KW
Stretching/Feeding Servo-Motor Power	5KW/4.4KW
Max. Sheet Roll Dia	800mm
Heater arrangement	(120Pieces,650W)Top + Bottom Heating With IR Ceramic Heater
Temperature Controller & Thermocouple	PID K-Type
Electrical Consumption	45KW/h
Overall Power	100KW
Air Consumption	1.5-1.8m3/min, 0.6-0.8 Mpa
Dimension	3.4*1.57*2.5m
Weight(T)	4.4
Power Supply	380V/50HZ Three phase four wires





II.Main Construction Features



The sheet feeding pin chain is controlled by servo motor, The feeding length is more precise and it can be adjusted in parameter setting through touch screen.

The stretching of plug inside of up mould is controlled by servomotor.

The operation is controlled by PLC with touch screen.

Adopt two pillars to fix the mould.

Adopt hydraulic system to drive the movement of the mould.

Fill oil automatically to lubricate mechanism movement at certain time.

Temperature control modules to control each temperature area.

Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting in one stroke.

Machine frame adopts square steel, more stable and serviceable.

Convenient operation, reliable performance, low noise and high quality.





III.Machine Parts





IV.Mould sample









V.Products sample

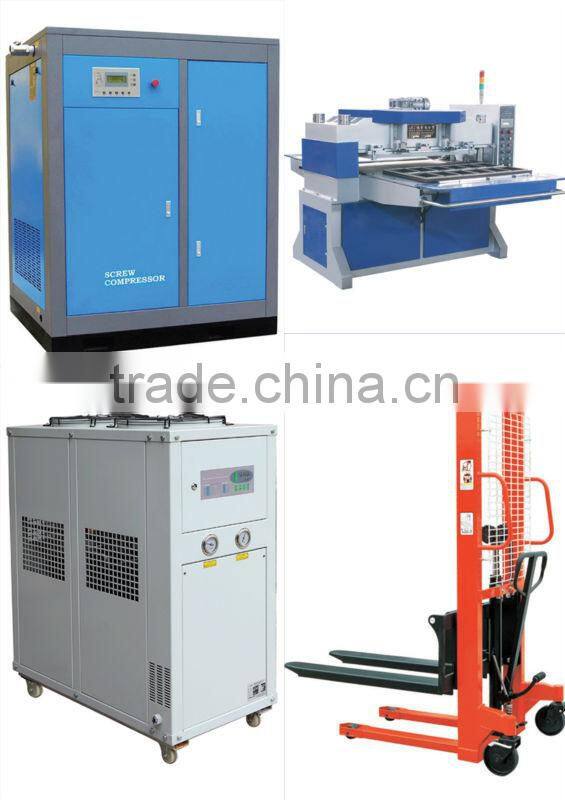

the auxiliary equipment











During Last ten years ,we participated Chinaplas fair , Canton Fair,K show and other professional plastic machinery exhibition at home and aboard. Our products are sold around the world,such as, Sweden, Romania, Macedonia, Russia, Canada,Peru,Mexico,Mideast,Southeast Asia,Africa and etc.



VII.Certification





VIII.Our advantage



Our Company has good after sales service as well as installation and debugging of machine ,technical training, meanwhile we can provide the special equipments according to customer requirement



Warranty and After-sale service

The warranty of all our testing machine is one year

During this Warranty,it is free to replace the spare parts

Out of this warranty, it only charges the cost of the spare parts

All our testing machines enjoy a long after-sales service

Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is “Credit by Quality, Market by Service”.

We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.















machine adjustment and installation



     we can send technicians go to customers' country for mahchine adjustment and installation



gaurantee time and after-sale



    one year guarantee time, after one year , we have professional after-sales department providing best service if any problems.
