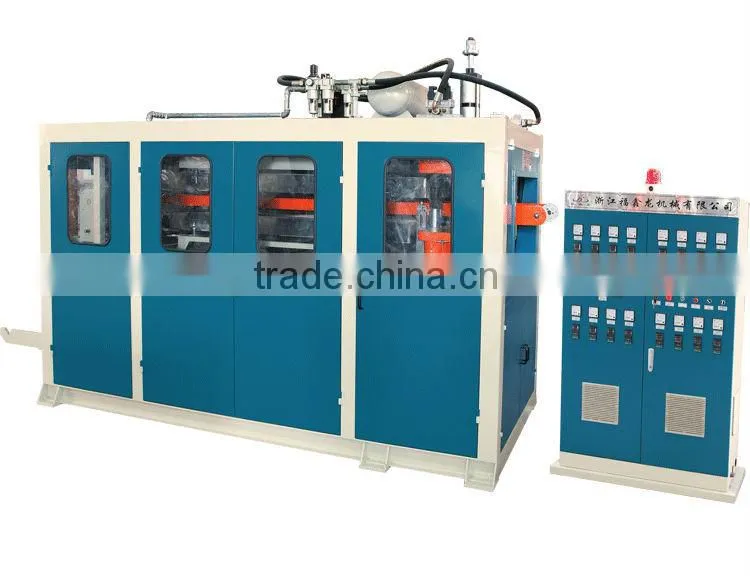

Help CenterSZ-680 Plastic Thermoforming Machine
Related Products
-
FJL-660SB-E Plastic Deep Cup MachineUS$ 27,000 - 29,000MOQ: 1 Set -
SZ-680 Plastic Cup Thermoforming MachineUS$ 25,000 - 26,000MOQ: 1 Set
-
Automatic FJL-530/760 Air Pressure Plastic Thermoforming MachineUS$ 30,000 - 45,000MOQ: 1 Set
-
SZ-680II Plastic Glass/ Box/ Cup Making MachineUS$ 18,000 - 30,000MOQ: 1 Set
-
FJL-660SB-B Plastic Cup Thermoforming MachineUS$ 18,500 - 21,000MOQ: 1 Set
Specifications
This cup machine is suitable for making PP, PS, PET water drinking cup, lids, square tray and plate.
Main Features:
This PP/PS/PET water drinking cup making machine is full-automatic plastic cup making machine which adopts servo-motor to feed and draw sheet. It controls by PLC and touch screen.
1)It is used to produce such plastic products as disposable plastic cups, plastic bowls, ice cream cups, cold drinking cups, yoghurt cups, instant-food boxes and bowls, plastic dishes, plastic trays, plastic covers, plastic lids, vessels for fast food and pharmaceutical linings.
2) Its forming sheets as PP, PVC, PS, and PET and other sheet.
3) It adopts PLC and touch screen control equipment operation.
4) Mould adopts four cell guides position fixing.
5) Mould movement adopts hydraulic pressure drive.
6) Mechanism movement adds automatically oil to lubricate at certain time.
7) Temperature controller module controls each temperature area.
8) It can finish production at one time through sheet feeding, heating, stretching, forming and in-mould cutting.
9) It can produce different products by different moulds.
10) Stable operation and reliable performance, low noise, high quality.
11) Machine frame adopts square steel
Samples of products:
Samples of mould:
Main Technical Details:
Model |
SZ-680 |
Max.Forming Area |
650 x 320 mm |
Running Speed |
around 15-32 cycles/min |
Require Sheet Width |
500 – 660 mm |
Mode of Cutting Arrangement. |
In mould automatic |
Sheet Thickness Range |
0.20 – 2.0 mm |
Required Material |
PP,PS,PET,PVC |
Max. Forming Depth |
130 mm |
Main Motor Power |
15KW |
Max. Sheet Reel Dia. |
800 mm |
Heating System |
Top + bottom Heating with IR Ceramic Heater, total 15 heating zones. |
Temperature Controller & Thermocouple. |
PID K-Type |
Type of Mould |
1 - 4 Rows |
Water Consumption |
0.5-1.0m3/h(recycled) |
Gas Consumption |
1.3-1.6m3/min, 0.6-0.8Mpa |
Approx. Electricity Consumption |
45KW/hr |
Dimension |
3500×1500×2500mm |
Weight |
4800Kg |
Main Configuration Details:
ELECTRICITY PARTS |
Temperature Controller;Gaoqi,Changzhou |
|
Relay:OMRON, Japan | ||
Auxiliary Relay:OMRON | ||
Stretching Servo Motor:4.4KW, Yaskawa, Japan | ||
Feeding Servo Motor:3KW, Yaskawa, Japan | ||
PLC:DELTA,Taiwan | ||
Touch Screen:WEINVIEW,Taiwan | ||
Infrared Ceramic Heater:Yunpai, China | ||
Temperature Controller Module:Huanan, China | ||
Ammeter & Voltmeter:Huanna, China | ||
OIL CIRCUIT PARTS |
Overflow Valve:Yuken,Japan |
|
Selector Valve:Yuken,Japan | ||
Oil Hydraulic Cylinder:Yuchi,China | ||
Cooler:Fangli, China | ||
AIR CHANEEL PARTS |
Electromagnetic Valve |
2 positions 5 ways: CKD |
2 positions 3 ways: CKD | ||
2 positions 2ways: SMC | ||
Pneumatic Cylinder:Yida,China | ||
Spare Parts List with machine
Operational Manual: 1 pc
Adjustable Spanner: 2 pcs
Screw Driver: 2 pcs
Pliers: 1 pcs
Spanner (Hexagon): 1 set
Kettle for Adding Oil: 1 pc
Dull Spanner M8-M24: 1 set
Cutting Pliers: 1 pcs
Elastic Ring Pliers(For Axis): 1 pc
ElasticRing Pliers(For Aperture): 1 pc
Proximity Switch: 2 pcs
Mic- Relay: 2pcs
Heater Wtih Two Wires: 4 pcs
With Four Wires: 2 pcs
Thermo Controller: 1 pcs
Voltage Adjustor: 2pcs
