Specifications
1. high quality and efficient production2.high-grade and high-volume extruded wet-forming green ceramic tiles and bricks, etc.

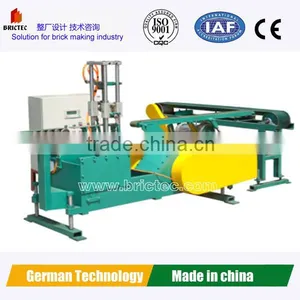

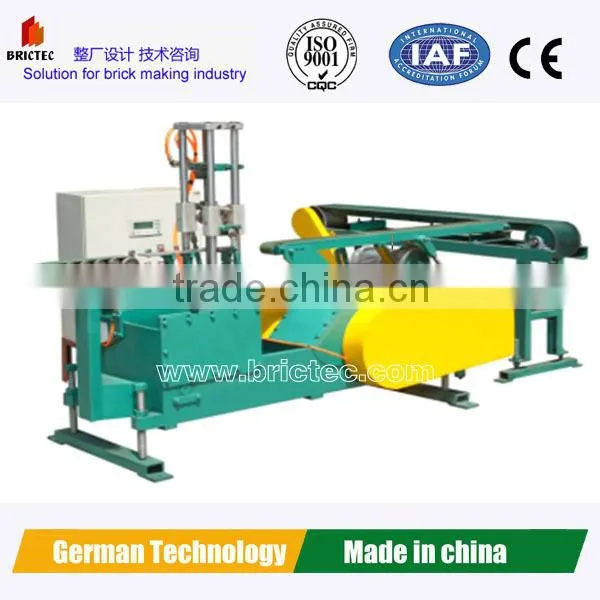

VERTICAL SYNCHRONOUS CUTTER
l Patterned technology specially made for the stood conveying and cutting process synchronously matched with high-grade and high-volume extruded wet-forming green ceramic tiles and bricks, especially for making the high-class split tiles, woody tiles, clay bricks etc.
2 Superior features of 6N+2L+3H ensure high quality and efficient production. (6N--No cutting leftovers & its recycle process, No man-made errors, No sliding friction surface default, No kerosene used & its pollution problem. 2L--Low worker’s & material’s cost. 3H--High cutting precision, out put and performance-price ratio). Multi-acting cutting unit of SF type can servo driven, controlled and adjustable for double-acting or treble-acting according to the specific requirement.
tile making machine, floor tile making machine, ceramic tile making machine, roof tile making machine, ceramic floor tile making machine, floor tile making machine price, tile machine, tile cutting machine, roof tile making machine, ceramic tile making machine, roof tile machine, ceramic tile printing machine, tile manufacturing machine, clay roof tile machine, ceramic tile cutting machine, clay tile machine, machine to make tile, clay tile making machinery
TECHNICAL PARAMETERS
Description |
LSTB-A Parameters |
LSTB-SF Parameters |
Dimension LxWx H |
2,500x800x1,400 (mm) |
2,750x840x1,450 (mm) |
Capacity |
1 ~ 60 (pieces / min) |
120 ~ 180 (pieces / min) |
Cutting Frequency (Synchronous with Extruder ) |
1 ~ 45 (1 / min) Adjustable |
1 ~ 60 (1 / min) Adjustable |
Cutting precision |
±1.0 (mm) |
±1.0 (mm) |
Cutting length Range |
200 ~ 350 (mm) |
40 ~ 270 (mm) |
Cutting Width Range |
≤180 (mm) |
200 ~ 250 (mm) |
Motor Power |
1.9 (kw) |
2.25 (kw) |
Net Weight |
≈ 1000 (kg) |
≈ 1500 (kg) |
ceramic tile production line, floor tile production line, tile production line, rubber tile production line, ceramic tile manufacturing plant, tile plant, tile floor plant, ceramic tile factory, tile factory, roof tile
PRODUCT SAMPLES
