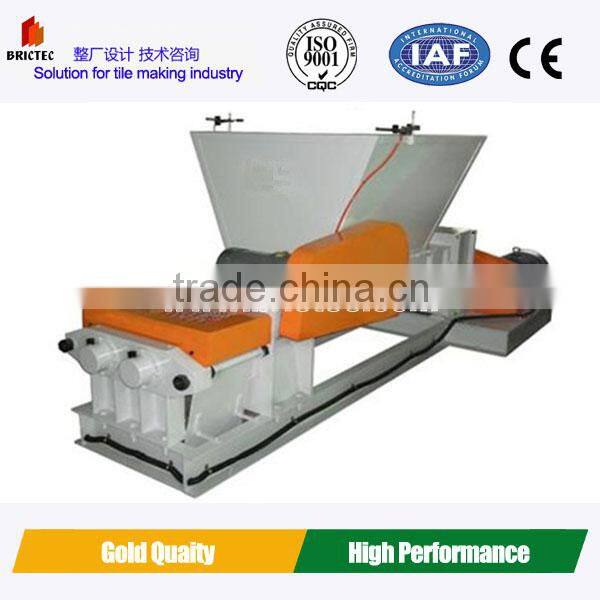

DOUBLE-STAGE VACUUM EXTRUDER
----- Type TL-CXJ-FII56-45
Leading technology specially made for high-grade extruded wet-forming building material products,
ceramic plates, terracotta panels, hollow brick and paving bricks etc., especially for making all kinds of bigger squire sizes or thinner hollow or solid calcium silicate board,artificial stone plates with holes or without holes,hollow or solid fiber cement board building materials.
----Unigue designed upper & lower double-stage stirring mixer, filling in & de-airing chamber & auger propelling barrel of bigger diameters and casting-steel-structured machine body, high strength and cone-shaped planetary gear-unit,helical bevel gear redactor and the special alloy steel augers, mixing and extrusion double-stages frequency controlled and coordination matched in bigger production capacity & output level to ensure high quality, efficient and reliable production.
Description |
FII56-45 Parameters |
Dimension LxWx H |
5,465x2,765x2,315 (mm) |
Production Capacity |
6 - 90 (tons / hr) Adjustable |
Degree of Vacuum |
≤ - 0.097 (MPa) |
Augers Nominal Diameter |
560 / 450 (mm) |
Extruding Pressure |
3.5 (MPa) |
|
Motor Power
|
(Mixing/Extruding/Vacuum Pump) (30+4X2) /(75-110) (kw) |
Weight |
≈ 12100 (kg) |
Company Information
1.We majors in the abroad & home fired-brick designing, kiln designing, factory building designing and turn-key project.
2.We have many professional specialists, among which 6 are professor-level engineer and 10 are of high title.
3.We have accomplished over 50 brick projects of engineering, trading, technical support in Asia, Africa and South American countries.
4.We have also successfully constructed over 20 production lines in China.
The business scope of our company is:
u Turnkey project of brick plant
u Design & Build Complete Modern Brick Plant
u Consultancy Services for Brick Plant
u Retrofit and Modernize of Existing Brick Plant
u Supply Brick Making Machinery
u Build Dryer & Kiln
Our Services
Before-sale services:
(1) Tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing.(Confirm clay,power electricity,water,land area, fund)
(2) Guide customers to choose the best and economic plant, recover the investment within short time.
(3) site inspection
(4) We are responsible for the offer, flow chart, and detail specification of each machinery.
In-Sale services:
(1)Quality control must be inspected strictly
(2)In accordance with the agreements stipulated in the contract
After-sale services:
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.
(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
1. Daily wear and tear 2.mishandling or improper operation
3. Incoming power supply fluctuation 4. Consumable and spare parts.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.
Related tile making machine for production line
Box feeder

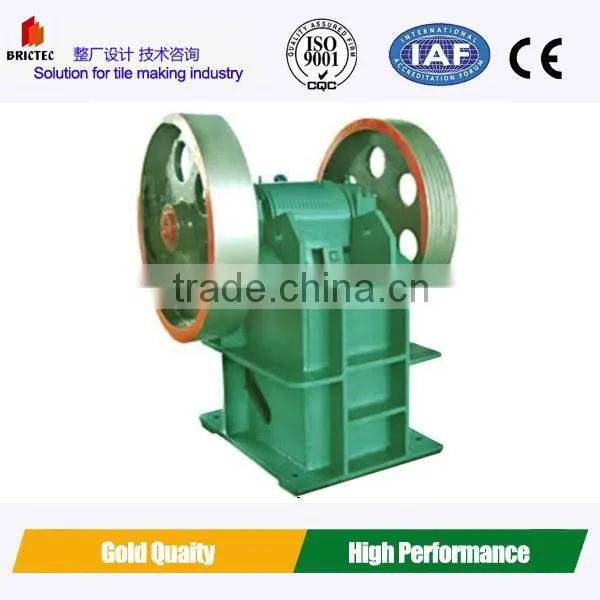

JAW CRUSHER
Auto LARGE-SIZE TILE HORIZONTAL CUTTER
HIGH-SPEED MIXING GRANULATOR
