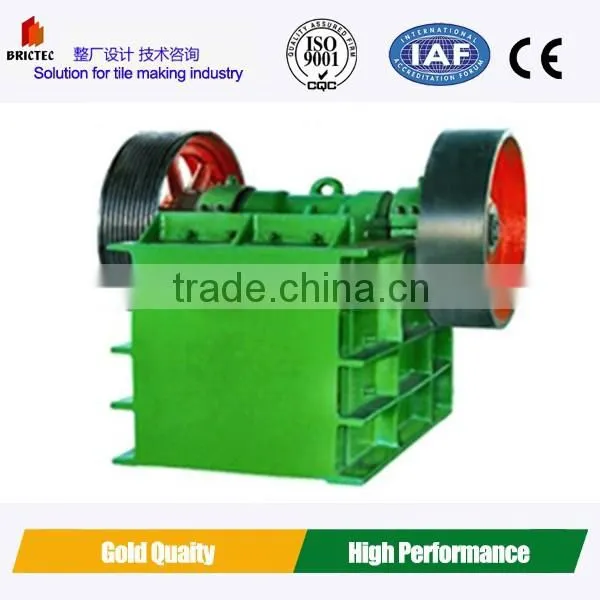

JAW CRUSHER FOR CERAMIC TILE PRODUCTION LINEUS$ 10,000 - 100,000MOQ: 1 Set
Product Description
Type SY18.5-18.5 specially made for the trial-production process,or small-scale output production of
extruded wet forming ceramic tiles and bricks, like split tiles, wall or floor tiles, ceramic plates etc., to meet all kinds of extrusion trial-process requirements.
Type SY18.5-18.5HP(with cutter) specially made for the trial-production process used in laboratory,or
small-scale output production of extruded wet forming compound strips, pellets like article mud, carbon strip, coal granule etc., to meet all kinds of extrusion trial-process requirements.
Technical Parameters
Description |
SY18.5-18.5 Parameters |
SY18.5-18.5HP Parameters |
Dimension LxWx H |
2,700 x 1,130 x 570 (mm) |
3,750 x 575 x 1,050 (mm) |
Production Capacity |
1 - 3 (tons / hr) Adjustable |
0.8 - 4 (tons / hr) Adjustable |
Degree of Vacuum |
≤ - 0.092 (MPa) |
≤ - 0.095 (MPa) |
Augers Nominal Diameter |
185 / 185 (mm) |
185 / 185 (mm) |
Max Shaft Diameter |
75 (mm) |
80 (mm) |
Extruding Pressure |
1.5 (MPa) |
3 (MPa) |
Mixing / Extruding Motor Power |
11 (kw) |
15 / 0.7.5 (kw) |
Net Weight |
≈ 430 (kg) |
≈ 1500 (kg) |

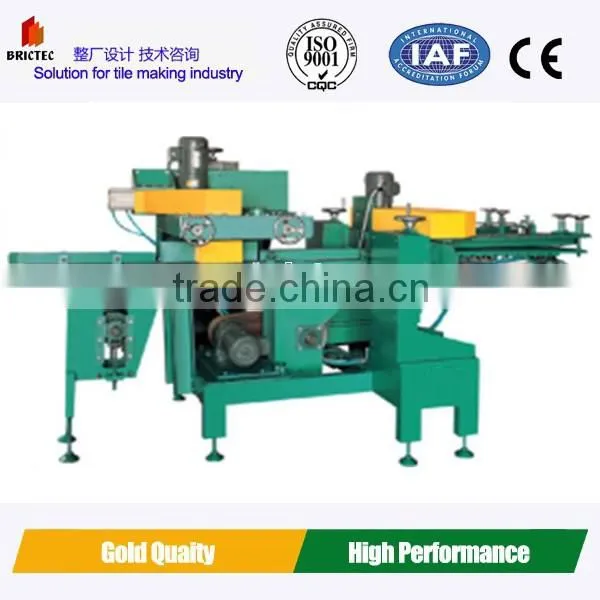

Other products for making tile as follows
Company Information
1.We majors in the abroad & home fired-brick designing, kiln designing, factory building designing and turn-key project.
2.We have many professional specialists, among which 6 are professor-level engineer and 10 are of high title.
3.We have accomplished over 50 brick projects of engineering, trading, technical support in Asia, Africa and South American countries.
4.We have also successfully constructed over 20 production lines in China.
The business scope of our company is:
Turnkey project of brick plant
Design & Build Complete Modern Brick Plant
Consultancy Services for Brick Plant
Retrofit and Modernize of Existing Brick Plant
Supply Brick Making Machinery
Build Dryer & Kiln
Packaging and Shipping
Our Services
Before-sale services:
(1) Tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing.(Confirm clay,power electricity,water,land area, fund)
(2) Guide customers to choose the best and economic plant, recover the investment within short time.
(3) site inspection
(4) We are responsible for the offer, flow chart, and detail specification of each machinery.
In-Sale services:
(1)Quality control must be inspected strictly
(2)In accordance with the agreements stipulated in the contract
After-sale services:
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.
(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
1. Daily wear and tear 2.mishandling or improper operation3. Incoming power supply fluctuation
4. Consumable and spare parts.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.
